| Prod Model: |
FIR-4KWL. |
| Transmission Way: |
IR & Buttom Control |
| Working Temperature: |
≤85ºC |
| Qty In Carton: |
50 PCS |
| Net Weight: |
0.148 Kg |
| Batteries: |
None |
| Delivery Port: |
Shunde |
| Application: |
Lamp & Fan |
| Signal Transmission: |
IR Remote Control |
| Type: |
Button |
| Certification: |
CCC |
| Universal: |
Universal |
| Transmission Distance: |
<50m |
| Voltage: |
3V |
| Material: |
Plastic |
| Battery Type: |
Button Battery |
Product Description

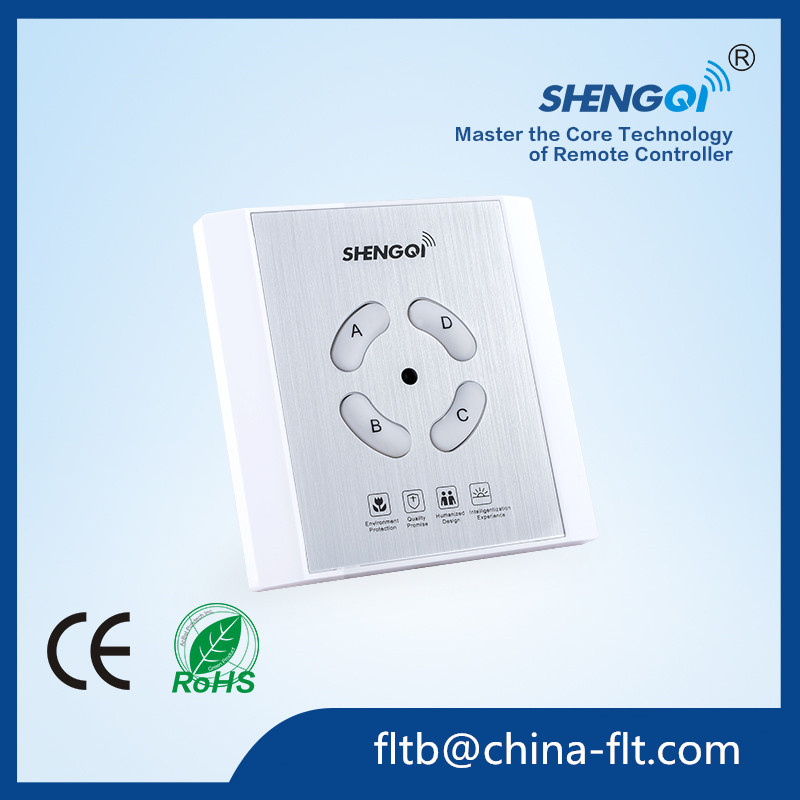

OEM IR Wall Mounted Remote Control with CE
Specification:| Brand Name | SHENGQI |
| Product Name | Infrared Ray Wall Mounted Remote Controller/Receiver |
| Model | FIR-4KWL |
| Channel | 4 or less, according to your requirement. |
| Rated Data | 1000W x4(192V~240V) or 500W x4(110V~130V) |
| Rated Frequency | 50Hz-60Hz for Receiver / 38KHz of Transmitter |
| Learning Function | No. Because no this necessary. One transmitter can control all the receiver in the covered ranger. |
| Remote control distance | About 8 meters |
| Material | ABS Plastic; |
| Warranty | 1 year |
| Unit Packing | Blister Packing |
| Qty per Outer Carton | 50 PCS/Carton |

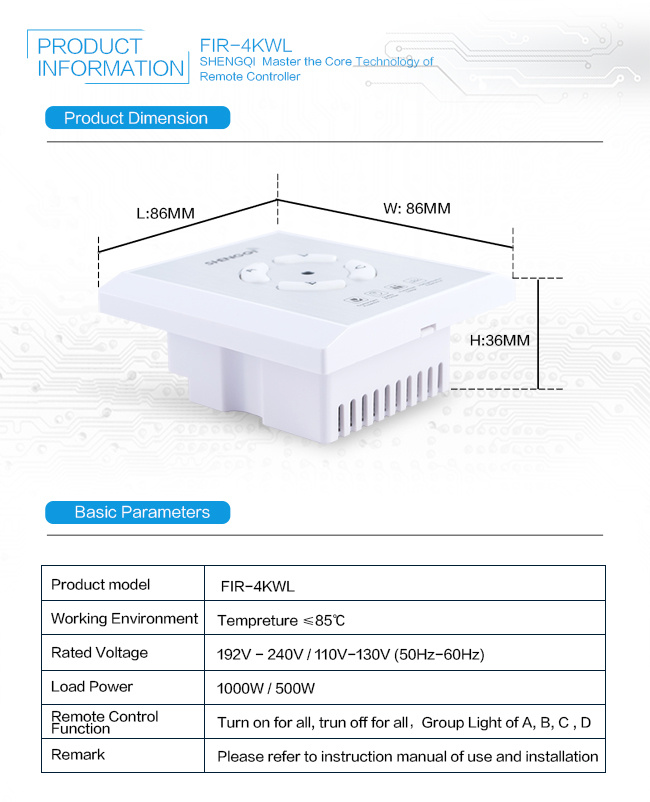

| Size | Approx 86*86*36mm |
| Customized Function | Timer(Delay Off),Scene, Dimmer, fan Speed governor, fan switch etc. |
| Loading Qty in container | 35,200 / 72,950 / 85,500 (20GP/40GP/40HQ) |
All of our product are inspected 100% TWICE at least before delivery.
SHENGQI is Famous in its high quality, low repair rate and beautiful appearance.
Stock: 500pcs with Shengqi Logo.
Stock function: turn off the lights.
For ceilging fan control function need to advise before placing order. A, B, C for speed control HI, MED, LOW, while D for turn off fan and light.
If with Handle, we can have more 2 lights ON/OFF control, and A,B for room light, C for speed adjustment, D to turn on/off in the panel.
Anyway, the function can be customized and up to you.
Package include: Receiver + Instruction Manual + Blister Packing
(For transmitter, pls contact the sales when placing order.)
Features:(1) Wall mounted IR remote control switch, which means it can be used as an receiver as well.
(2) This item can be customized to control 2 channels of lights and 1 channel of fan with speed governor. You can customized 3 speed, 8 speed, 10 speed or more as you wish. Or one button to turn on /off light and fan, the rest 3 buttons for speed control .
(3) Output power:
(AC200V-260V)
Incandescent lamp less1000W
Energy saving lamp less 200W less 6PCS
Fluorescent lamp less 280W less 5PCS
LED less than 300W.
Debug Exam:1) When the transmitter is unable to remotely control the lights and fan lamps, please check whether the batteries are in good contact or fixed properly or they are no power.
2) When the transmitter is unable to remotely control the lights and fan lamps, please check whether there's other transmitter around caused interference or the keys on the other transmitter are pressed down.
3) Please use this product under applicable voltage. Too low voltage will lead to failure of the remote controller to work. (please refer to the product label for the voltage range and related parameters.
4) Please take out the batteries from the transmitter when it won't be used for a long time.
Our Certificates and PatentsCE + ROHS + Design Patent + Utility Patents
FAQ :1.Q: Are you a trading company or manufacture ?
A: As one of the oldest manufactures of remote controllers and receivers, we are now taking the leading position of remote control industry in mainland China. We have about 200 employees with more than 15 engineers and 5 production lines.
2.Q: Do you accept OEM, ODM orders etc.?
A: Yes, we can accept OEM and the emitter's function could be customized as well. And ODM is welcome too. we have professional engineer team to help you with the design of the remote control and providing you the professional suggestion with the remote controllers you want.
3.Q: What's your average leadtime & MOQ?
A: Peak Season need 1 month, while off season is within 15 days.
MOQ:1000pcs, for order qty less than 1000pcs, eg. 100pcs & 500pcs, customer can perfer to pay the extra cost of packing material to finish the order.
4.Q: Can I buy a sample for testing ?
A: Of cause you can and most of them, we have stock in warehouse. After received you payment and address, we can send the sample to you in 3 working day! For customized sample, we need 10days-60days to prepare according to your requirement.
5.Q: Can I visit your factory?
A: We warmly welcome you come to visit us at Foshan City, Guandong Province. Our factory is just 1 hours away from the Guangzhou Air port and 30 minutes away from the Shunde ferry port.
6.Q:Can I be your sole distributor?
A: :If you can sell our products USD5,000 to USD20,000 per month and keep this record not less than 1 year, you could be one of our distributors in your city or area. If you can sell our products worth more than USD50,000 per month keep this record not less than 1 year, you could be our sole distributor in the country.
We are still looking for more distributors, Do you like to join us?
Guangdong FLT Electric Co., Ltd. Established in 2010, is a modern and hi-tech company, specialized in developing, manufacturing and selling Light and fan lamp REMOTE CONTROLLER SWITH, Fan Motor etc.
With the support of a large number of experienced experts and R&D engineers in this field, effective quality managements, Guangdong FLT Electric Co., Ltd. is able to provide products more close to the market, and more durable.
Factory now covers an area of over 3000 square meters and its production capacity is already over 200 thousands sets per month. Certificates are including CE, RoHS, while UL, CB, PSB are proceeding. Currently, the products of Shengqi are all over the world and become more and more popular.
