| Prod Model: |

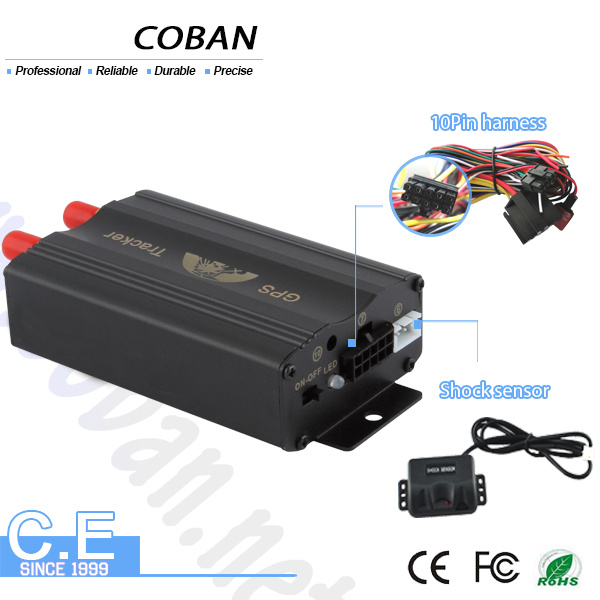

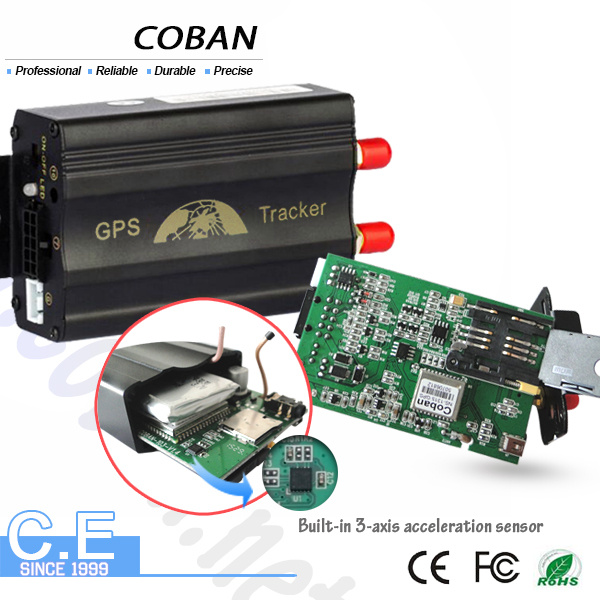

CAR GPS tracker TK103 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Feature: |
Engine Shut, Real Time Tracking, Fuel Monitor |
| Weight: |
120g Car GPS Tracker |
| Application: |
for Car/Vehicle GPS Tracking |
| Tracking Solutions: |
SMS, GPRS Web Platform, Android Ios APP Tracking |
| Warranty Time: |
12 Months Coban GPS Tracker |
| Certificates: |
Ce FCC |
| Sshut Down Engine: |
by SMS GPRS |
| Arm Alarm: |
Acc, Door Open Alarm and Optional Shock Sensor |
| GPRS Web Platform Tracking: |
with Real Time Google Map |
| Type: |
GPS Tracker |
| Use: |
Automotive |
| Carrier Frequency: |
Dual-Frequency |
| Screen Size: |
No Screen |
| Operating Principle: |
GPS Satellite Positioning and Data Transmit by GSM |
| Port Number: |
20 |
| Model: |
103 |
| Brand: |
Baanool GPS Tracker |
| Chip: |
No |
| Certification: |
ISO9001 |
Product Description
OEM ODM Car GPS Tracker with Real Time Ios Android APP Tracking Tk103
GPS103 Features and Functions:1. Realtime google maps.
2. SOS button; Geo-fence; Movement alert; Over speed alert;
3. Low battery alert; Power off alert;
4. Door open/ACC/shock alert.
5. Remotely shut down engine by SMS.6. Show current location with google map link on mobile phone.
7. Get absolute location with street name.
8. Support 2GB TF card to store/upload data.
9. Support fuel sensor.
10. Track by mobile phone/computer/website platform.
Four tracking solutions:- SMS tracking by calling, return google map link
- Absolute street address by SMS
-android IOS app tracking
- Optional web server www.gpstrackerxy.com(user id demo ,password 8888)
Applying directions:Vehicle fleet/logistics/Vehicle rental
Standard Package Content:1 X GPS unit
1 X GPS Antenna
1 X GSM Antenna
1 X MIC
1 X Harness
1 X Relay(12V)
1 X Manual
car gps tracker TK103 with shock sensor alarm
GPS Tracker for car/vehicle/truck TK103A
Warranty1. All products have been strictly Quality Checked in house before packing.
2. All products have been well packed before shipping.
3. One year warranty is provided for all models. We will bear maintenance cost during warranty.
Delivery1. Sample and small order will be delivered within 2-3 working days after the receipt of payment.
2. For order over 500PCS or customized order, lead time will be 5-7 days after the receipt of payment. Please contact our sales to make sure the current inventory.
CAR GPS Tracker Specifications| Content | specifications |
| DIM. | 83*54*26mm |
| Weight | 120g |
| Network | GSM/GPRS |
| Band | 850/900/1800/1900Mhz |
| GSM/GPRS Module | SIM900B |
| GPS Module | SIRF3 chip |
| GPS Sensitivity | -159dBm |
| GPS Accuracy | 5m |
| GPS Start time | Cold status 45s
Warm status 35s
Hot status 1s |
| Voltage of car power system | 12 V -24V
|
| Backup battery | Chargeable changeable 3.7V 800mAh Li-ion battery |
| Storage Temp. | -40° C to +85° C |
| Operation Temp. | -20° C to +65° C |
| Humidity | 5%--95% non-condensing |

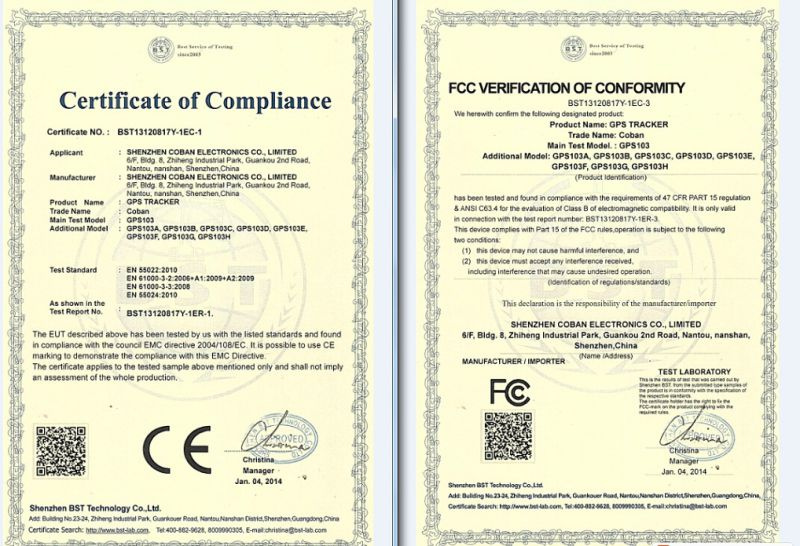

Car GPS Tracker TK103 certificate
FAQ - Frequently Asked QuestionsHow do I make sense of the longitude and latitude data this unit provides?Both Google Maps and Google Earth can easily translate the data into usable visual information.The unit does not pick up a GSM signal and the SMS functions aren't working,What's wrong? A number of things could cause this to happen:1) Make sure the SIM card is compatible (only 2G, 2.5G, 2.75G SIM cards work2) Make sure there is money left on the SIM card and that it has not expired3) Make sure there is no PIN code associated with the SIM card4) Make sure roaming is enabled on your SIM account if you are in a different countryCan I install the software on multiple computers?No. Each tracker's IMEI number is unique and can only be used to setup the software on one computer once and ONLY ONCE, which means you can only use the software on that computer exclusively after successfully set it up. This is due to the security requirements of the software and the product.Ordering from Shenzhen Coban Electronics Co, . Ltd provides you with the following benefits:- Orders processed and shipped within 24-hours- 12 month warranty- In-house QC- Member discounts- Award winning customer support- Quantity order discounts- Worldwide Shipping Contact Details
Shenzhen Coban Electronics Co., Ltd ( GPS Tracker Manufacturer)
More details including E-user manual,photos will be sent after receive your inquiry Attn:Winni Zhou
