OEM Piezo-Resistive Ceramic Water Pressure Sensor 4-20mA
| Price: |
US $ 20-200/Piece |
| Trade Terms: |
FOB,CFR,CIF |
| Min Order: |
2/Piece |
| Pay Type: |
L/C,T/T,D/P,Western Union,Paypal |
| Prod Model: |
TPZ1100 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Measuring Range: |
0~5...50bar |
| Overload: |
1.5 Times of Full Scales |
| Accuracy: |
1%Fs |
| Power Supply: |
4.5~5.5V DC (5~20V DC as Required) |
| Output Mode: |
2-Wire or 3-Wire |
| Electrical Connection: |
Hirschmann/Packard/Cable Connection |
| Weight: |
45g |
| Application: |
Air Conditioner, Automobile, Compressor, etc |
| Class Of Protection: |
IP67 |
| Certificate: |
CE, Ex Approved |
Product Description
Tosilon OEM Piezo-resistive Ceramic Water Pressure Sensor 4-20mA (CE, Ex Approved)Design and Manufacturing According to CE StandardIntroduction
Tosilon TPZ series Pressure Transmitter is especially designed for the application of Compressor, Automobile, Air Conditioner, etc. The pressure cores and the chip are imported from German. Equipped with the advanced production lines and supported by the advanced technology of adjustment and digital compensation, TPZ series Transmitter has acquired RoHS and CE certificate.
Features· Full stainless steel construction;
· Thread connection optional;
· Electric connection optional;
· Constant current supply;
· Ceramic core and cell imported from German;
· Multiple alternative for Pressure Port;

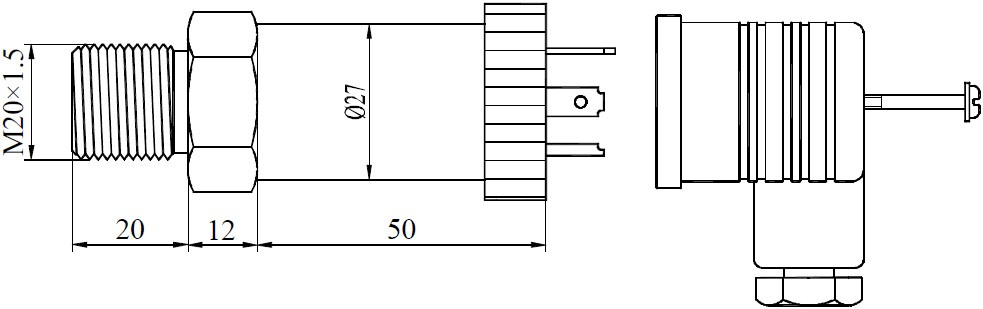

· CE approvedOutline Structure
Performance Parameters (For Details, please contact Tosilon)Measuring Range Overload0~5...50bar 1.5 times of full scalesAccuracy (Nonlinear +Repeatability+ Hysteresis)±1% F. S, ±0.5% F. S
Type of Transmission Power Supply
2-wire 3-wire 10~30V DC 10~30V DC
Output Insulation
4~20mA DC 0.5~4.5V DC (U-10)/0.02(Ω) >100kΩResponse time Vibration / Shock<10ms (0...99%) 10g/52000HzX/Y/ZAxis/20g 11msElectrical connection Wetted Parts & ShellHirschmann/Packard/Water-Proof Joint stainless steel 1Cr18Ni9Ti, or brassElectromagnetic Transmit Electromagnetic SensitivityEN50081-1/-2 EN50082-2Process ConnectionG1/4"(Fluorine rubber Seal), 3/8"-24UNF-2A, 7/16"-20UN or M12×1.25 others on request
Weight Class of Protection45g IP67 For more information, please contact Tosilon
Your Global Partner for Automation
www.tosilon.COM
| Item | Description | Remark |
| Pressure Range | 0~0.2MPa......60MPa | |
| Overpressure | 2F.S | |
| Accuracy | ±0.5%F.S | |
| Stability | 0.25%F.S Max. 0.4%F.S | |
Working Temp.
(Degrees Celsius) | -40~85 | |
Temp. Compensation
(Degrees Celsius) | -10~70 | |
| Media | Compatible with 1Cr18Ni9Ti | |
| Transmission Type | 2-wire | 3-wire | |
| Output | 4-20mA DC | 0~5V DC | 1-5V DC | 0.5~4.5V DC | 0~10V DC | |
| Power Supply | 10~30V DC | 8~30V DC | 5V(ratio) | 11~30Vdc | |
| Load Resistance | (U-10)/0.02(Ω) | >20kΩ | |
| Insulation | >100M Ω@50V | |
| Vibration / Shock | 10g/5~2000Hz, axes X/Y/Z20g sine 11ms | |
| Range of Display | -9999~99999@TPZ200C | |
| Electrical Connection | Water-proof Cable, IP65 | |
| Pressure Port | M20×1.5,G1/2,R1/4,NPT1/2 | |
| Pressure Type | Gauge, Sealed Gauge, Absolute | Response Time: 10ms | |
| electromagnetic compatibility | electromagnetic emission | Electromagnetic Sensitivity | |
| EN50081-1/-2 | EN50082-2
|
As a China leading mass flowmeter manufacture, Tosilon Automation, establish in 1989, has been engaged in and leads the advanced technology in Coriolis Mass Flow Meter, Density Meter and Flow Metering System which are more effective, efficient and innovate.
In the past 20 years, by cooperating with Northwestern Polytechnical University, Huazhong University of Science and Technology, Xi'an Shiyou University and CSIC Xi'an Dong Yi Science Technology & Industry Group Co., Ltd, financially supported by Provincial Science Technology Program, numbers of achievements and breakthroughs had been made in product-design and production process.
As a leading company in industrial measuring field in China, Tosilon offers complete solutions to flow, density, level, pressure, explosion protection, oil condition monitoring systems, etc. Presently, Tosilon's instrumentation has acquired certifications including CE, FCC, IECEx, ATEX. By years of efforts in improving and modifying, Tosilon has its featured products professionalized to meet the needs from major industries covering Oil & Gas Industry, Petrochemical Industry, Chemical Industry, Mineral Industry, Food Industry, Wine Industry, Paper Making, Power Plant, Drilling Mud Field, Pharmaceutical Industry, aviation, etc. Tosilon is always committed to the innovation and improvements in the technology, providing advanced products, solutions, and offering professional services to clients.
Mission & Vision
Tosilon will always be in pursuit of providing professional and technical services in density and flow management with innovation and extensive research, full of energy to welcome the challenges and pressures from various industries, providing the most reliable, flexible, affordable and advanced equipment.
Tosilon will always be studying client's needs, offering specific solutions and have them integrated to your demand in process control.
Prospects
Establishing & Consolidating long-term partnership with clients Bring Convenience & Benefits to clients by offering qualified instrumentation & services
Why Choose Tosilon?
Matured Core-Technology
Advanced Production Line
Qualified Production Management
Professional Technical Support
Specialized in Specific Process Control
On-Time Delivery
Qualified After-Sale Service
