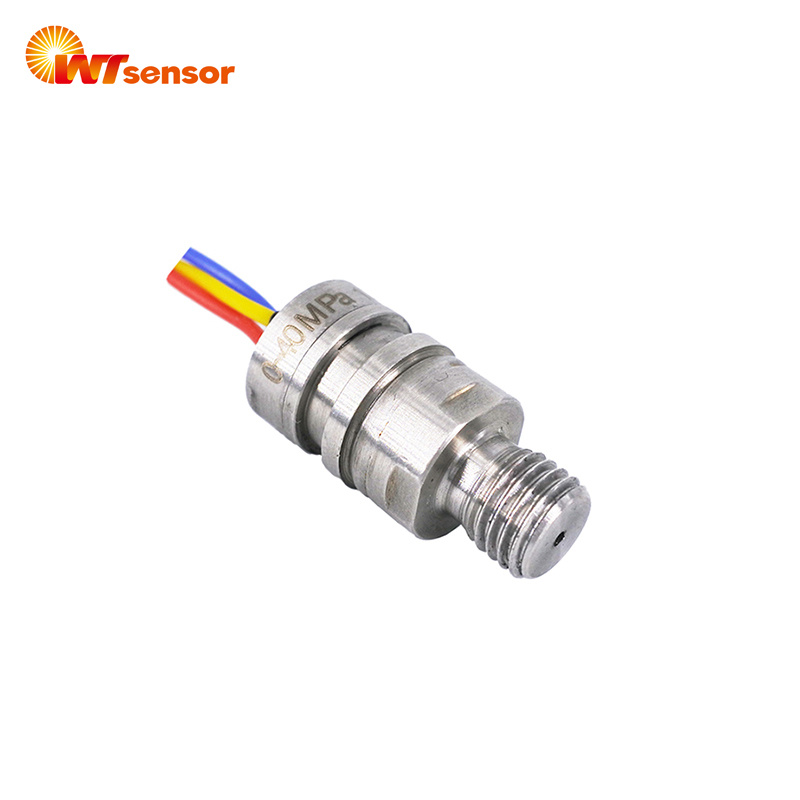

OEM Silicon Pressure Sensor/Transducer for Fireman

OEM Silicon Pressure Sensor/Transducer for Fireman
Price: Negotiable/Piece
Min Order: 10/Piece
Pay Type: T/T,Western Union
Prod Model: PC13III
Pressure Range: 40MPa
Pressure Reference: Sealed Gauge Pressure
Zero Output: ±1mv
Span Output: ≥29.5mv
Excitation: 2.1VDC±0.002VDC
Compensated Temp.: -30ºC~70ºC
Insulation Resistance: ≥200mΩ/250VDC
Temp. Drift: ±0.8%F.S. (@ -30ºC~70ºC)
Housing Material: 316L
Diaphragm Material: 316L

Product Description

PC13 III sensor for fireman is an OEM pressure measuring element that adopts stainless steel corrugated diaphragm for isolation. The product is designed in all solid structure, with high proof pressure, good stability and reliability. It is especially applicable to the measurement of medium with high pressure. A high sensitivity silicon pressure chip is employed in the sensor. Pressure sensitive components are automatically tested by computer. Constant voltage compensating board is provided for zero correction and temperature compensation.


Pressure range

Pressure range40MPa
Pressure referenceSealed gauge pressure
Output signal

Zero output±1mV
Span output29.5mV
Specification

Excitation2.1VDC±0.002VDC
Compensated temp.-30ºC~70ºC
Nonlinearity±0.25%F.S.
Insulation resistance200MΩ/250VDC
Zero temp. coefficient±0.8%F.S. (@ -30ºC~70ºC)
Span temp. coefficient±0.8%F.S. (@ -30ºC~70ºC)
Housing and diaphragm                                    Stainless steel 316L

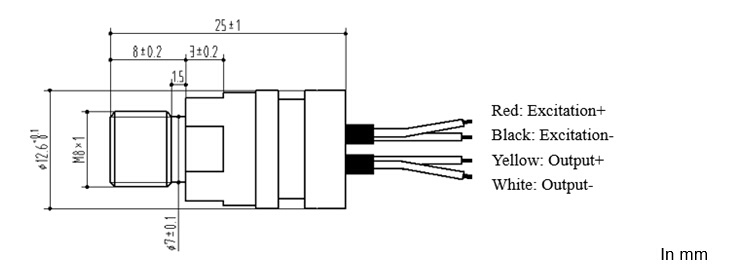

Drawing
