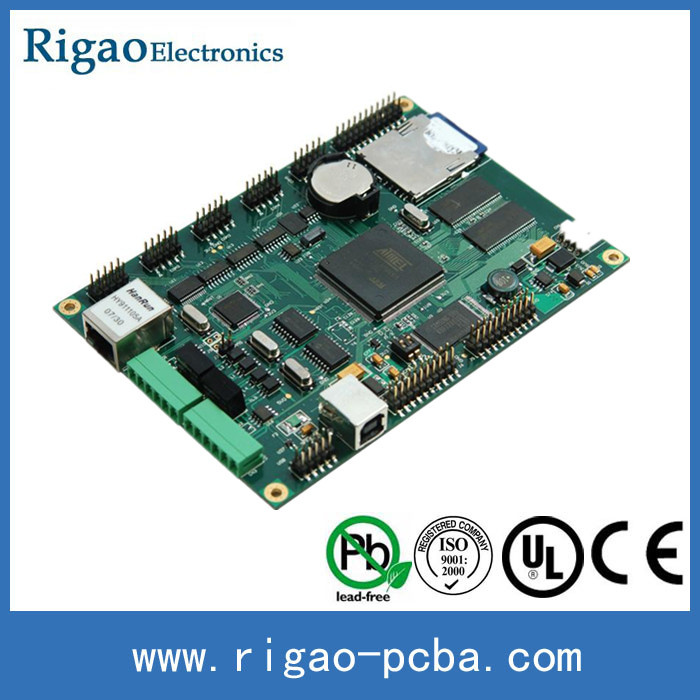

| Prod Model: |
Rigao P06 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Layer: |
1-22 L |
| Type Of Assembly: |
SMT and Thru-Hole |
| Type Of Service: |
Urn-Key, Partial Turn-Key or Consignment |
| File Formats: |
Bom, Gerber, Pick-N-Place File (Xyrs) |
| Components: |
Leadlesschip Carriers/Csp;BGA Repair... |
| Component Packaging: |
Cut Tape, Tube, Reels, Loose Parts |
| Quantity: |
No MOQ |
| Testing: |
X-ray Inspection & Aoi Test |
| Copper Thickness: |
Outer Layer:1oz~6oz Inner Layer:Hoz~5oz |
| Min. Line Width/Space: |
4/4mil(0.1/0.1mm) |
| Metal Coating: |
Copper |
| Mode Of Production: |
SMT |
| Base Material: |
FR-4 |
| Certification: |
SGS |
| Customized: |
Customized |
| Condition: |
New |
Product Description
Detailed Specification
1Layer1-22 layer
2MaterialFR4, CEM1, Aluminium Base, Cooper Base, High frequency material,
Thick copper foil, 94-V0 (HB), PI Material, Roger, High TG: SL S1000-2, ITEQ: IT180.
3Board thickness0.2mm-7mm
4Max. Finished board side610mm*1200mm
5Min. Drilled hole size0.25mm
6Min. Line width0.075mm(3mil)
7Min. Line spaceing0.075mm(3mil)
8Surface finish/treatmentHASL, HASL lead free, OSP, Immersion tin, Immersion Gold,
Immersion Silver/Gold Finger, Gold Plating, Selective OSP Immersion Gold
9Copper thickness0.5-4.0oz
10Solder mask colorgreen/black/white/red/blue/yellow
11Inner packingVacuum packing, Plastic bag
12Outer packingStandard carton packing
13Hole tolerancePTH: ± 0.076, NTPH: ± 0.05
14Profiling PunchingRouting, V-CUT, Beveling
15Assembly ServiceProviding OEM service to all sorts of printed circuit board
| Material | Aluminum base |
| Final Thickness | 0.02" - 0.18" (0.5mm- 4.6mm) tg130° - tg170° |
| Surface Treatment | Regular Lead: HASL Lead-free: Lead-free HASL;ENG Gold; OSP, Immersion silver |
| Min/Max Board Size | Min: 0.2"x0.2"/Max: 43.3"x19" |
Min Trace width/
Min Clearance | 0.5oz: 4/4mil;1oz: 5/5mil;2oz: 5/7mil;3oz: 7/8mil;4oz: 10/10mil |
| Min Hole Ring | 0.5oz: 4mil;1oz: 5mil;2oz: 7mil;3oz: 10mil;4oz: 16mil |
| Copper Thickness | 0.5oz- 4oz |
| Min Hole size&Tolerance | Min hole:30mil(Final Thickness 0.5mm-2.0mm);45mil(Final Thickness 2.0mm-4.6mm) |
| Tolerance: PTH±4mil, NPTH±3mil |
| Thickness of Plating Layer | HASL: |
| Copper Thickness: 20um- 35um | Tin: 5- 20um |
| Immersion Gold:Nickel: |
| 100u"- 200 u" | Gold: 2u"- 4u" |
| Hard Plated Gold: |
| Nickel: 100u"- 200 u" | Gold: 4u"- 8u" |
| Golden Finger:Nickel: |
| 100u"- 200 u" | Gold: 5u"- 15u" |
| Immersion Silver: 6u"- 12u";OSP: Film 8u"- 20u" |
| Solder Mask Color | Glossy: Green, Black, Red, Yellow, White, Purple, Blue;Matt: Green, Black |
| Solder Mask Resolution | Solder Mask Thickness: | 0.2mil- 1.6mil |
| Solder Dam: | Green 4mil/Other Color 5mil |
| Solder Mask Hole Plug Diameter: | 10mil- 25mil |
| Silk Screen Color | White, Black |
| Silk Screen Size | Min Width: 5mil; Height: 24mil |
| Testing Voltage | Testing Fixture: 50V- 300V | Flying Probe: 30V- 250V |
| Profile | CNC Tol: ±5mil | Slot Min: 40mil |
| V- CUT Tol: ±5mil | Angel: 15°, 20°, 30°, 45°, 60° |
| Accept Standard | IPC Class 2; IPC Class 3; ISO9000 |
FAQ:
1. Can I have a sample order?
Yes, welcome sample order to test and check quality.
2. What about the lead time?
Sample needs 3-5 working days, mass production time needs 7-12 working days.
3. How many years for warranty?
2-3 years, depends on product series.
Quotation needs:
1.if you have Gerber file, samples, picture are ok.
2.if not, you can list your request for us. For example,
(1) led chip brand, size, amount, lumen, CRI, CCT, Warranty, lifetime.
(2) Aluminum base chickness, copper thickness, board's size, silkscreen.
(3) led light power, voltage.
If you have any question need my help, pls contact me.
Shenzhen Rigao Electronics Co., Ltd. is a newly company which founded in 2008. At beginning we were only focus on manufacturing Printed Circuit Boards. But now we has become a rapidly growing worldwide provider of solutions in three principal areas Printed Circuit Boards, PCB Assembly and Components Procurement. We are dedicated to building solid partnerships and providing flexible solutions to enable our customer's success.
As an experienced PCB and PCBA manufacturer, we provide prototypes, small volume, medium volume, and high volume projects. We are able to guarantee a complete service with comprehensive technical backup, offering acost advantage and scheduled delivery.
Our main services include offering
Rigid PCB (up to 64 Layers)
Flexible PCB/FPC (1~6 Layers)
Rigid-Flex (3~18 Layers)
Aluminum-based PCB (1~6 Layers)
High Density Interconnection/HDI PCB
High frequency material PCB
DIP, COB, SMT assembly Services
Components Sourcing
We have since successfully completed over 5, 500 projects and have nearly 300 satisfied repeat customers. Our customers are from over 30 countries in various industries, including computer, home appliances, consumer products, telecom, scientific research institutes, etc.
Our manufacturing and quality control processes are ISO 9001: 2000 certified and conform to IPC-A600(PCB) and IPC-A610 (PCB Assembly) standards. All our PCB/PCBA are UL certified and RoHS compliant.
Our Principle is simple, "Act by heart, Make the best. "
Our strength is distinct, "Years of experiences in PCB and PCBA field"
Our Goal is achievable, "To be the most reliable supplier of PCB and PCBA. "
Our orientation is clear, "Focus on prototypes and low to medium volume business "
Your trust and support would be a solid back-up for our business. We sincerely hope to provide you with high-quality products and satisfactory services.
We are look forward to working with you!
