| Prod Model: |

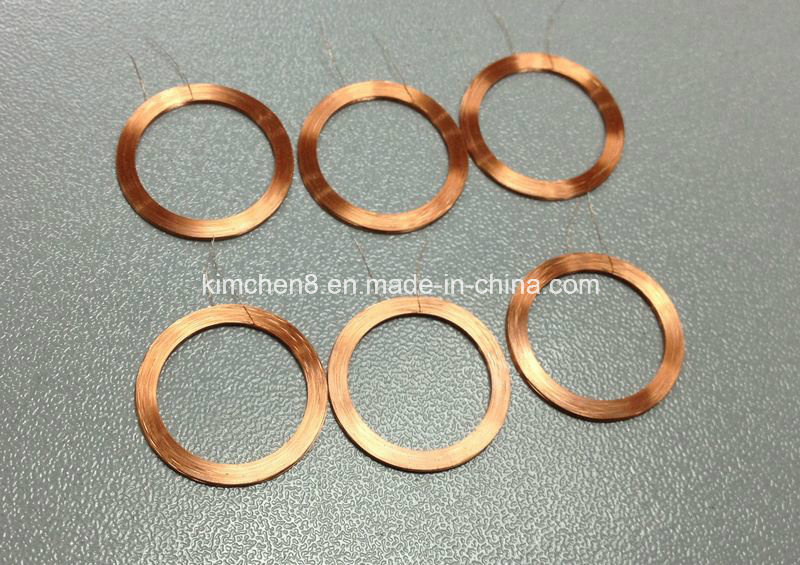

Inductance coil |
| Markets: |
North America,South America,Eastern Europe,Africa,Eastern Asia,Western Europe |
| Od: |
18.5mm15.0 |
| ID: |
19.0mm |
| Thickness: |
0.8h |
| Turns: |
334t |
| Wire Dia: |
0.06mm |
| Material Of Wire: |
Adhesive Copper Wire |
| Inductance: |
3.2uh |
| Apply: |
IC/ID Card |
| Type: |
Choke Inductor |
| Structure: |
Mutual Inductor |
| Brand: |
Jz |
Product Description
| 1 | Type | Inductance coil |
| 2 | OD | 15.0mm |
| 3 | ID | 19.0mm |
| 4 | Thinkness | 0.8H |
| 5 | Turns | 334T |
| 6 | Wire dia | 0.06mm |
| 7 | Material of wire | adhesive copper wire |
| 8 | Inductance | 3.2uh |
| 9 | Apply | IC/ID card |
Kim Chen is the professional inductor coils manufacturer in Dongguan China specialised in the industry for more than 10 years.
Our main products are: Tx-coil /Rx-coil for wireless charger, Inductor coil, toy coil, RFID antenna coil, ICR-Coil for camera, Coin collector coil,IC/ID card coil.Card Reader Coil,VCM coil, etc. Features:
1. Winding with self-bonding wire
2. Winding different shapes as per your inquiry
3. Meet your inquired inductance and resistance
4. Windings are bond by a strong adhesive
Primary advantage:
1. Professional engineer.
2. Good after-sale service.
3.Qualified material and competative price.
4.Winding with self-bonding wire.
5.Winding different shapes at your request.
6.Meet your inquried inductance and resistance.
7.Windings are bonded by a strong adhesive.
8. RoHS, SGS, compliant.
FAQ
1.Question: What are your main products?
Answer: Our main products are: Tx-coil /Rx-coil for wireless charger, Inductor coil,
toy coil, RFID antenna coil, IR-Coil for camera, Coin collector coil,
IC/ID card coil, Card Reader coil ,VCM coil, Voice coil etc.
2.Question: Could I get free samples for testing?
Answer: We have diffrent types of transmitter coils ready as sample for you.
3.Question: How to make the samples ?
Answer: Supply drawing is the best,or tell us the size,inductance,resistance and etc.
4.Question: Lead time for samples?
Answer: 1-3 working days
5.Question: Lead time for mass production?
Answer: 7 to 15 working days or depending on order quantity.
6.Question: What are the payment term?
Answer: T/T,Western Union,Paypal or negotiation.
Customer specification,drawing and samples are welcome!
Any question,pls feel free to contact us!
KIM CHEN INDUSTRY INTL LIMITED was founded in 2001, It is located in Dongguan City.
We specialized in the manufacture and RD of the component which is used in coil of wire and tension systems, textile machinery and electrical industry Precision Ceramics, automatic lathe products, precision machining manufacturing and water jet technology. Our company has more than 100 employees, of which nearly 20 technical staff.
With a strong technical force, professional processing equipment, we devote ourselves and development of the component which is used in coil of wire. We have accumulated rich processing experience in the Deep-processing of the super-hard alloy, Crystal Gem and Precision Ceramic. Our technology is improving day by day...We can be tailored to customer specifications of the various nozzles. Various products have been widely used in various types of electronics, machinery, textile and other equipment, its excellent performance and the reliable quality has fully met the international standards; One of the parts of precision grinding technology and quality standards even more than the international peer level.
After a few years development of the coil winding tension system and the production of the two series of 10multiple specifications tensioner, after the listing of products, we gain customer recognition with an annual output-5, 000 sets. At the same time we are exploring the development of new industrial categories, through the introduction of advanced international machine tool equipment, we have a certain production scale in the field of automatic lathe products, therefore we have the ability to undertake all types of non-standard nut (column), posts and large quantities of shaft processing with the stable and reliable product quality.
We manufacture only No Lead Green Products to protect our environment in order to fulfill our moral responsibility as a member of this earth.
We always adhere to quality first, technology first, service first, customer first to pragmatic, scientific management, innovation and integrity, excellence, management philosophy. The company not only selling products all over the country and exported to Southeast Asia, the Middle East, Europe and more than 20 countries and regions. In the companys leadership and staff of the joint efforts of the rapid development of the gold honesty KIM CHEN INDUSTRY INTL LIMITED. Sincerely hope to strong technical advantage, advanced management, quality performance and perfect after-sales service and work closely with customers home and abroad hand in hand, create brilliant future!
Continuous Development and Conscious Operation is our long term goal. We hope to develop properous collaboration with you in the future.
