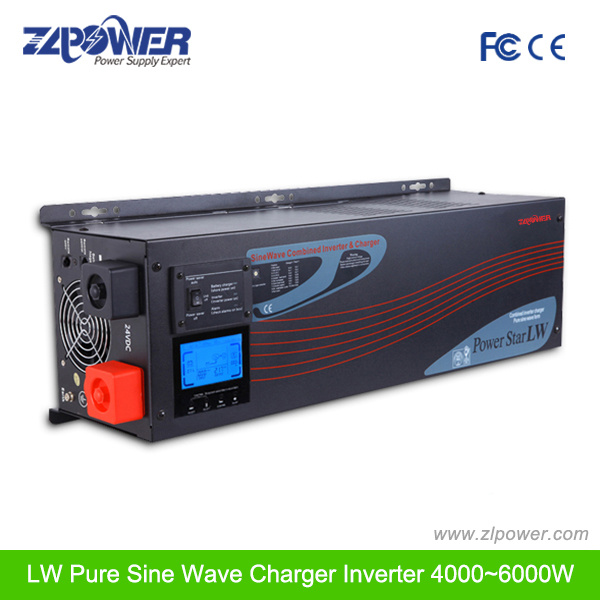

off Grid 5000W 24/48V Pure Sine Wave Inverter with Charger, CE Approved
| Price: |
US $ 435/Piece |
| Trade Terms: |
FOB,CFR,CIF |
| Min Order: |
1/Piece |
| Pay Type: |
T/T,Western Union,Money Gram |
| Prod Model: |
LW series 500w to 8000w |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Solar Inverter: |
5000W DC |
| Peak Power: |
3 Times of Rating Power |
| DC Input Voltage: |
24/48V |
| Power Factor: |
0.9-1.0 |
| Inverter Charger: |
35AMP/70AMP AC Charger |
| Nominal Voltage: |
110-130/220-240VAC |
| Display: |
LCD/LED Display |
| Protection: |
Over Load, Over Temp, Over Charge |
| Frequency: |
50/60Hz |
Product Description
Off Grid 5000W 24/48V Pure Sine Wave Inverter With Charger, CE ApprovedPURE SINE WAVE INVERTER1. Max 70/90A charge current
2. LED/LCD display. 3 times surge power, transformer basis
3. CE certificate
ApplicationLW Pure sine wave inverter charger 5000W.LED/LCD digital display, low frequency type with transformer,UPS function. It widely used in wind generator,solar power system,house,vehicle,ship,navigation and places where lack of city power,mobile electricity work and telecommunications device,launch Station.
Main Features1. 5000w single phase pure sine wave inverter with charger, for sensitive load,
2. With CE&ISO certificates
3. 110/120/130vac or 220/230/240vac input and output
4 24vdc or 48vdc battery voltage
5. 60 or 50hz frequency
6. 3 times of rating power
7. LED and LCD display
8. Power factor is from 0.9 to 1.0
9. Max charger current: 20/35/50/75/90a
10. Communications: RS232/USB/SNMP(cusom-made)
11. Protection against: over load,over temperature,over charging,low battery
Pictures
| Solar inverter 6000w Product Series | LW1000 | LW2000 | LW3000 | LW4000 | LW5000 | LW6000 |
| General Specification | Input Wave form | Sine wave (Utility or Generator) |
| Nominal voltage | 120VAC | 230VAC |
| Low voltage trip | 90v + 4% | 184v/154v + 4% |
| Low voltage reconnect | 100v + 4% | 194v/164v + 4% |
| High voltage trip | 140v + 4% | 253v + 4% |
| High voltage reconnect | 135v + 4% | 243v + 4% |
| Max input AC voltage | 150VAC | 270VAC |
| Nominal input frequency | 50Hz or 60Hz (Auto detect) |
| Low freq trip | 47Hz for 50Hz, 57Hz for 60Hz |
| High freq trip | 55Hz for 50Hz, 65Hz for 60Hz |
| Output wave form | (Bypass mode) same as input |
| Overload protection | Circuit breaker |
| Short circuit protection | Circuit breaker |
| Transfer switch rating | 30amp or 40amp |
| Efficiency on line transfer time | 95%+ |
| Line transfer time | 10ms Typical |
| Bypass without battery connected | yes |
| Max bypass current | 30amp or 40amp |
| Bypass overload current | 35amp or 45amp: Alarm |
| Inverter Specification Output | Output wave form | Pure sine wave |
| Output continuous power watts | 1000 | 2000 | 3000 | 4000 | 5000 | 6000 |
| Output continuous power VA | 1000 | 2000 | 3000 | 4000 | 5000 | 6000 |
| Power factor | 0.9-1.0 |
| Nominal output voltage rms | 120/230VAC |
| Output voltage regulation | 10% rms |
| Output frequency | 50Hz + 0.3Hz or 60Hz + 0.3Hz |
| Nominal efficiency | >88% |
| Surge ratings | 3000 | 6000 | 9000 | 12000 | 15000 | 18000 |
| Short circuit protection | Yes, fault after 10 seconds |
| Inverter Specification Input | Nominal input voltage | 12V | 24V | 48V |
| Minimum start voltage | 10V | 20V | 40V |
| Low battery alarm | 10.5V | 21V | 42V |
| Low battery trip | 10V | 20V | 40V |
| High voltage alram | 16V | 32V | 64V |
| Power saver | Below 25watts when enabled |
| Power saver | Same switched on/off on remote |
| Charge Mode Specification | Input voltage range | 95-127VAC | 194-243VAC/ 164-243VAC(W) |
| Output voltage range | Dependent on battery type |
| Charge current | 35A/70A |
| Battery initial voltage for start up | 0-15.7v for 12v (*2 for 24v; *4 for 48v) |
| Over charge protection shutdown | 15.7v for 12v (*2 for 24v; *4 for 48v) |
| Others | Remote control/RS232/USB | Yes, Optional |
| Size: in mm | 1000/2000/3000 Model: 442*218*179 |
| | 4000/5000/6000 Model: 598*218*179 |
| Net weight | LW1000 | LW2000 | LW3000 | LW4000 | LW5000 | LW6000 |
| | 18kgs | 20kgs | 22kgs | 35gs | 38kgs | 40kgs |
