Shandong Bo Yu Boiler Co., Ltd. >> off Grid Inverter with Charging Controller All in One

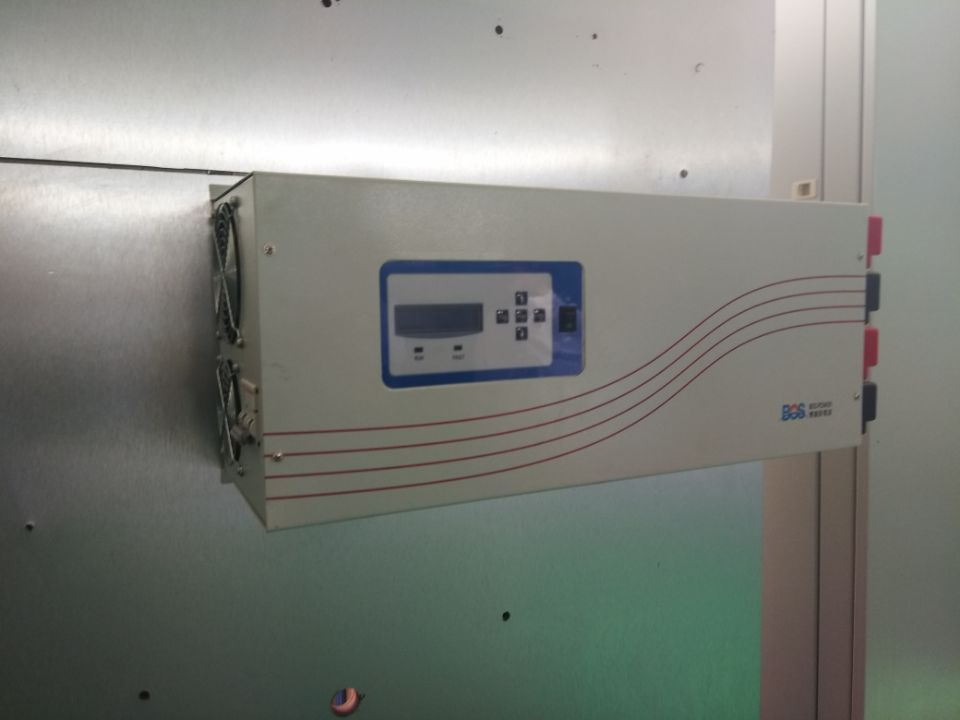

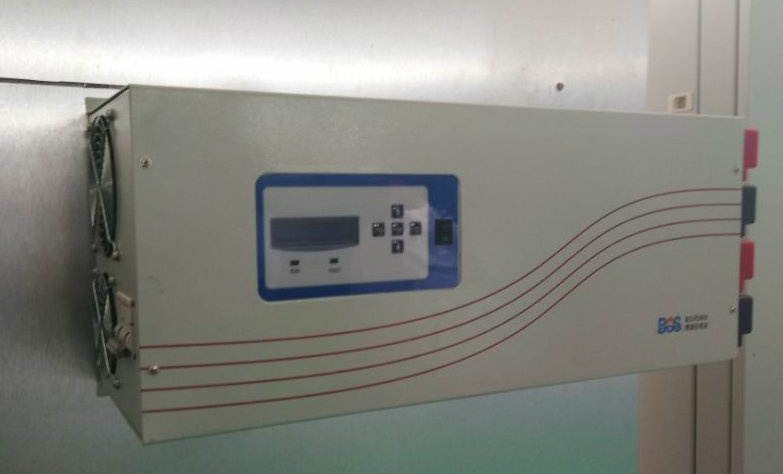

off Grid Inverter with Charging Controller All in One

off Grid Inverter with Charging Controller All in One
Price: US $ 520/Piece
Min Order: 1/Piece
Pay Type: T/T,Western Union,Paypal
Contact Supplier
Showroom Product Company Profile
Prod Model: BYC-5KW

Product Description

PV off grid inverter with charging controller all in one

Features:
1,One device with integrated charge and discharge control and inverter conversion function, cost-effective, beautiful appearance, low noise, electromagnetic interference, use environment for families.
2, With isolation transformer, much more safe.16 digital signal processing chip, the system is a powerful, high reliability.
3,System uses isolated power supply,anti-interference ability.
4,Design of inverter with controller,low frequency isolation,solve the problem of non-resistive load inrush.
5,Environmental adaptability, available at high altitude, the natural environment applications.
6,With anti-DC input, output short circuit, overload, DC over, under-voltage, overheating, lightning protection function.
7,Battery over-voltage, under voltage recovery automatically after the restart, to meet the requirements of unattended.
8,"Point-type" control method, allows PV modules to maximize battery charge, the efficiency is greatly improved.
9.Adaptability of the load, fully meet the household power supply.
Technical Parameter:
ModelBSC48-5000
Inverter
Rated power (W)5000w
Permitted AC input current(Vac)220±15%
DC input rated voltage (Vdc)48
DC voltage range (Vdc)42~80
DC under-voltage
protection point (Vdc)		42
DC over-voltage
protection point (Vdc)		80
Output waveformSine wave
Output voltage accuracyAC220V±3%
Output frequency accuracy50Hz±0.2
Rated output current (A)16.64
Output waveform
distortion rate(THD)		≤3%(Linear load)
Dynamic response (load0~100%)5%,≤30ms
Power factor(PF)0.8
Inverter efficiency
(80% resistive load)		>82%
Overload120%,60s
Inverter protectionBattery under-voltage protection, battery over-voltage protection, output overload protection, overheat protection, lightning protection
Controller
Maximum open
circuit voltage (Vdc)		100
The maximum
charging current (A)		100A
Battery under-voltage
protection point (Vdc)		42
Battery under-voltage
recovery point (Vdc)		48
Battery over-voltage
protection point (Vdc)		58
Battery over-voltage
recovery point (Vdc)		54
Rated efficiency≥95%
Work environment
Using condition temperature-25°C~+50°C
Humidity<90% no condensing
Altitude<5000m(when over 1000 meters according to GB/T3859.2 reduce the using amount)
Insulation strength
(input and output)		1500VAC,1minute
Noise (1meter)≤40dB
Size:(W*D*H)mm600*200*250mm
Our company supplies different kinds of products. High quality and favorable price. We're pleased to get your Inquiry and we will come back to as soon as possible. We stick to the principle of "quality first, service first, continuous improvement and innovation to meet the customers" for the management and "zero defect, zero complaints" as the quality objective. To perfect our service, we provide the products with good quality at the reasonable price.
