| Prod Model: |
IG3115CL 1-10KVA |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Product Name: |
Low Frequency Power Inverter |
| Capacity: |
1-12kw |
| Wave Form: |
Pure Sine Wave |
| Application: |
Home Appliances |
| Output Frequency: |
50Hz/60Hz |
| Nominal Voltage: |
230VAC (120VAC Optional) |
| Color: |
Black |
| Size(W*D*H): |
598*218*179mm |
| Weight(Kg): G.W: |
16~40kg |
| AC Charger: |
Yes |

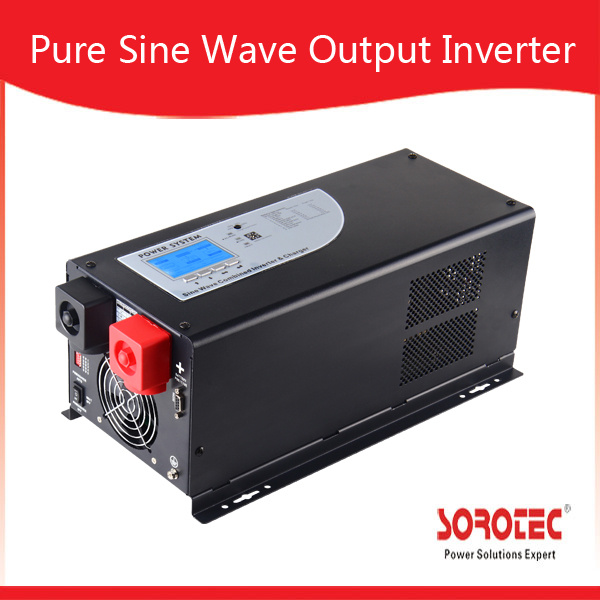

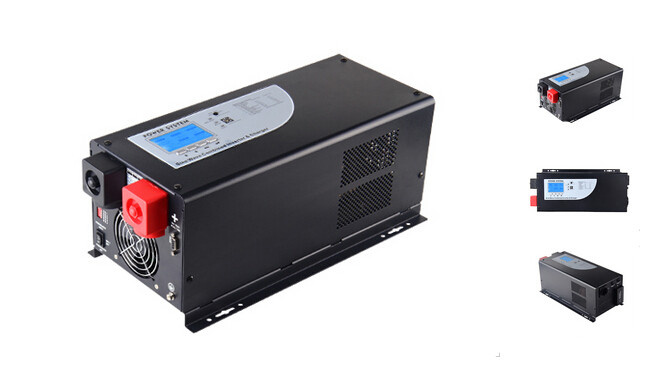

Product Description
Off Grid Pure Sine Wave Power Inverter 1-10kVA with TransformerKey Features:1. Pure sine wave output
2. The charging current is big up to 85 Amp
3. Output power factor is 0.9-1
4. Output socket optional
5. Battery type can be select
6. Output voltage and frequency can be set
7. Charge current can adjust
8. Battery temperature sense optional
9. Connect to generator restart function
10. Well accept generator's output
11. Full automatical and silent operation
12. Automatically transfer between battery and line modes
13. Microprocessor control guarantees high reliability
14. Remote control function
15. Four-steps intelligent charging control to recharging time
16. Bypass voltage regulation function optional
17. Bypass function
Applications:Supply the reliable long back up time power for the home appliances and office appliances Solar power systems etc.Technical Parameters:| MODEL | IG3115CL 1-12KW Pure Sine wave Output Inverter |
| 1KW | 1.5KW | 2KW | 3KW | 4KW | 5KW | 6KW | 8KW | 10KW | 12KW |
| Input Wave form | Sine wave (utility or generator) |
| Nominal Voltage | 230Vac (120Vac optional) |
| Low voltage trip | 90v ±4% & 184v/154v ±4% |
| Low voltage re engage | 100v ±4% & 194v/164v±4% |
| High voltage trip | 140v ±4% & 253v ±4% |
| High voltage re engage | 135v ±4% & 243v±4% |
| Nominal Input Frequency | 50Hz/ 60Hz (auto detection) |
| Frequency range | 47Hz~65Hz |
| Output Wave form | (Bypass mode)same as input |
| Efficiency on line transfer mode | ≥95%+ |
| Line transfer time | 10ms Typical |
| Bypass without battery connected | Yes |
| Inverter specification/output |
| Output wave form | Pure sine wave |
| Output continuos power watts | 1000 | 1500 | 2000 | 3000 | 4000 | 5000 | 6000 | 8000 | 10000 | 12000 |
| Output continuos power VA | 1000 | 1500 | 2000 | 3000 | 4000 | 5000 | 6000 | 8000 | 10000 | 12000 |
| Power factor | 0.9-1.0 |
| Nominal Output Voltage rms | 230Vac (120Vac optional) |
| Output Voltage regulation | +/- 10%rms |
| Output frequency | 50Hz ± 0.3Hz or 60Hz ± 0.3Hz |
| Safety Certification | >88% |
| Surge ratings | 3000 | 4500 | 6000 | 9000 | 12000 | 15000 | 18000 | 24000 | 30000 | 36000 |
| Short circuit protection | Yes,fault after 1 secs |
| Inverter specification/input |
| Nominal input voltage | 12V/24V/48V | 96V |
| Minimum start voltage | 10V/20V/40V | 80V |
| Low battery alarm | 10.5V/21V/42V | 84V |
| Low battery trip | 10V/20V/40V | 80V |
| High voltage alarm | 16V/32V/64V | 128V |
| Power saver | Same switched on/off on remote |
| Charger mode specification |
| Output voltage | Dependent on battery type |
| Charge current | 0-85A MAX | 35A MAX | 45A MAX | 50A MAX |
| Battery initial voltage for start up | 0-15.7v for 12v(*2 for 24v;*4 for 48v;*8 for 96v) |
| Over charge protection shutdown | 15.7v for 12v(*2 for 24v;*4 for 48v;*8 for 96v) |
| Charger curves(4stage constant curren) | battery types |
| 4 step digital controlled progressive charge |
| Battery type | Fast V Fast V(*2 for 24v;*4 for 48v) |
| Gel U.S.A | 14 13.7 |
| A.G.M. 1 | 14.1 13.4 |
| A.G.M. 2 | 14.6 13.7 |
| Sealed lead acid | 14.4 13.6 |
| Gel euro | 14.4 13.8 |
| Open lead acid | 14.8 13.3 |
| Calcium | 15.1 13.6 |
| De-sulphation | 15.5 for 4 hrs |
| Remote control/RS232/USB | Yes. Optional |
Product Advantage:1 . Low Battery voltage Shut down can choose: 10V or 10.5V
2 . Input voltage rating can choose: 184V-253V or 154V-264V
3 . Frequency can choose: 50Hz or 60Hz
4 . Working mode can choose: battery mode first or on line mode first
5 . Charge current can adjust
6 . Battery type can choose: 0-9
7 . Remote moniton
8 . RS232
9 . SNMP Card (square, tower optional)
10. Dry contact (square, tower optional)
11. stability voltage function (square, tower optional)

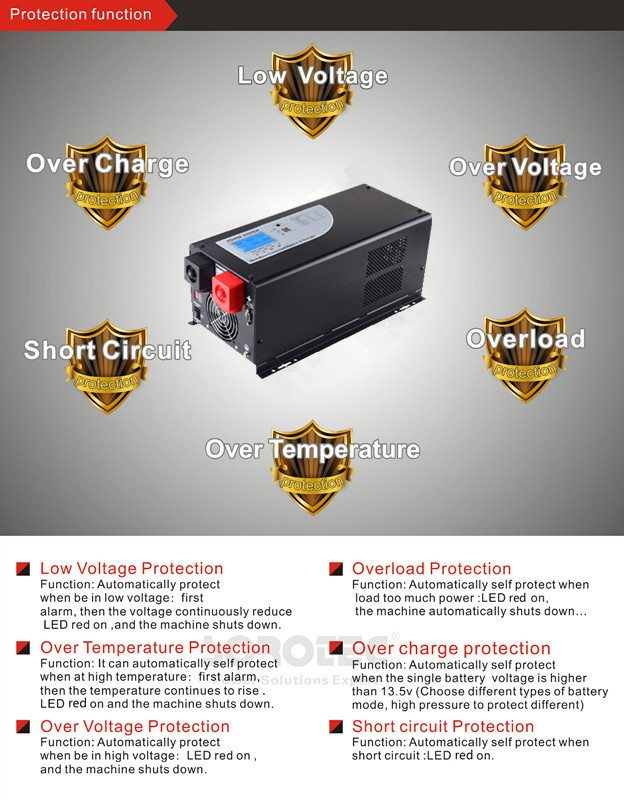

Product Function:Inverter output protect,Charge input protect,over load protect,Over temperature protect,Short circuit protect,Over charge protect,Battery over voltage protect.FAQ: 1 . Output wave when take the full loadThis product provide pure sine wave output when take the resistance load
..............................................................................................................................................................
2 . About THDIBecause this series product is not rectifier function, so can't make the THDI when use it
..............................................................................................................................................................
3 . About serviceWe are keep the most closely relationship with customers ,In order to satisfy the customer enjoy the most perfect after- sales service.
..............................................................................................................................................................
4 . About SORO technologyWe have the R&D department that is the core of the SORO. Shoulder heavy responsibilities of research,developing new product, perfecting the product . we are provide invests 10% of its annual revenue in research and development ,aims to offer customers in order to suited to their ever-changing environment enabling them to benefit from the last technological developments.
..............................................................................................................................................................
