Shenzhen UPSEN Electronic Co., Ltd. >> off Grid PV System Solar Power Pure Sine Wave Power Inverter 3000va/2400W 24V 220V

off Grid PV System Solar Power Pure Sine Wave Power Inverter 3000va/2400W 24V 220V

off Grid PV System Solar Power Pure Sine Wave Power Inverter 3000va/2400W 24V 220V
Price: US $ 1-200/Piece
Min Order: 1/Piece
Pay Type: L/C,T/T,Western Union,Paypal,Money Gram
Prod Model: RS series
Input: 220/230/240VAC
Maximum AC Charge Current: 60A
Solar Controller: 25A/60A/80A PWM
Selectable Voltage Range: 170-280 VAC (for Computers) 90-280 VAC

Product Description

Solar integrated machine 1000va-5000va solar power frequency inverter
Off Grid Hybrid Pure Sine Wave Inverter Controller Rainbow Star Plus Series 1000Va-5000Va   (1ph in/1ph out)


Key Features
1:Cold start function
2:Ability to select power saver mode
3:Built-in PWM solar charge controller
4:Auto restart while AC is recovering
5:Compatible to mains voltage or generator power
6:Unique front and back double soft start technology
7:Low voltage warning, the power will be automatically cut off
8:Parallel operation with up to 6 units only available for 4KVA/5KVA
9:Components with high-quality original, ensure products with high quality

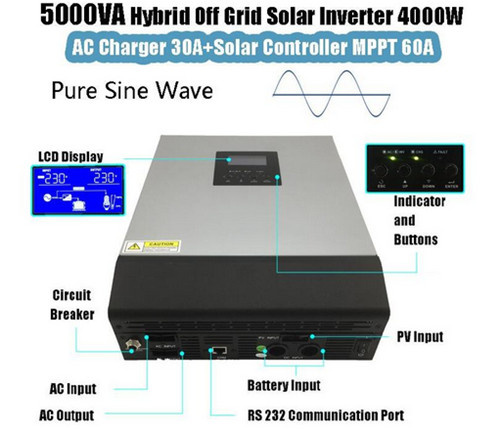

10:LED & LCD Display on the front panel shows the working and failure state
11:Small, light and artistic, benefited from adopting the SMD paster technology
12:Selectable input voltage range for home appliances and personal computers






Application
Supply the reliable long back up time power for the portable personal computer, Printing machines,Data center, Financial and Securities, Electric powered Bicycle , lawn mowers, vacuum cleaners,Cameras and photographic equipment etc.




Product Descriptions of Solar Inverter
ModelRS1000RS2000RS3000RS4000RS5000
RATED POWER1000VA/800W2000VA/1600W3000VA/2400W4000VA/3200W5000VA/4000W
INPUT
Voltage208/220/230/240 VAC
Selectable Voltage Range170-280 VAC (For Personal Computers) ; 90-280 VAC (For Home Appliances)
Frequency Range50 Hz/60 Hz (Auto sensing)
OUTPUT
AC Voltage Regulation (Batt. Mode)230 VAC ± 5%
Surge Power2000VA4000VA6000VA8000VA10000VA
Efficiency (Peak)90~93%93%
Transfer Time10 ms (For Personal Computers) ; 20 ms (For Home Appliances)
WaveformPure sine wave
BATTERY & AC Charger
Battery Voltage24VDC48 VDC
Floating Charge Voltage27VDC54 VDC
Overcharge Protection30VDC60 VDC
Maximum AC Charge Current20A25 A
SOLAR CHARGER
Maximum PV Array Open Circuit Voltage60VDC/150Vdc (Optional)110VDC/150Vdc (Optional)
Mppt Range @ Operating Voltage25-60Vdc/25-150Vdc (Optional)60-110Vdc/60-150Vdc (Optional)
Maximum Solae Charge Current40/60A60A
Max Efficiency>96%
Standby Power Consumption2W
PHYSICAL

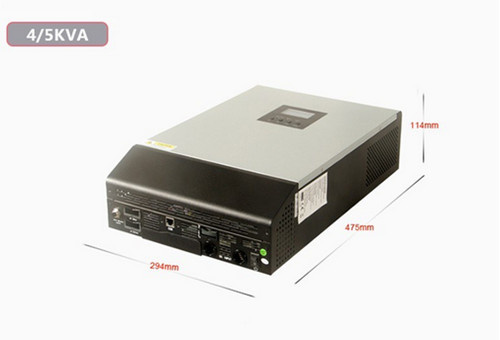

Dimension, D*W*H (mm)350*130*340380*130*465
Net Weight (kgs)7.47.6812.513.5
OPERATING ENVIRONMENT
Humidity5% to 95% Relative Humidity(Non-condensing)
Operating Temperature0°C - 55°C
Storage Temperature-15°C - 60°C
*Specifications are subject to change without prior notice.
