| Prod Model: |
pv1100 plus |
| Output Capacity: |
1kVA-2400va |
| Battery Cable: |
10AWG 60cm |
| Fit For: |
Home and Solar System |
| 1400va/800W: |
Small Home Inverter |
| Input Range: |
170-280V |
| 2400va/1440W: |
Compact for Home Use Inverter |
| Input Wide Range: |
90-280V |
| Efficiency: |
95% |
| Warranty: |
One Year |
| Application: |
Home Application |
Product Description
MUST new design portable dc to ac solar system 24v pure sine wave inverter pv1100 plus

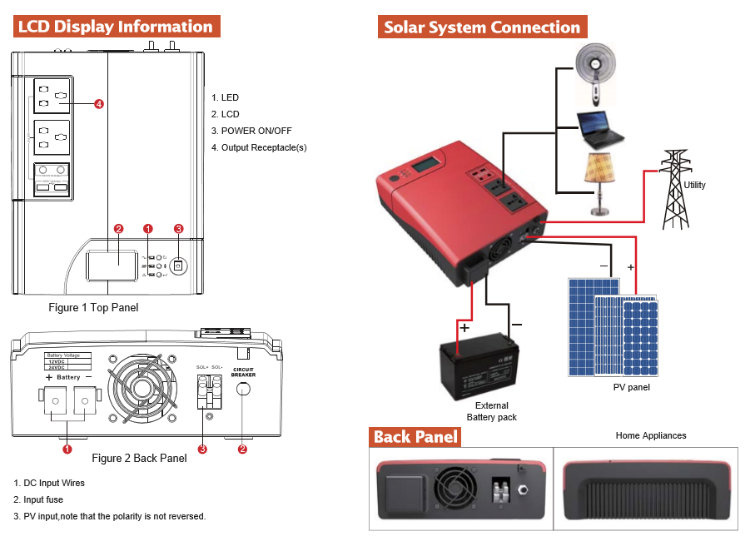

Features of solar inverter PV1100 series:
- Modified sine wave AC output, wide applicaton range.
- Charge current 15/20A adjutable for model 1000VA 1400VA
- Inbuilt with 30A PWM solar charge controller
- Three steps intelligent charging control
- Battery reverse protection
- Battery cable 8AWG 80CM (doule line)
- Compact size fit for home use, small solar system.
Specification:
| MODEL | PV11-1000 | PV11-1400 | PV11-2400 |
| Default Battery System Voltage | 12VDC | 24VDC |
| INVERTER OUTPUT | Rated Power | 1000VA/660W | 1400VA/800W | 2400VA/1440W |
| Waveform | Modifided Sine-wave |
| Nominal Output Voltage RMS | 230V |
| Output Voltage Regulation | +10/-18% |
| Output Frequency | 50Hz/60Hz +/-1 Hz |
| Inverter Efficiency(Peak) | >80% |
| Line Mode Efficiency | >95% |
| Typical Transfer Time | Typical 15~20ms 40ms max |
| AC INPUT | Voltage | 230VAC |
| Selectable Voltage Range | Narrow | 170~280VAC |
| Wide | 90~280VAC |
| Frequency Range | 50HZ/60HZ (Auto sensing) |
| BATTERY | Nominal Input Voltage | 12VDC | 24VDC |
| Minimum Start Voltage | 10.5VDC | 21.0VDC |
| Low Battery Alarm | 10.5VDC+/-0.4V | 21.0VDC+/-0.8V |
| Low Battery Cutoff | 10.0VDC+/-0.4V | 20.0VDC+/-0.8V |
| High Voltage Cutoff | 15.0VDC+/-0.4V | 30.0VDC+/-0.8V |
| AC CHARGER | Charger Voltage (Vbat<12.5V) | 14.4VDC+/-0.2V | 28.8VDC+/-0.4V |
| Charger Voltage (Vbat<12.5V) | 13.7VDC+/-0.2V | 27.4VDC+/-0.4V |
| Charging Current | 15A/20A±2A | 10A±2A |
| BYPASS & PROTECTION | Nominal Input Frequency | 50Hz or 60Hz |
| Overload Protection (SMPS Load) | FUSE |
| Output Short Circuit Protection | FUSE |
| Bypass Breaker Rating | 10A |
| Max Bypass Current | 10Amp |
| SOLAR CHARGER | Maximum PV Charge Current | 30A |
| DC Voltage | 12V/24V atuo work |
| Maximum PV Array Power | 150W*3 solar panels | 150W*4 solar panels |
| MPPT Range @ Operating Voltage | 16~55VDC |
| Maximum PV Array Open Circuit Voltage | 55VDC |
| Maximum Efficiency | >95% |
| Standby Power Consumption | <2W |
| MECHANICAL SPECIFICATIONS | Dimensions (W*H*D) | 268*260*90mm |
| Net Weight (kg) | 3.5 |
| OTHER | Operation Temperature Range | 0°C to 50°C |
| Audible Noise | 50dB MAX |
| Display | LED+LCD |
| Standard Warranty | 1 year |
Payment & Shipping & Sample
1. Payment: T/T (Telegraphic transfer), and Western Union
2. Shipping: DHL, FEDEX, UPS, EMS, Airway and By Sea
Samples are Available for Testing and Market Test. OEM is welcomed for us.
One Year Warranty on MUST POWER Products
Guides and After-service Consultancy
A. Need a Accessory
B. Products Repair
C. Power Problems to Solve
D. Power Protection Solutions, etc.
Headquarter & Factory Location | In HongKong & Shenzhen,Guangdong China Mainland |
| Industry Experience | 6-Year Manufacturer, 12-Year Trading, 6-Year Alibaba Gloden Supplier |
| Product Range | Inverter,Solar Inverter, Off-grid Inverter Grid-tie Solar Inverter, MPPT Solar Charge Controller, Solar Panel, Solar Battery, Solar System |
| Main Market | Africa, Middle East & Asia ( Ukraine, Russia, Vietnam, Pakistan, Nigeria, Kenya, South Africa, Ghana,etc.) |
| Factory | 8000 Square Meters, 200 workers |
| Department | 7-team Marketing Dept, 2-team R&D, 1 Manufacturing Center, QA Office, After-sale Service Dept. |
| Certificate | ISO9001:2008, CE, IEC,SAA, SGS, Soncap,etc |
| Patent | Software Patent, Design Patent, Project Patent |
Shenzhen Must Power Limited established in 2010, with the headquarter in Hongkong, which is a professional hi-tech enterprise specialized in UPS, Power Inverter, Solar Power, VRLA Battery development, manufacturing, sales and after-service.
Our comprehensive product lines include:
Off-line UPS, line interactive UPS, On-line UPS, Solar inverter, Power inverters, Stabilizers and Solar battery.
Most of products from MUST applied with CE, FCC certificates. The main markets are Ukraine, Russia, Vietnam, Thailand, Pakistan, India, etc. Must Power Limited is one of the authorized suppliers for China Citic Bank, Ministry of Information Industry of China, Ministry of Power Industry of China, Ministry of Transportations of China.
With an excellent R & D team formed by over 30 engineers and a skilled, dedicated workforce, together 10, 000 square meter in-house manufacturing facilities in Guangdong China, Shenzhen Must Power Limited has innovated, developed and improved the products to meet the demands of customers and keep pace with changing demands of the industries. With 'close to customer' notion, we have aligned most of its resources to support our Original Equipment Manufacturer (OEM) customers, and work with our customers as power partners. Our mission is to be the best supplier of power solutions, and to accomplish this, we will continue to tailor products for market needs while maintaining high quality, integrated customer service and prompt delivery.
