Product Description

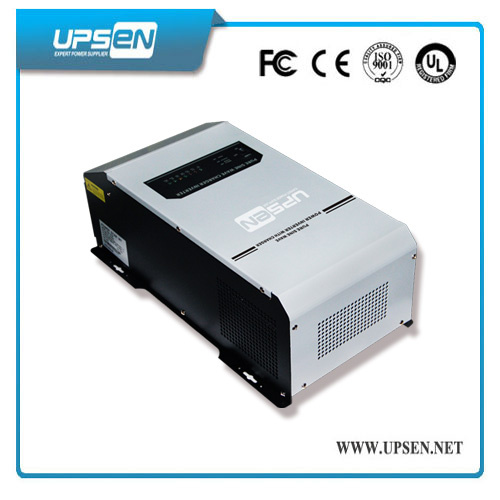

Off Grid Solar Inverter with 220 / 230 / 240Vac output and AVR Function
Pure Sine Wave Inverter Charger Power Star Plus Series 1000W-12000W (1ph in/1ph out)
Key Features:
1: Remote control function
2: Accept generator's energy output
3: Fast and powerful charger with 35A - 100A
4: Microprocessor control guarantees high reliability
5: Automatically transfer between battery and line modes
6: Smart battery charger design for optimized battery performance
7: High efficiency design & power saving mode to conserve energy
8: AVR (Auto Voltage Regulation) Function under AC Mode is available for option
9: Output are pure sine wave same as the mains power, never harm to any load
10: Independent research and development design, adopting the latest technology and developments, and have a long operating life
Protection against:
Over load, over temperature, over charging, low battery
Reverse connection(optional by hard connector) Blackouts.Output short circuit protection.
,Temperature protection,Overload protection etc.
Application
UPSEN Power Srar Plus Series Inverter can be used for various home appliances, Emergency Lighting Systems,Toys,Fire,Security Systems,Geophysical Equipment,Vending Machines etc.
| Power Star Plus Series |
| Model No. | PS Plus Series |
| Nominal Power | 1000W | 2000W | 3000W | 4000W | 5000W | 6000W | 8000W | 10000W | 12000W |
| AC Input |
| AVR Function | Available for Option |
| Waveform | Pure Sine Wave |
| Voltage | 120VAC/230VAC |
Acceptable
Voltage | 194-243VAC\164-243VAC(wide mode) | 154VAC~273VAC |
Line Low
Transfer | 85V±4%/184(154 wide mode±4%) | 154Vac±4% |
| Line Low Return | 95V±4%/194(164 wide mode±4%) | 164Vac±4% |
| Line high Transfer | 135V±4%/253±4% | 273Vac±4% |
| Line high Return | 127V±4%/243±4% | 263Vac±4% |
| Frequency | 50Hz or 60Hz (Auto sensing) |
| Line Low Transfer | 47Hz for 50Hz, 57Hz for 60Hz | 40Hz±0.3 for 50Hz |
Line high
Transfer | 55Hz for 50Hz, 65Hz for 60Hz | 80Hz±0.3 for 50Hz |
| AC Output |
| Waveform | Pure Sine Wave(bypass mode sync to input) |
| Voltage | 120/220/230/240VAC(bypass mode sync to input) | 230VAC(bypass mode sync to input) |
Voltage
Regulation | ±10%rms(bypass mode sync to input) |
| Frequency | 50Hz±0.3Hz(bypass mode sync to input) |
| Peak Power | 3 times of rating power |
Short Circuit
Protection | Yes,shutdown after 10ms | Yes,shutdown after 10s |
| Power Factor | 0.9-1.0 |
| DC Input |
| Battery Voltage | 12V/24V | 12V/24V/48V | 24V/48V | 48V |
Minimum
Start Voltage | 10V for 12V,20V for 24V,40V for 48V | 40Vdc |
| Low Battery Alarm | 10.5V for 12V,21V for 24V,42V for 48V | 44Vdc±1.2Vdc |
Low
Battery Transfer | 10V for 12V,20V for 24V,40V for 48V | 40Vdc±1.2Vdc |
| High Voltage Alarm | 16V for 12V,32V for 24V,64V for 48V | 64Vdc±1.2Vdc |
Max
Charging Current | 35A/70A | 70A | 85A | 100A |
Over
Charge Voltage | 15.7V for 12V,31.4V for 24V,62.8V for 48V | 62.8V |
| Transfer Efficiency |
| Line Mode | >95% |
| Battery Mode | >88% |
| power saver | Available when the load is less than 25 Watts | <75W |
| Indicators |
| 7-LED Display | From the right to the left,LED1 line mode (green lighting),LED2 inverter mode |
| (green lighting),LED3 charging mode(yellow lighting),LED4 Fully charged |
| (green lighting),LED5 over heat shutdown(red lighting),LED6 Overloaded |
| shutdown(red lighting),LED7 Saving Mode(green lighting) |
| 3-LED Display | Charging Mode(green lighting),inverter mode(green lighting),
Alarm(red lighting) |
| Switch selector | Saving Mode is on/off when push the switch
forwards/backwards, keeping it horisontal is turning the inverter off. |
|
| Audible Alarm | Sounding when the heatsink's tem is over 105ºC
and shutdown after 30 seconds. |
| Protections | low battery,over charging,over temp,over load |
| Communications | RS-232/USB(custom-made) |
| Enviromental |
Operating
Environment | 0-40ºC,0-90%RH(non-condensing) |
| Audible Noise | <60dB |
| Physical |
| Net Weight(KG) | 18 | 20 | 22 | 35 | 38 | 40 | 60 | 66 | 70 |
Dimension
L*W*H | 442*218*179mm | 598*218*179mm | 750*520*310mm |
| *Specification is subject to change without prior notice. |
