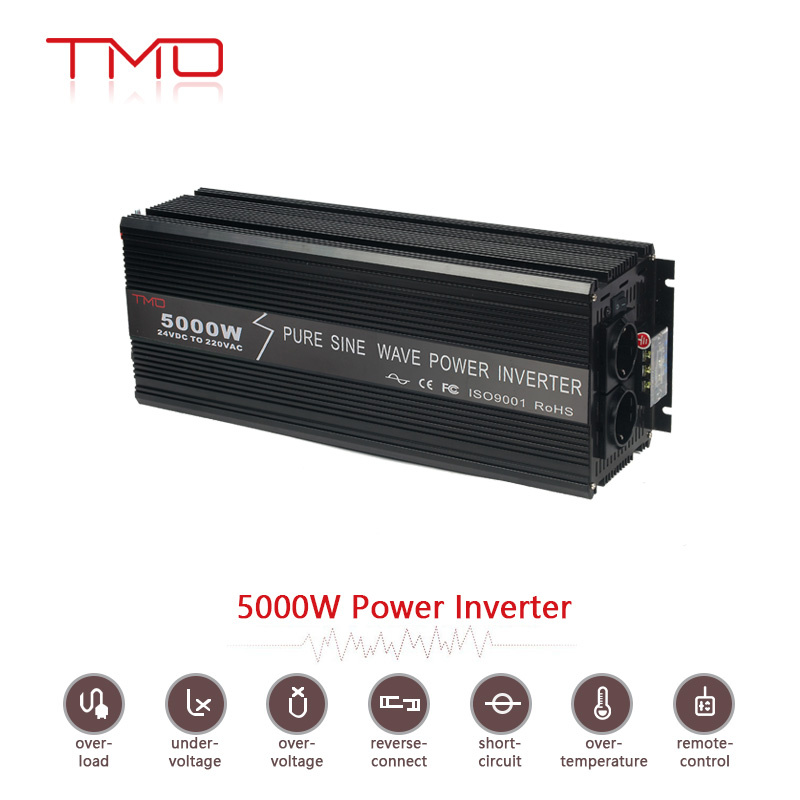

off Grid Solar Inverter with 5kw 48V
| Price: |
US $ 1-399/Piece |
| Min Order: |
1/Piece |
| Pay Type: |
L/C,T/T,Western Union,Paypal |
| Prod Model: |
TMO-P5000 |
| Rated Power: |
5000W |
| Peak Power: |
10000W |
| Shell Material: |
Aluminium Alloy |
| Surface Color: |
Customized |
| OEM: |
Accepted |
| Warranty: |
2 Years |
| Power Efficiency: |
90% |
| Built-in Charger: |
Optional |
| LED Display: |
Optional |
| Key Word: |
Inverter 5kw 48V |
Product Description
off Grid Solar Inverter with 5kw 48VTechnical Parameters| Model No. | TMO-P5000 |
| Direct Voltage | 24V |
| Voltage Range | 40-60VDC |
| No-load Current | <1.86 |
| Efficiency | >90% |
| DC Link | Connection Lug |
| Output Voltage | 100/110/120VAC or 220/230/240VAC |
| Rated Power | 5000W |
| Peak Power | 10000W |
| Output Waveform | Pure Sine Wave |
| Output Frequency | 50Hz or 60Hz |
| Waveform Distortion | 3% |
| Low Voltage Alarm | 29VDC±1V |
| Low Voltage Shut Down | 21VDC±1V |
| Over Load | Output shut down |
| Over Voltage | 30.2V |
| Over Heating | Output automatically shutdown |
| Working temperature | -10ºC----+50ºC |
| Storage temperature | -30ºC----+70ºC |
| Working Humidity | 20%-90%RH |
| Dimension(mm) | 500*165*115 |
| Packing(mm) | 565*260*210 |
| Net./gross weight(g) | 9.3/10.4KG |
| QTY/Ctn | 1PC/CTN |
| Warranty | 1 Year |
| Configuration | Standard |
| Cooling Method | Fan cooling |
| Power Inverter | DC to AC or Off Grid |
| Note:Our products update constantly.The technical parameter is for reference only. Please refer to our real product. |
About Product

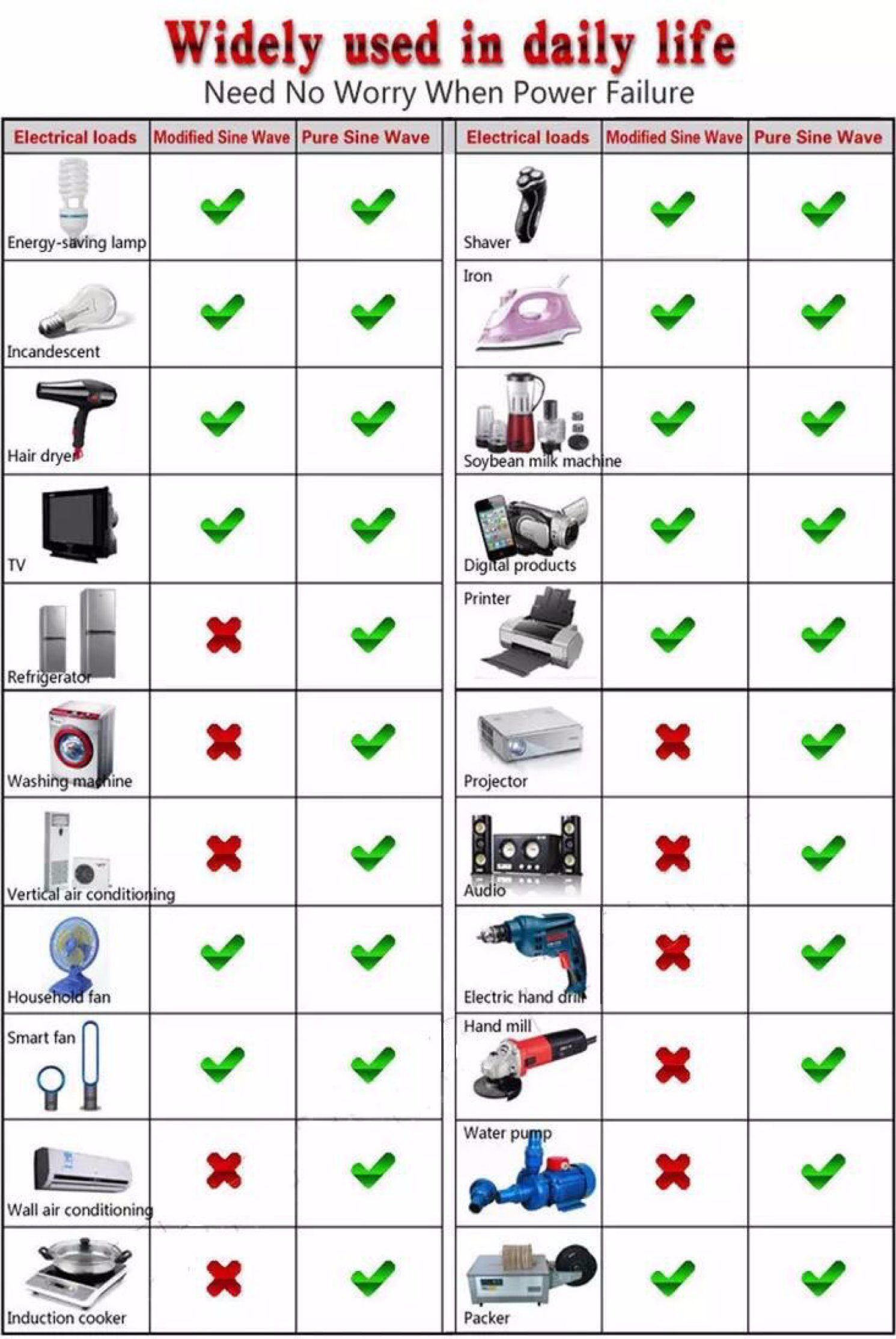

Product Application

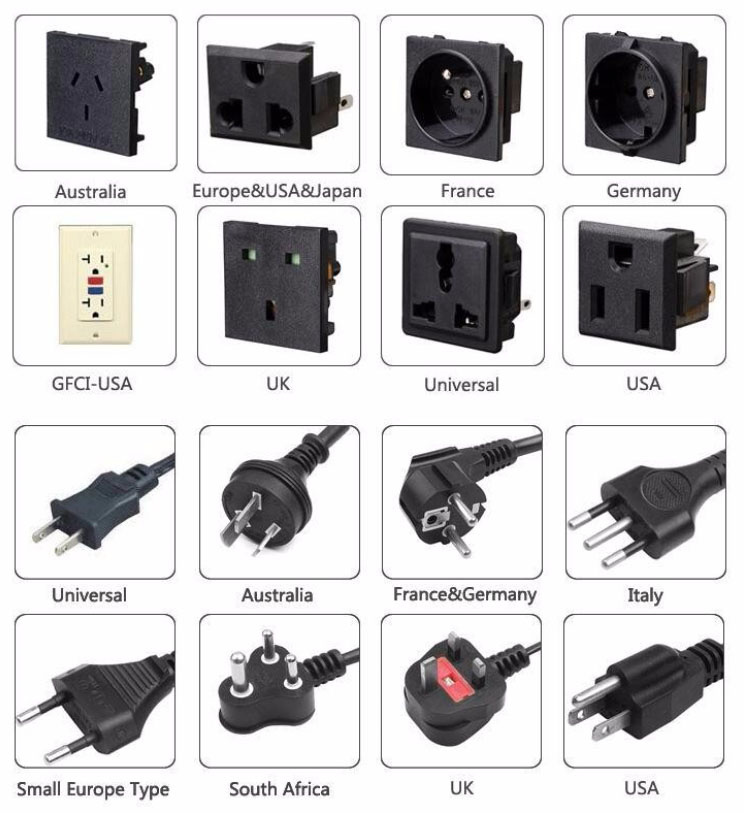

Socket and Plug
Customers servicePlease contact us through email or phone, we will assist you in any way possible and aim to answer all emails within 24-48 hours.
OEM Services:
1.Logo:Please offer us your own high resolution logo in JPG format, there should be two colors at most in the logo and there should be no gradient effect in the logo.
2.Label:Please offer us your own model numbers.
3. Manual:Please offer us the finished manual file that can be printed directly.
4. Packing Box:We will offer you the demension and the design file. Please design your own style based on this file then send it back to us.We will print some samples for your checking.
Payment Terms:
1. T/T ,Western Union,Money Gram.
2. We will arrange the products and shipment within 3-7 working days after receive the payment.
Lead Time:
1.Sample orders will be delivered from our factory within 7 working days.
2.General orders will be delivered from our factory within 7-15 working days.
3.Big orders will be delivered from our factory within 15-25 working days at most.
Shipment:
1.By EMS, DHL, FedEx, TNT, UPS or other express.
2.By our forwarding agent (by air or by sea).
3.By your own forwarding agent.
4.By domestic forwarding agents to any city in China.
After-sale service:
1.All products have been checked and packaged in good condition before dispatch.
2.Warranty : 18 months
3. In case the item is defective, please inform us within 30 days of receipt, we will replace a new one,but you need to in charge for the freight.No Refunds are offered.Logistics and Transport

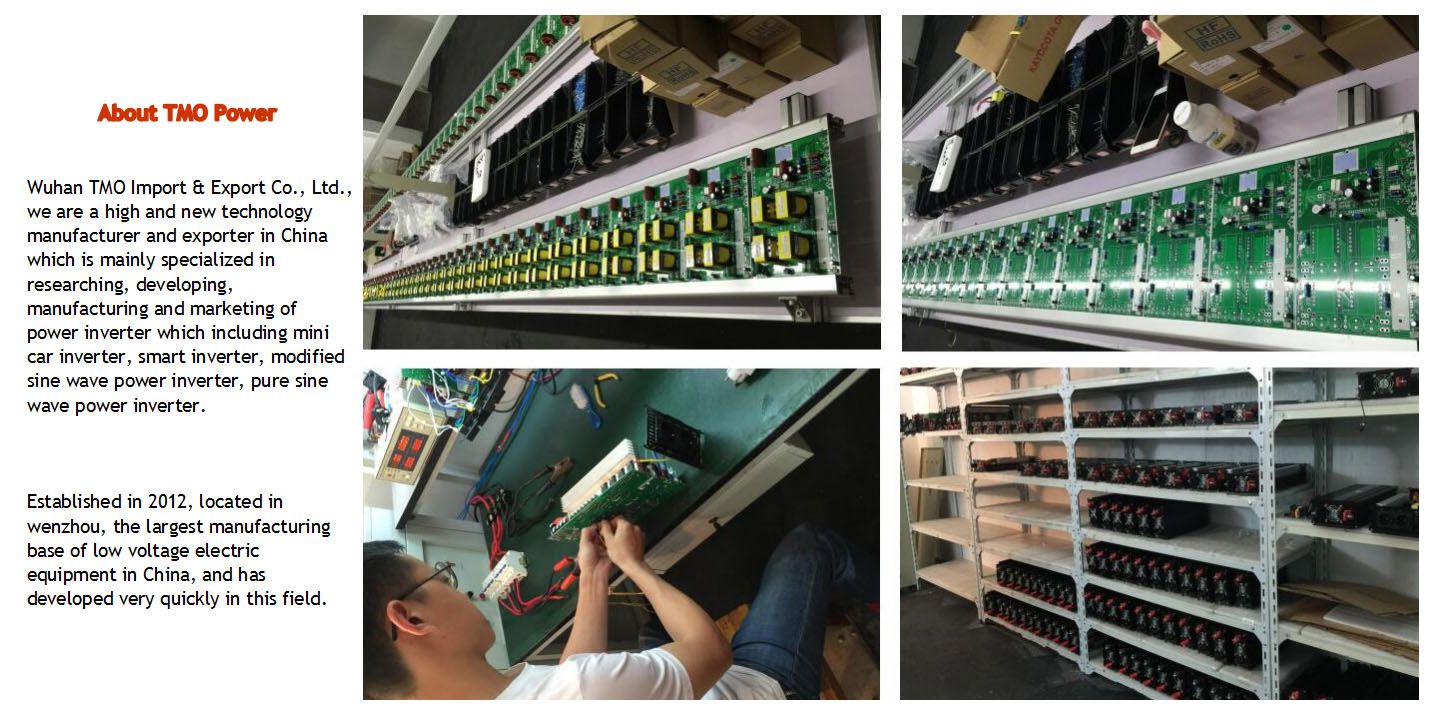

About TMO Power
FAQ:Q1: How to choose a right inverter?
A1:Tell us your demand, then our sales will recommend a suitable inverter to you.
Q2: What's the different between inverter and solar inverter?
A2: Inverter is only accept AC input, but solar inverter not only accept AC input but also can connect with solar panel to accept PV input, it more save power.
Q3: How about the delivery time?
A3: 7 days for sample; 25 days for bulk order.
Q4: What is the warranty of inverter?
A4: One year.
Q5: How to solve the technical problem?
A5: 24 hours after-service consultancy just for you and to make your problem to solve easily.
Wuhan TMO Import & Export Co., Ltd is a high-tech enterprise integrating the research, development, production, sales and technical services, which is mainly focusing on off-grid power solutions and new energy solutions. Our factory established in 2012, located in Wenzhou, the largest manufacturing base of low voltage electric equipment in China. Our company strictly comply with ISO9001 quality standard for production, strengthen production and quality control, implementation of comprehensive information management and gradually move towards high-end applications.
We accept OEM and small trial orders, contact us now for more information. All inquiries will be replied with in 24 hours. We also cordially welcome all clients to visit us and discuss business and place orders with us by any means of communication. We believe that with our best quality products and your marketing channel, we are certain to establish a lasting mutual benefit cooperation relationship with you.
