off Grid Solar Inverter with Parallel 6 Units Maximum

Name: off Grid Solar Inverter with Parallel 6 Units Maximum
Brand: all-electronics-online.com
SKU: 816802575
Availability: InStock
Rating: 4.8 (80 reviews)

Price:	US $ 1450-12650/Piece
Min Order:	1/Piece
Pay Type:	L/C,T/T

Contact Supplier

Showroom Product Company Profile

Prod Model:	CNS330
Display:	LCD\LED
Battery Voltage:	384VDC\480VDC
Protection Degree:	IP20
AC Ripple Voltage:	<1%

Product Description

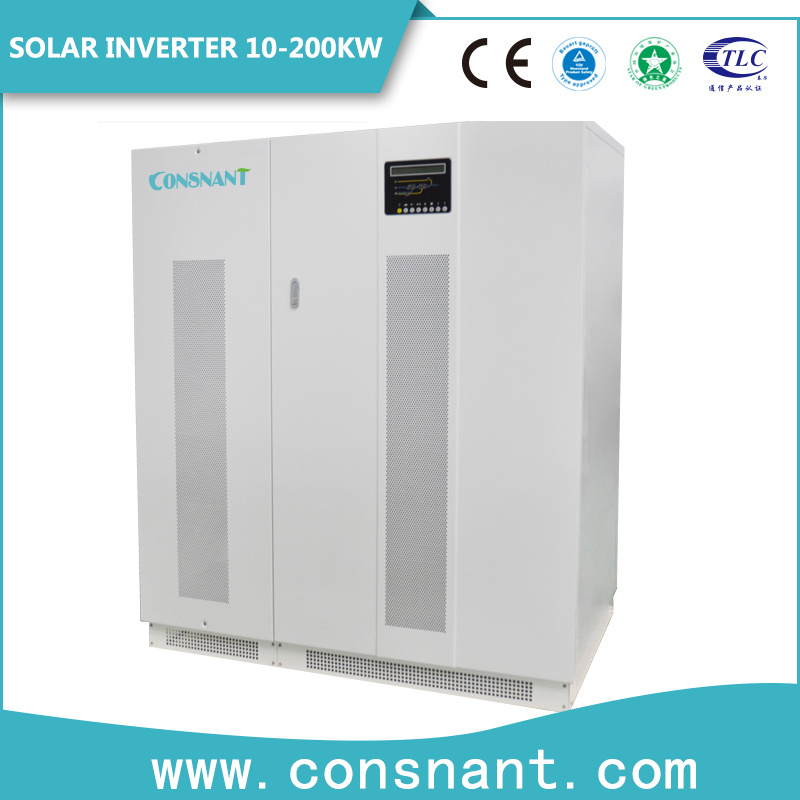

CNS330 Series Three Phase Off Grid Solar Inverter 8-200KW
Strong loading ability
Possible to use on parallel 6 units maximum


Model	10KVA	20KVA	30KVA	40KVA	60KVA	80KVA	100KVA	120KVA	160KVA	200KVA	250KVA
Capacity	8KW	16KW	24KW	32KW	48KW	64KW	80KW	96KW	128KW	160KW	200KW
Input
Battery Voltage	384VDC								480VDC
Maximun Recharge Current	0.2 × C10
AC Ripple Voltage	<1%
Inverter Output
Rated Power(kVA)	10KVA	20KVA	30KVA	40KVA	60KVA	80KVA	100KVA	120KVA	160KVA	200KVA	250KVA
Active Power(kW)	8KW	16KW	24KW	32KW	48KW	64KW	80KW	96KW	128KW	160KW	200KW
Phase	3φ4W+GND
Voltage (Vac)	L-N:230 L-L:400 (200, 208, 220 are available for customization)
Regulation of the output voltage	348~424 Vac Phase/ neutral (from control panel)
Protevt	Output short Circuit, overload, over-temperature, battery low voltage, output over/low voltage
LCD Display	Output voltage, frequency, battery volatge, load, DC current etc.
LED Display	Work status of inverter, fault indication and overloading
Frequency	50/60Hz configurable
Overload	110%, 125%, 150% of the rated current for 5h/10'/1'
Frequency Stability	±0.05% on mains failure; ±2%(selectable from ±1% to ±5%) with mains supply present
Wave Form	Sine wave, THD<3% at linear load
Efficiency	>=95%
communication	RS232/RS485, drt connection communication signal
Operation Temperature	0ºC to + 40ºC
Relative Humidity	<95% non condensing
Colour	Light gray(RAL 7035)
Noise	54dBA at 1m							50-60dBA at 1m
Protection Degree	IP20
Efficiency Smart mode	up to 98%
Compliance	Safetty: EN 62040-1-1(Directive 2006/95/EC); EMC:6200-2(Directive 2004/108/EC)
Weight(KG)N.W	205	215	243	293	234	456	517	740	755	1138	1350
Dimensions:(WDH)mm	5557301210					8007301400		11157301400		14208501600

Shenzhen CONSNANT Technology Co., Ltd. (simple name: CONSNANT) is a professional manufacturer engaged in research, development and production of UPS (Uninterruptible Power Supply) including the Modular UPS, Outdoor & Indoor UPS, Industrial special UPS, Low Frequency & High Frequency Online UPS and Solar Power System both for home appliance and telecom equipments.

Our product has obtained the CE, ISO 9001, ISO 14001 and local Chinese TLC certificates. Having reached good sales results in China, we are now expanding our sales overseas.

We are proud of the fact that most of our company's engineering staff is well-qualified and has gained experience in relevant fields more than 10 years. In order to protect your equipment from electrical supply network instability, we offer innovative solutions that obtain higher availability systems, improve efficiency and offer flexible solutions to meet specific needs and range of application. The UPS product is widely used in data and computing centers, finance institutions, banks, within industry and medical fields.

We welcome any kind of collaboration, will enjoy any opportunities of dealing with new costumers: From distributors to ultimate consumers, undertake both wholesale and retail orders, including the sale of finished goods or parts.

If you start work with us, you will not only get high-quality product at reasonable price, but also maintain the profitable conditions for further years.

We are located in the world-famous High-Tech center - Shenzhen city, China. Our factory is close to airport. If you are lucky to visit the city, you are kindly welcomed to visit our factory.
