Offering UL Ce Split Core Current Transformer

Name: Offering UL Ce Split Core Current Transformer
Brand: all-electronics-online.com
SKU: 797512375
Availability: InStock
Rating: 4.8 (105 reviews)

Price:	US $ 10-15/Piece
Min Order:	10/Piece
Pay Type:	L/C,T/T

Contact Supplier

Showroom Product Company Profile

Prod Model:	CT CY-KCT01A
Type:	Outdoor Split Core Current Transformer
Installation:	Busbar Type
Magnetic Circuit Structure:	Single Stage Type
Frequency:	50 Hz/60 Hz
Ce Recognized, And RoHS Compliant:	Yes
Outdoor Type:	with Rubber Cover
Application:	Rectifier
Phase:	Single
Cooling Method:	Dry-type Transformer
Winding Type:	Multi-winding Transformer
Coil:	with Rubber Cover
Usage:	Measurement
Brand:	Chuangyin

Product Description

offering UL Ce Split Core Current Transformer

Company :
95% customers come back to us for repeat orders

Sample Ready in 3-7 days

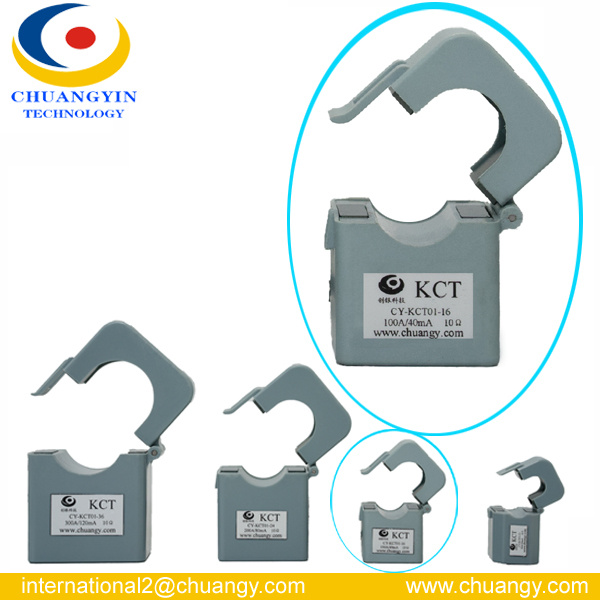

The 'KCTO1A Split Core Current Transformers' are designed for easy installed without the need for dismantling the primary busbar or cables. They output SA or 1A

standard secondary currents which can directly match the input terminals of electric energy meter and measure and control Instruments in power system. They are applied

to electric measure and control equipments like power electric energy meter, switch cabinet, control cabinet, etc.

Features:

Applications:

.Small size ,light weights and exquisite appearance

.Easily install, no need to disconnect primary bulbar

.With over-voltage protection in open circuit

.Electric energy meter

.Smart grid

.Switch cabinet

.power measurement and control system

Items for attention:

.The iron core binding surface has to be waterproof.

.The iron core surface needs to be polished to remove the rust and coated with rust-proof grease when the core surface rusted.

.Keep clean and without debris on core binding surface.

Work with us, a CT and relay assembly solutions provider that GE and Itron trustCE-, TÜ V- and RoHS-marked ISO 9001: 2008-certified, KEMA

Offering a Wide Range of Products

Shenzhen Chuangyin is a national high-tech enterprise. We are specialized in R&D, production and sales of kinds

1. LV & MV epoxy resin CTs and PTs (0.66kV, 7.2kV, 11kV, 17.5kV, 24kV, 33kV, 72.5kV etc ) for switchgear or power system.

2. Cold shrink cable, Separable accessories(EPDM).

3. Split core Current Transformer, Clamp- on Current Transformer and Rogowski coil Current Transformeretc.

4. CTs and Relays for energy meter.

Passed KEMA, TYPE TEST REPORT, CE, TUV, ISO and RoHS standards

We have a head office in Shenzhen High-tech Park and two subsidiary production bases named Jiangxi Chuangyin (20, 000 square meters) and Zhuhai Chuangyin (10, 000 square meters). We offer a wide product range such as all kinds of current transformers from mini CT to medium voltage CT, and from solid core CT to split core CT. We are a key supplier of energy meter, switchgear and utility companies for more than 10 years. We are the only company who make current transformer and relay together, and provide good solution for smart meters. Our experienced engineers have good knowledge in energy meters and switchgears. Furthermore, we have certificates such as CE, RoHS and ISO from TUV.

Contact us today to know more.

Thank you for your attention and support. Chuang Yin will stay with you to create a better future.

www.chuangy.com
