| Prod Model: |
JYP-1500 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Warranty: |
18 Months |
| OEM: |
Accepted |
| Input Voltage: |
12V/24V/48V |
| Color: |
Silver |
| Phase: |
Single |
| Type: |
DC/AC Inverters |
| Power Source: |
Solar Power |
| Output Power: |
>1000W |
| Brand: |
Jyins |
Product Description
Products Description :

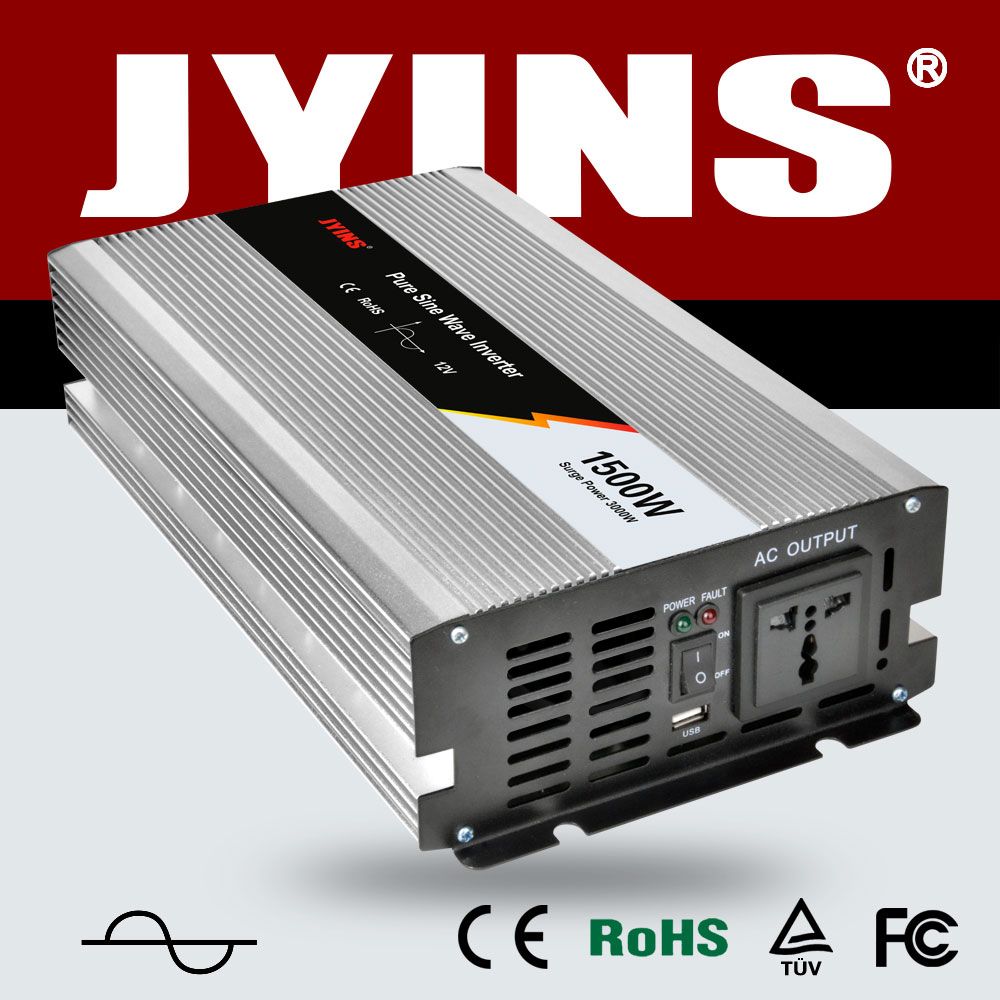

JYINS pure sine wave inverter offering superior quality true sine wave output, it is designed to operate popular power tools and sensitive loads. Connect JYINS 1500W pure sine wave inverter with battery terninals,then you can get AC power for your appliances,the AC output identical to, and in some cases better than the power supplied by your utility.There is a remote control function and an ON/OFF remote switch with 5m communication wire is optional.
Products Features:
·The remote control function and 5m wire with switcher optional.
·Input & output fully insolated
·High Surge: high surge current capability starts difficult loads such as TVs,camps,motors and other inductive loads,
·Grounding Protection : there is terminal in front panel,you can grouding the inverter.
·Soft start : smooth start-up of the appliances.
·Pure sine wave output waveform : clean power for sensitive loads.
·AC output identical to, and in some cases better than the power supplied by your utility
·Cooling fan in the inverter is thermally activated and comes on when the inverters becomes warm,and turns off automatically after the inverter has cooled.
·Low total harmonic distortion : below 3%
·Two LED indicators on the front panel shows the working and failure state.
Protection Function :
·Low voltage alarm & Shutdown
·Over voltage protection
·Overload protection
·Over temperature protection
·Short circuit protection
·Reverse Polarity protection
·Soft start
·Auto.reset after being in protected
·Grounding protection
| Model | JYP1.5K-121 | JYP1.5K-122 | JYP1.5K-241 | JYP1.5K-242 | JYP1.5K-481 | JYP1.5K-482 |
| Rated Power | 1500W |
| Peak Power | 3000W |
| Output Voltage | 110V | 230V | 110V | 230V | 110V | 230V |
| Frequency | 50/60Hz±3 |
| USB Port | 5V,500mA(Optional) |
| Output Waveform | Pure Sine Wave |
| Protection Function | Bat.Low Voltage Alarm&Shut Down,Overload,Over Temperature,Overvoltage,ShortCicuit,Reverse Polarity |
| Input Voltage | 12V | 24V | 48V |
| Dimension | 300×180×130mm(L×W×H) |
| N.W./unit | 4560g |
| QTY/Ctn | 5Pcs |
| Packing | Gift box |
| Meas./Ctn | 50x40.5x42.5cm |
| Warranty | 18Months |
