Office Machine 12V125ah Front Access Rechargeable SLA Battery
| Price: |
US $ 75.9-129.9/Piece |
| Trade Terms: |
FOB,others |
| Min Order: |
60/Piece |
| Pay Type: |
T/T |
| Prod Model: |
6FM125FR/10HR |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Color: |
Grey or Black |
| Terminal: |
F12 |
| Type: |
Lead-Acid Batteries |
| Rechargeable: |
Chargeable |
| Discharge Rate: |
Low Discharge Rate |
| Shape: |
Square Battery |
| Nominal Voltage: |
12V |
| Usage: |
Lighting |
Product Description

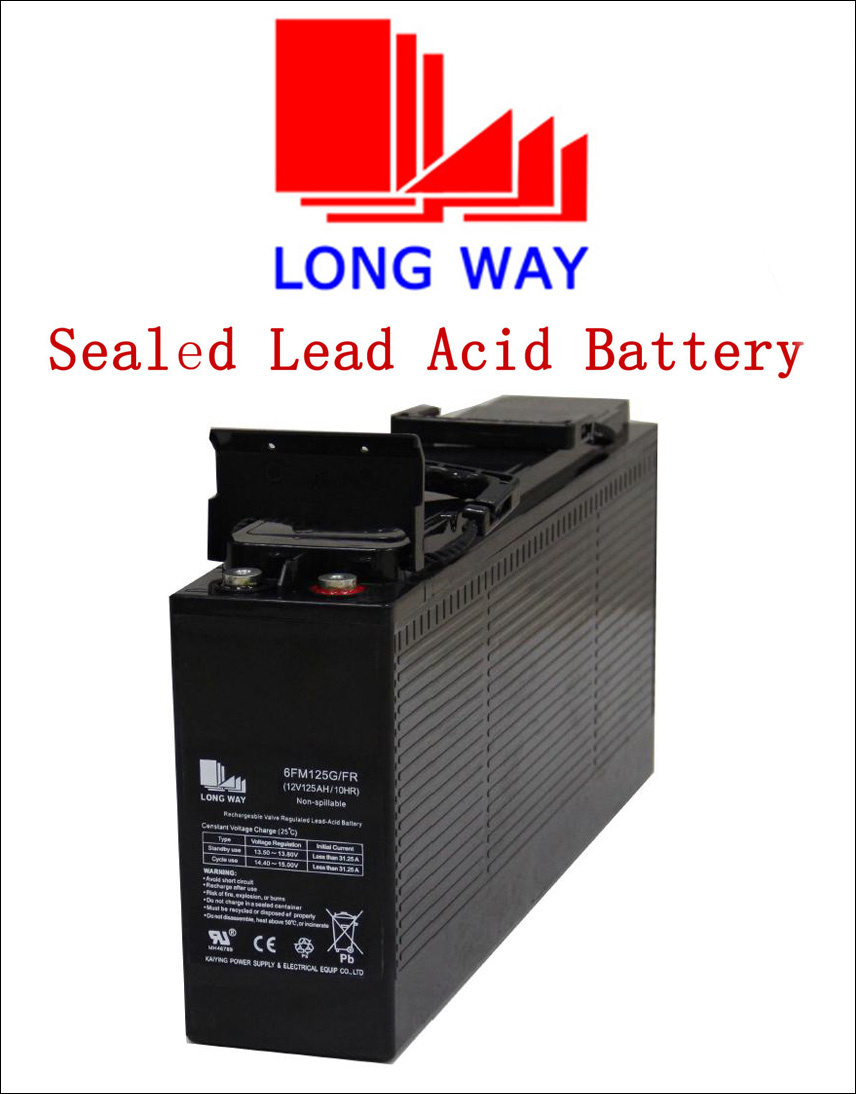

LONGWAY Office Machine 12V125ah Front Access rechargeable SLA Battery
The LONGWAY FR series battery is mainly uesed in the area of communication, which is novel in design, reasonable in structure and occupying the leading position in the same industry of the world.
As with previous INTELEC(International Telecommunications Energy)conferences, many people were concerned about the life and durability of VRLA(Valve regulated lead acid) batteries, It can be employed in numerous applications in the fields of communications, In order to ensure that the power supply is guaranteed at all times, essential facilities are backed up with high performances battery systems. Sudden breaks in the power supply are then no longer a problem. If the power suddenly fails, battery systems take over the emergency supply of power.
Trademark: LONGWAY
Model: 6FM125FR (12V125HR)
Size: L549.5*W105*H315(TH315)Weight: Approx(36.5±3%kg) (80.5lbs)
Cells per Unit:6
Normal Voltage :12V
Capacity :125Ah@10Hr-rate to 1.80V per cell@25ºC
Maximum Discharge Current: 1250A(5sec)
Internal Resistance :Approx. 5.0mΩ full charged @25ºC
Operating Temperature Range :Discharge: -20ºC~60ºC
Charge:0ºC~50ºC
Storage: -20ºC~60ºC
Nominal Operating Temperature Range :25ºC±3ºC
Float Charging Voltage: 13.7~13.9VDC/unit Average @25ºC
Maximum Charging Current :31.25A
Equalization and Cycle Service: 14.4V~15.0VDC/unit Average @ 25ºC
Self Discharge :
LONGWAY Valve Regulated Lead Acid (VRLA) batteries can be stored for more than 6 months at 25ºC. Self-discharge ratio less than 3% per month at 25ºC. Please charge batteries before using.
Terminal :Terminal F12
Container Material :ABS(UL94-HB)
*Flammability resistance of (UL94-V0) can be available upon request
General Features
Environmental friendly
Thick pasted plates with quality lead-tin-calcium alloy grids for long service life
Centralized venting system for gas ventilation
Plastics or rope handles for handling and installation convenience
Front access terminals for easy and quick connection
Low internal resistance
Lower self discharge
Design life is up to 12 years
Case and cover in strong flame retardant ABS, VO class
Applications
Communication equipment, Telecommunication System, Uninterruptible power supplies,
Electronic cash registers, Microprocessor based office machine, Other standby power supplies.Our certificate

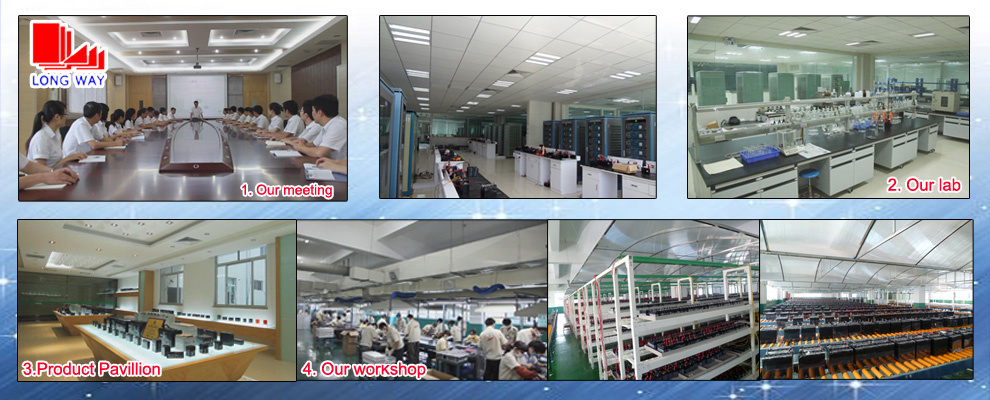

Our factory photo
Welcome to visit our website
HTTP: //longwaybattery. En. Made-in-China. com/For more information, welcome to visit our website
|
Standby FR series batteries |
|
Battery Model |
Nominal Voltage(V) |
Nominal Capacity
(AH) |
Length |
Width |
Height |
Total Height |
Weight(5%) |
Terminal |
|
In |
mm |
In |
mm |
In |
mm |
In |
mm |
Pound |
Kg |
Type |
Position |
|
6FM55FR |
12 |
55 |
11.5 |
291 |
4.17 |
106 |
8.78 |
223 |
9.06 |
230 |
39.7 |
18.0 |
F9 |
E |
|
6FM75FR |
12 |
75 |
22.1 |
562 |
4.53 |
115 |
7.36 |
187 |
7.64 |
194 |
51.8 |
23.5 |
F10 |
E |
|
6FM85FR |
12 |
85 |
22.1 |
562 |
4.53 |
115 |
7.36 |
187 |
7.64 |
194 |
56.2 |
25.5 |
F10 |
E |
|
6FM105FR |
12 |
105 |
20.0 |
508 |
4.33 |
110 |
8.86 |
225 |
9.13 |
232 |
71.7 |
32.5 |
F10 |
E |
|
6FM110FR |
12 |
110 |
16.1 |
410 |
4.33 |
110 |
11.3 |
288 |
11.6 |
295 |
72.8 |
33.0 |
F10 |
E |
|
6FM125FR |
12 |
125 |
21.7 |
551 |
4.29 |
109 |
9.41 |
239 |
9.41 |
239 |
79.4 |
36.0 |
F11 |
E |
|
6FM150FR |
12 |
150 |
22.2 |
565 |
4.33 |
110 |
11.3 |
288 |
11.6 |
295 |
97.0 |
44.0 |
F11 |
E |
|
6FM180FR |
12 |
180 |
22.0 |
560 |
4.92 |
125 |
12.4 |
316 |
12.4 |
316 |
114.6 |
52.0 |
F11 |
E |
Kaiying Power Supply & Electrical Equip Co., Ltd., established in 2001, is a professional valve regulated sealed lead acid battery manufacturer in China. We have a lot of experience in producing high quality products. There is a group of engineers to develop batteries as our clients required.
As the environmental readjusted, Zhangshan Long Way Battery Manufacturing Co., Ltd couldn't produce SLA batteries anymore. The technology and IQC management of Zhangshan Long Way Battery Manufacturing Co., Ltd which had merged with KAIYING GROUP, the Logo LONGWAY is also transferred to the KAIYING GROUP.
Kaiying Power Supply & Electrical Equip Co., Ltd., with a 10, 000 M² Factory space, the company has over 1000 employees and advanced development equipment and comprehensive test facilities. Attaching great importance to quality, our management comply with ISO9001-2000 standard. Our batteries have UL and CE approvals.
During the past several years, the company has gained a very high reputation in the industry with excellent development, production, sales capability and premium quality. So, we got very good market share both in the domestic and foreign markets in the past. OEM orders acceptable.
