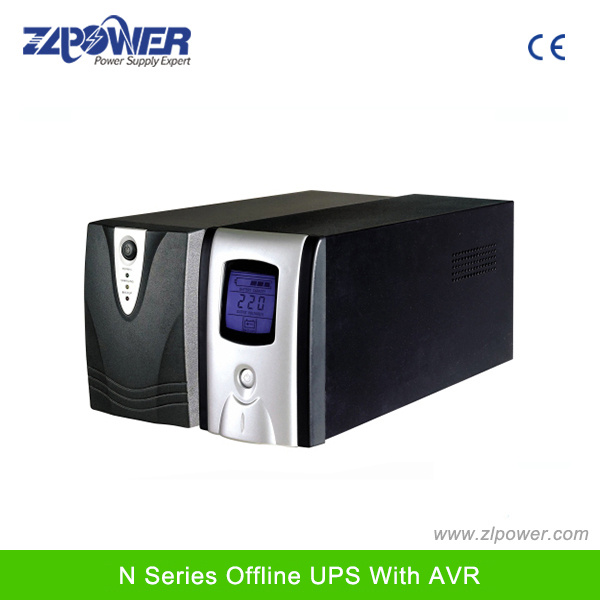

Offline UPS 1000va with Full AVR
| Price: |
US $ 20-50/Piece |
| Trade Terms: |
FOB,CFR,CIF |
| Min Order: |
1/Piece |
| Pay Type: |
L/C,T/T,Western Union,Money Gram |
| Prod Model: |
N400~N1500 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Nominal Capacity: |
400va~1500va |
| Power Factor: |
0.6 |
| Input Voltage Range: |
140-290VAC/70-145VAC |
| Frequency: |
50Hz/60Hz |
| Transfer Time: |
10ms |
| Battery Recharge Time: |
8hours to 90% of Capacity Full Load Discharge |
| Battery Protection: |
Auto Protect |
| AC Mode Protection: |
Fuse |
| Operating Temperature: |
0-40centi-Degree |
| Noise: |
35db |
| Phase: |
Single Phase |
| Type: |
Standby |
| Protection: |
Short Circuit |
Product Description
N series offline UPS is with LED indicators display and built in AVR, from 400VA to 1500VA, competitive price, smart size and low power consumption. Mainly used for computer, PCs, computer peripherals.
Offline UPS with AVR
Main Features:
Wide input voltage and frequency range. Equipped with Boost and Buck AVR to stabilize input voltage.
Built in DC start function enables UPS to start up without AC power supply.
Intelligent CPU control and battery management, support RS232 and USB communication monitoring;
Modem/Line Surge Protection: RJ11/RJ12/RJ45.
Overload/ Over charge/ Short-circuit/Low battery automatic alarm protection.
Auto restart while AC recovery.
Adopt the full bridge inverter technology, the system more stable and reliable;
Battery mode no-load automatic shutdown after two minutes.
IEC cables connect with PC.
Can match with various generators.
| Offline UPS Model | N400 | N500 | N650 | N800 | N1000 | N1200 | N1500 |
| Nominal Voltage | 400VA/240W | 500VA/300W | 650VA/390W | 800VA/480W | 1000VA/600W | 1200VA/720W | 1500VA/900W |
| Input | Voltage Range | 145~280VAC |
| Frequency | 50/60Hz |
| Output | Voltage Range | 220VAC ± 10% |
| Frequency | 50Hz ± 5% |
| Output Waveform | | | Square Wave | | |
| Transfer time | < 10ms |
| Battery | Type | Sealed free maintenance lead acid battery |
| Capacity | 12V, 4AH *1PCS | 12V, 7AH *1PCS | 12V, 7AH *1PCS | 12V, 9AH *1PCS | 12V, 7AH *2PCS | 12V, 9AH *2PCS | 12V, 9AH *2PCS |
| Recharge Time | 8 hrs to 90% of capacity full load discharge |
| Protection | Auto protect |
| Back-up time( Full load ) | 3~5 min | 5~7 min | 7~10 min | 6~8 min | 5~7 min | 8~10 min | 10-12min |
| Function | Auto voltage output on AC mode, Auto shutoff if short circuit or overload |
| DB-9 port, communication software | Optional RS232, RJ11, RJ45, USB |
| Protection | AC mode | Fuse |
| Short circuit | AC | Fuse |
| Invert mode | Auto protect |
| Alarm | Alarm | Battery discharge | Alarm beeps every four seconds |
| Low battery voltage | Alarm beeps every second |
| Overload | Alarm beeps continuously |
| Indicator light | Auto adjust | Green lighting: AC mode |
| Battery Discharge | Red lighting: Battery mode |
| Environment | Operating temperature | 0C~40C |
| Operating Humidity | 0-90% non-condensing |
| Noise | < 35dB (1 meter distance) |
| UPS Dimension (L× W× H) mm | 325*90*150 | 335*100*150 | 345*125*190 |
| Net weight (N. W) | 4.5KG | 6.5KG | 6.8KG | 7.5KG | 11KG | 12KG | 13KG |
| Gross weight (G. W) | 4.7KG | 6.7KG | 7KG | 7.7KG | 11.3KG | 12.3KG | 13.3KG |
About ZLPOWER
Founded in 2007, Shenzhen ZLPOWER Electronics Co., Ltd. (ZLPOWER for short) is a key hi-tech enterprise in state "Torch Plan, " integrating science, industry, trade, and investment into a whole. It has registered capital of RMB 10million, covering a floor area of 2000sq. M, and owning assets of RMB 30 million.
As a large-scale enterprise group with total assets exceeding RMB 30 million, it currently employs more than 300 staff, operates R & D institutions, 10 products lines, and 8 overseas branches and offices for sales and service.
Also as a professional uninterruptible power supply manufacturer in Shenzhen, China, ZLPOWER mainly produce high frequency online UPS, computer PC UPS, rack mount online UPS, low frequency Industry three phase UPS, UPS Inverter, solar inverter, solar charger controller, Solar/UPS Battery and other related products.
In ZLPOWER, we are strictly on quality inspections. We implement strict IOC, IPQC, FQC, OQC, QA, and other quality control measures in every process according to ISO9001, including to raw materials selection, production, package, and shipment.
Thus, we are ISO9001: 2008 and SGS certificated, and all our UPS, Inverter power supply products have been approved by CE (LVD/EMC), UL tests. As a result, they are popular among our customers from Italy, Germany, South Africa, Egypt, Mozambique, Nigeria, UAE, Ukraine, Russia, Uzbekistan, Philippines, Chili, Peru, Brazil, Mexico and more.
ZLPOWER is looking for agent worldwide to distribute our quality UPS system, Inverter power and solar products to their local markets. Any interests please welcome to contact us today and look for best power solution.
