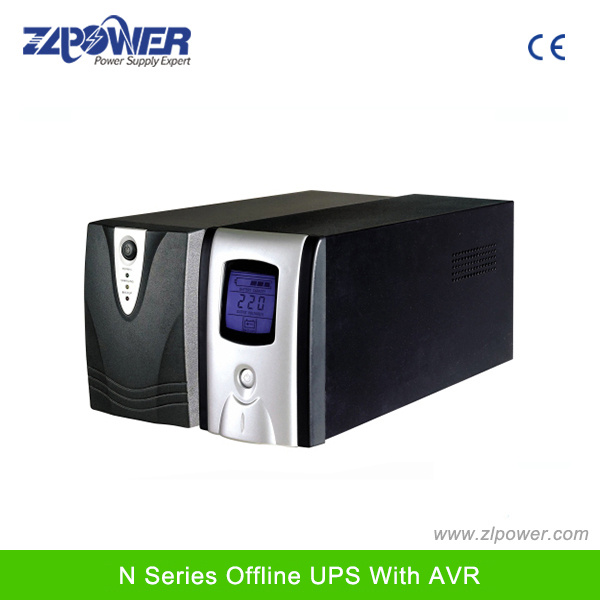

Offline UPS 400VA-1500VA With AVR and Standby
| Price: |
US $ 25-50/Piece |
| Trade Terms: |
FOB,CFR,CIF |
| Min Order: |
1/Piece |
| Pay Type: |
L/C,T/T,Western Union,Money Gram |
| Prod Model: |
N400~N1500 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| AC Input And Output Voltage: |
110V, 220V AC |
| Input Voltage: |
80~140VAC/145-280VAC |
| UPS Battery: |
Sealed Maintenance-Free Lead-Acid Battery |
| Rechage Time: |
8 Hrs to 90% of Capacity Full Discharge |
| Dp-9 Port: |
Optional RS232, Rj11, RJ45, USB |
| Display: |
LED and LED Display |
| Transfer Time: |
Less Than 10ms |
| Protect: |
Fuse Ptotect and Auto Protect |
| Output Voltage: |
100/220/Va+_10% |
| Operation Temperature: |
0~40centi-Degree |
| Phase: |
Single Phase |
| Type: |
Standby |
| Protection: |
All Types of Power Failure |
| Brand: |
OEM |
Product Description
Offline UPS is offline uninterruptible power supply, also called backup UPS, standby UPS, line interactive UPS or PC UPS, which can supply power to the electronic advices or electrical equipments when their power fail to work or to be abnormal, most of them used in supporting server, computing equipment as computers or some testing system.
It is the best partner for computer and its peripherals, typical work time is 10-35minutes, and extension is not available.
Product snapshot:
Power Rating: 400, 500, 650, 800, 1000, 1200, 1500 VA tower models
Voltage: 80 to 150Vac (low voltage) 145 to 280Vac (high voltage)
Frequency: 50/60 Hz (auto-sensing)
Technology: Automatic Voltage Regulation
Trading terms for reference:
Delivery time: 15days-25days, below 1000pcs within 15days, above 1000pcs within 25days.
Payment terms: TT, LC, Western Union, Money gram.
Warranty: 2 years, 2% spare parts.
| Offline UPS with AVR MODEL | N400 | N500 | N650 | N800 | N1000 | N1200 | N1500 |
| Nominal Capacity | 400VA/240W | 500VA/300W | 650VA/390W | 800VA/480W | 1000VA/600W | 1200VA/720W | 1500VA/900W |
| Input | Voltage Range | 145~280VAC/ 80VAC-150VAC |
| Frequency | 50/60Hz |
| Output | Voltage Range | 220VAC/120VAC ±10% |
| Frequency | 50Hz/60Hz ±5% |
| Output Waveform | Sine Wave (AC Mode), Square Wave (Battery mode) |
| Transfer time | < 8ms |
| Battery | Type | Sealed free maintenance lead acid battery |
| Capacity | 12V,4AH *1PCS | 12V,7AH *1PCS | 12V,7AH *1PCS | 12V,9AH *1PCS | 12V,7AH *2PCS | 12V,9AH *2PCS | 12V,9AH *2PCS |
| Recharge Time | 8 hrs to 90% of capacity full load discharge |
| Protection | Auto protect |
| Back-up time(at a PC load with 15"monitor) | 10 minutes | 18 minutes | 18 minutes | 22 minutes | 30 minutes | 35 minutes | 35 minutes |
| Function | Auto voltage output on AC mode, Auto shutoff if short circuit or overload |
| DB-9 port,communication software | Optional RS232, RJ11, RJ45, USB |
| Protection | AC mode | Fuse |
| Short circuit | AC | Fuse |
| Invert mode | Auto protect |
| Alarm | Alarm | Battery discharge | Alarm beeps every four seconds |
| Low battery voltage | Alarm beeps every second |
| Overload | Alarm beeps continuously |
| Indicator light | Auto adjust | Green lighting: AC mode |
| Battery Discharge | Red lighting: Battery mode |
| Environment | Operating temperature | 0~40centi-degree |
| Operating Humidity | 0-90% non-condensing |
| Noise | <35dB (1 meter distance) |
| UPS Dimension(L×W×H)mm | 250*90*145 | 291*90*145 | 330*90*145 | 340x122x190 |
| Net weight (N.W) | 4KG | 4.5KG | 5KG | 8.4KG | 9.4KG | 9.4KG |
| Gross weight (G.W) | 4.3KG | 4.8KG | 5.3KG | 8.7KG | 9.7KG | 9.7KG |
