Offline UPS 600/650VA/100VA (EA1000 Series)

Name: Offline UPS 600/650VA/100VA (EA1000 Series)
Brand: all-electronics-online.com
SKU: 673536235
Availability: InStock
Rating: 4.7 (80 reviews)

Price:	Negotiable/Piece
Trade Terms:	FOB
Min Order:	1/Piece
Pay Type:	L/C,T/T,Western Union

Contact Supplier

Showroom Product Company Profile

Prod Model:	EA1000 Series
Markets:	North America,South America,Southeast Asia,Africa,Mid East,Eastern Asia,Western Europe
Input Voltage:	145-276VAC
Display:	LED
Phase:	Single Phase
Type:	Standby
Protection:	Short Circuit
Brand:	Must or OEM

Product Description

Replaceable Battery Design.

Intelligent Battery Management.

Short Circuit and Overload Protection.

Surge protected outlets available for convenience.

Microprocessor Controlled guarantees high reliability.

Advanced PWM technology for inverter output.

AVR function, inner installed examination circuit for too low or too high voltage, can connect with the power generator.

Auto Restart while AC Recovery for Best power 500VA/600VA/650VA

This model will automatically switch to battery mode and power the load via battery until battery low.

MODEL		EA1000-500	EA1000-650	EA1000-800	EA1000-1000
CAPACITY		500 VA/ 300 W	650 VA/ 390 W	800 VA/ 480 W	1000 VA/ 600 W
INPUT
Voltage	Nominal Voltage	110/120 VAC or 220/230/240 VAC
	Acceptable Voltage Range	90-145 VAC/150-290 VAC
Frequency Range		50 Hz/60HZ
OUTPUT
AC Voltage Regulation (Batt. Mode)		±10%
Frequency Range (Batt. Mode)		50 Hz or 60 Hz
Transfer Time (Typical)		2-6 ms
Waveform (Batt. Mode)		Modified Sinewave
BATTERY
Battery Type & Numbers		12 V 7 Ah x 1	12 V 7 Ah x 1	12 V 9 Ah x 1	12 V 7.2 Ah x 2
Back up Time(at a PC load		8-10 minuters	8-10 minuters	15 minuters	15 minuters
Typical Recharge Time		10 hours to 90% after complete discharge
INDICATORS
AC Mode		Green LED lighting
Battery Mode		Green LED flashing every 4 seconds
Low Battery at Battery Mode		Green LED flashing every second
Fault		Red LED lighting
Battery Fault at AC modes		Green LED flashing three times every 2 seconds
Battery Week at AC modes		Red LED flashing every 2 seconds for 30 seconds
Overload		Red LED flashing every twice every second
ALARM
Battery Mode		Sounding every 4 seconds
Low Battery		Sounding every second
Fault		Continuously sounding
PHYSICAL
Dimension, D X W X H (mm)		29595140
Net Weight (kgs)		5.5	6.2	6.8	10.5
ENVIRONMENT
Humidity		0 to 90% Relative Humidity(Non-condensing)
Operating Temperature		0°Cto 40°C

Shenzhen Must Power Limited established in 2010, with the headquarter in Hongkong, which is a professional hi-tech enterprise specialized in UPS, Power Inverter, Solar Power, VRLA Battery development, manufacturing, sales and after-service.

Our comprehensive product lines include:
Off-line UPS, line interactive UPS, On-line UPS, Solar inverter, Power inverters, Stabilizers and Solar battery.

Most of products from MUST applied with CE, FCC certificates. The main markets are Ukraine, Russia, Vietnam, Thailand, Pakistan, India, etc. Must Power Limited is one of the authorized suppliers for China Citic Bank, Ministry of Information Industry of China, Ministry of Power Industry of China, Ministry of Transportations of China.

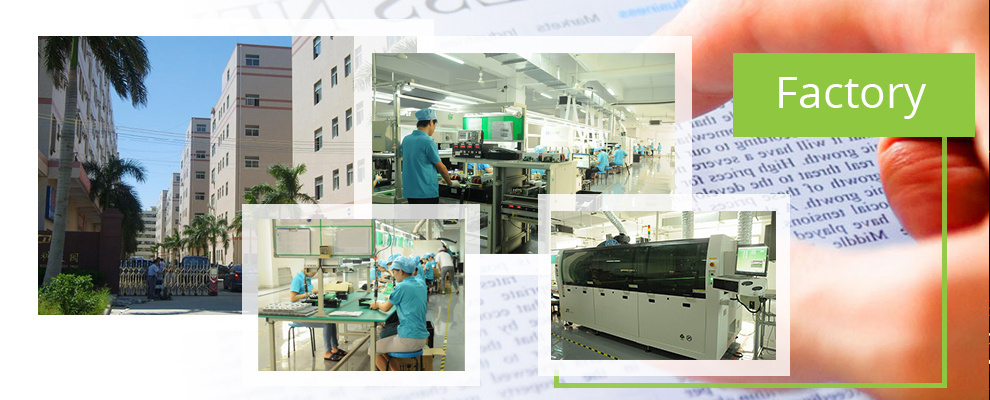

With an excellent R & D team formed by over 30 engineers and a skilled, dedicated workforce, together 10, 000 square meter in-house manufacturing facilities in Guangdong China, Shenzhen Must Power Limited has innovated, developed and improved the products to meet the demands of customers and keep pace with changing demands of the industries. With 'close to customer' notion, we have aligned most of its resources to support our Original Equipment Manufacturer (OEM) customers, and work with our customers as power partners. Our mission is to be the best supplier of power solutions, and to accomplish this, we will continue to tailor products for market needs while maintaining high quality, integrated customer service and prompt delivery.
