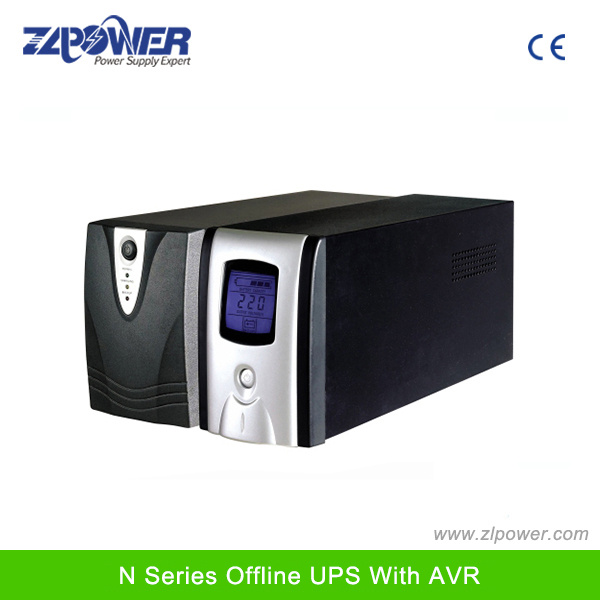

Shenzhen ZLPOWER Electronics Co., Ltd. >> Offline UPS for Compute 1000va with AVR and Standby (N400/N1500)

Offline UPS for Compute 1000va with AVR and Standby (N400/N1500)

Offline UPS for Compute 1000va with AVR and Standby (N400/N1500)
Price: Negotiable/Piece
Trade Terms: FOB,CFR,CIF
Min Order: 2/Piece
Pay Type: T/T,Western Union,Money Gram
Prod Model: N400-N1500
Markets: North America,South America,Eastern Europe,Africa,Oceania,Mid East,Western Europe
Battery Type: Built in Sealed Free Maintenance Lead Acid Battery
Out Put Waveform: Sine/Square Wave Form
Output Voltage: 200VAC/120VAC
Input Voltage Range: 145-280VAC/80-150VAC
Output Frequency: 50Hz/60Hz
Transfer Time: Max 8ms
Communication: Smart RS232 and USB
AVR Function: Wide Input Voltage Range
Recharge Time: 8hrs to 90% of Capacity Full Load Discharge
Phase: Single Phase
Type: Standby
Protection: Battery Voltage

Product Description

Offline UPS for Compute 1000va With AVR and Standby
1: Offline UPS with AVR Function and with Short Circuit protection
2: LCD Display offline UPS
3: Standby UPS 1000W with AVR
Details:
Offline UPS, LCD UPS - Offline LCD UPS
1: Offline UPS with AVR Function and with Short Circuit protection
2: LCD Display offline UPS
3: Offline UPS with USB/RS232/RJ11/RJ45 Ports
4: UPS Single Phase, 110V/120V or 220/230/240VAC In/Out

Offline LCD UPS Optional function
Line Surge Protection: RJ11/RJ12/RJ45, Communication Interface: RS232
Control mode: CPU controller
Function & Characteristic:
AVR, Overload and short circuit protection
Low battery alarm, LED status display
UPS Auto on when AC back, Night charging(optional)
Built-in Sealed lead acid batteries inside
USB Port is optional
Standby offline Mode
CE certificate, low fault rate and 1 year warranty
Quality is competitive with APC, Santak and Eaton UPS.
MODELN400N500N650N800N1000N1200N1500
Nominal Capacity400VA500VA650VA800VA1000VA1200VA1500VA
InputVoltage Range145~280VAC/ 80VAC-150VAC
Frequency50/60Hz
OutputVoltage Range220VAC/120VAC ± 10%
Frequency50Hz/60Hz ± 5%
Output WaveformSine Wave (AC Mode), Square Wave (Battery mode)
Transfer time< 8ms
BatteryTypeSealed free maintenance lead acid battery
Capacity12V, 4AH *1PCS12V, 7AH *1PCS12V, 7AH *1PCS12V, 9AH *1PCS12V, 7AH *2PCS12V, 9AH *2PCS12V, 9AH *2PCS
Recharge Time8 hrs to 90% of capacity full load discharge
ProtectionAuto protect
Back-up time(at a PC load with 15" monitor )10 minutes18 minutes18 minutes22 minutes30 minutes35 minutes35 minutes
FunctionAuto voltage output on AC mode, Auto shutoff if short circuit or overload
DB-9 port, communication softwareOptional RS232, RJ11, RJ45, USB
ProtectionAC modeFuse
Short circuitACFuse
Invert modeAuto protect
AlarmAlarmBattery dischargeAlarm beeps every four seconds
Low battery voltageAlarm beeps every second
OverloadAlarm beeps continuously
Indicator lightAuto adjustGreen lighting: AC mode
Battery DischargeRed lighting: Battery mode
EnvironmentOperating temperature0 ° C ~40 ° C
Operating Humidity0-90% non-condensing
Noise< 35dB ( 1 meter distance )
UPS Dimension ( L× W× H ) mm275*90*138                                335*103*152          345*122*190
Net weight (N. W)4.5KG6.5KG6.8KG7.5KG11KG12KG13KG
Gross weight (G. W)4.7KG6.7KG7KG7.7KG11.3KG12.3KG13.3KG
About ZLPOWER

Founded in 2007, Shenzhen ZLPOWER Electronics Co., Ltd. (ZLPOWER for short) is a key hi-tech enterprise in state "Torch Plan, " integrating science, industry, trade, and investment into a whole. It has registered capital of RMB 10million, covering a floor area of 2000sq. M, and owning assets of RMB 30 million.

As a large-scale enterprise group with total assets exceeding RMB 30 million, it currently employs more than 300 staff, operates R & D institutions, 10 products lines, and 8 overseas branches and offices for sales and service.

Also as a professional uninterruptible power supply manufacturer in Shenzhen, China, ZLPOWER mainly produce high frequency online UPS, computer PC UPS, rack mount online UPS, low frequency Industry three phase UPS, UPS Inverter, solar inverter, solar charger controller, Solar/UPS Battery and other related products.

In ZLPOWER, we are strictly on quality inspections. We implement strict IOC, IPQC, FQC, OQC, QA, and other quality control measures in every process according to ISO9001, including to raw materials selection, production, package, and shipment.

Thus, we are ISO9001: 2008 and SGS certificated, and all our UPS, Inverter power supply products have been approved by CE (LVD/EMC), UL tests. As a result, they are popular among our customers from Italy, Germany, South Africa, Egypt, Mozambique, Nigeria, UAE, Ukraine, Russia, Uzbekistan, Philippines, Chili, Peru, Brazil, Mexico and more.

ZLPOWER is looking for agent worldwide to distribute our quality UPS system, Inverter power and solar products to their local markets. Any interests please welcome to contact us today and look for best power solution.
