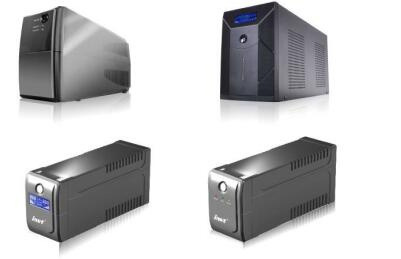

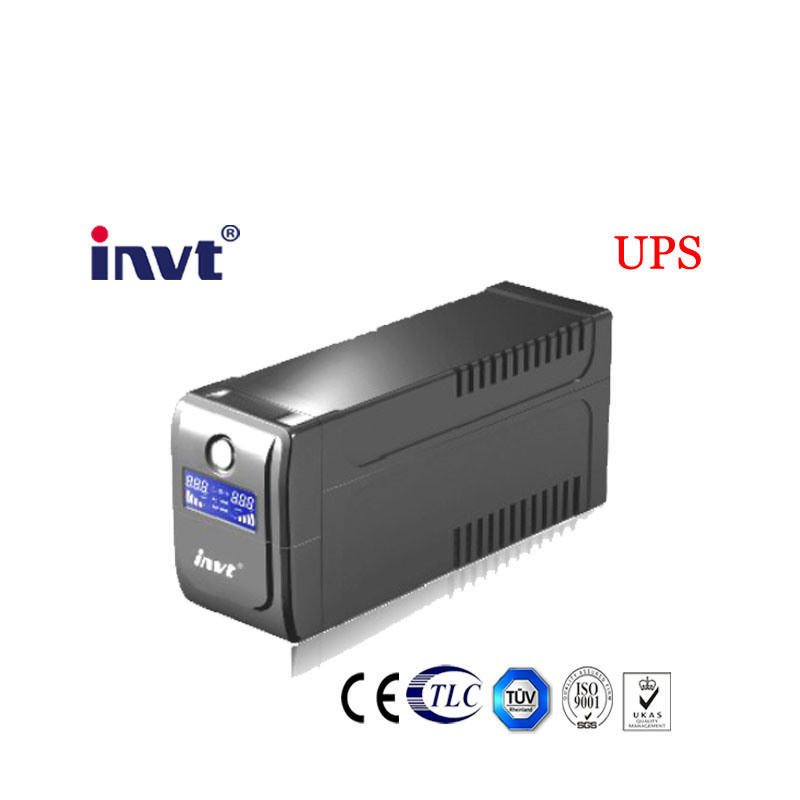

Offline UPS in 500va

Name: Offline UPS in 500va
Brand: all-electronics-online.com
SKU: 830378125
Availability: InStock
Rating: 4.4 (73 reviews)

Price:	Negotiable/Piece
Min Order:	1/Piece
Pay Type:	L/C,T/T,D/P

Contact Supplier

Showroom Product Company Profile

Prod Model:	BU500
Capacity:	500va
Input Voltage:	110/120VAC or 220/230/240VAC
Input Voltage Range:	85-150VAC/145-290VAC
Input Frequency:	50/60Hz(Auto Sensing)
Output Voltage:	110/120VAC or 220/230/240VAC
Wave Form:	PWM (DC Mode)
Capacity Of Battery:	12V,4.5ah*1
Phase:	Three Phase
Protection:	Overvoltage
Type:	Offline
Brand:	Invt

Product Description

The BU series is offline UPS with the most advanced DSP control technology which can protect the sensitive device from utility fail, over/under voltage, surges, transients, spikes and other electrical abnormalities. With automatic boot voltage regulation and wide input voltage range, BU is a good choice to be applied to all kinds of complex power environment.

Features
Automatic booting when the utility recovers
Wide range of input voltage
Alarm and mute
Auto recharging
Overvoltage and circuit short protection
Interface of RJ45/11 and USB

Specification

MODEL	BU500	BU600	BU800	BU1000	BU1200	BU1500	BU2000	BU3000
Capacity	500VA	600VA	800VA	1000VA	1200VA	1500VA	2000VA	3000VA
Input voltage	110/120VAC or 220/230/240VAC						220VAC
Input voltage range	85-150VAC/145-290VAC						175-275VAC
Input frequency	50/60Hz(Auto sensing)						50Hz
Output voltage	110/120VAC or 220/230/240VAC						220VAC
Output voltage range	102-132VAC/200-255VAC						200-240VAC
Output frequency	50/60Hz±0.5Hz						50Hz±0.5Hz
Wave form	PWM (DC mode)						PWM(DC mode)
Transfer time	Typical 2-6ms,Max<=10ms						<=10ms
QTY & capacity of battery	12V,4.5Ah*1	12V,7Ah*1	12V,9Ah*1	12V,7Ah*2	12V,7.5Ah*2	12V,9Ah*2	12V,7Ah*4	12V,9Ah*4
Charging period	period 4-6h to 90% capacity						10-16hours
Protection	Low voltage, overload and short circuit protection
Operation temperature	0-40ºC,
Humidity	20%-90%(non-condensing)						20%-90%(non-condensing)
Noise	≤40dB
Net weight(kg)	5.5	4	6	10.2	10.2	10.6	19	21
Dimension	25095140	30585140		335118190		340110265	408145220
Optional	LED/LCD,RJ45/11&USB

As leading total power solution manufacturer in China, INVT POWER is committed to offer high quality products and service to global customers. The powerful R&D ability insures that products and solutions are the best choice for critical power applications.

The product lines cover modular UPS, high frequency UPS, low frequency UPS, EPS, inverter, telecom rectifier, battery. With our own complete intellectual properly rights, the power ranges from 0.5kVA to 800kVA. INVT owns advanced power supply technologies including DSP intelligent control system, fully digital parallel technique, fully IGBT technology UPS, advanced protection technique, etc.

INVT established the most powerful R&D platform for power supply development in China. The platform includes components lab, performance lab, mechanical environmental lab, climate environment lab, EMC lab and safety lab. Due to all of these technologies and platform, INVT products are considered to be the most advanced and reliable in China.
