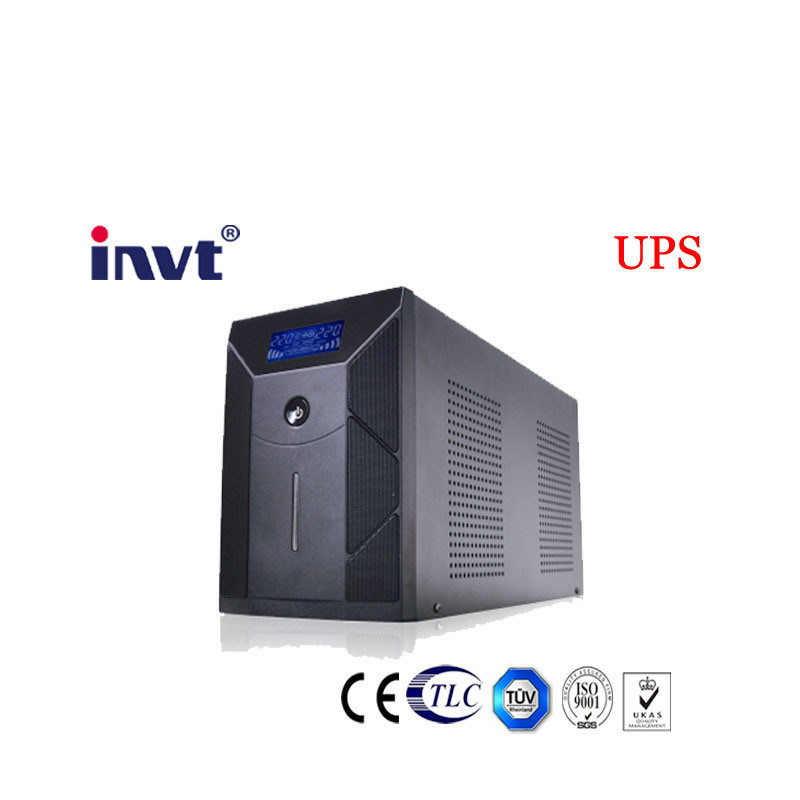

Offline UPS Power System

Name: Offline UPS Power System
Brand: all-electronics-online.com
SKU: 707217855
Availability: InStock
Rating: 4.8 (128 reviews)

Price:	US $ 10-5000/Piece
Trade Terms:	FOB
Min Order:	1/Piece
Pay Type:	L/C,T/T

Contact Supplier

Showroom Product Company Profile

Prod Model:	BU
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Output Voltage:	220V or 110VAC
Input Voltage:	110/120VAC or 220/230/240VAC
Input Frequency:	50/60Hz(Auto Sensing)
Wave Form:	PWM (DC Mode)
Capacity Of Batte:	12V,7.5ah*2
Phase:	Single Phase
Type:	Line Interactive
Protection:	Overvoltage
Standby Time:	Small
Standby UPS:	Offline UPS
Brand:	Invt

Product Description

Offline UPS 400-1200VA

Boost and buck voltage
Spike, surge, RFI noise protected
Advanced PWM mosfet technology
Advanced power failure detection
Advanced shutdown for overload and low battery
UPS Auto on when AC back.

MODEL		BU400VA	BU500VA	BU650VA	BU750VA	BU800VA	BU1000VA	BU1200VA
CAPACITY	VA/W	240W	300W	390W	450W	480W	600W	720W
Input	Voltage	110Vac/220Vac/230Vac/240Vac
	Voltage range	75-145v OR 145-280V
	Frequency	50Hz/60Hz
Output	Frequency	50Hz /60Hz
	Voltage	110Vac/220Vac/230Vac/240Vac
	Transfer time	< 10ms including direction time
	Wave form	Sine wave under mains supply, square wave under battery operation
Battery	BAttery Type and Number	12v4.5ah*1pc	12v7ah*1pc		12v9ah*1pc		12v7ah*2pcs	12v9ah*2pcs
	Backup Time(at a pc load with 17" monitor)	5-7 minutes	8-15 minutes		15-28minutes		25-40minutes	30-50 minutes
	Recharge Time	10 hours
Transfer Time	typical	< 10MS
Indicator	AC MODE	The 1st green LED lighting
	Battery MODE	The 2nd red LED flashing
	Fault	Red led lighting
Audible Alarm	Battery Mode	Sounding everey 4 seconds
	Low battery	Sounding everey seconds
	Overload	ups off
PROTECTION	Overload	As load over 130%, UPS is protected in 3 seconds
	AC input	Fuse for overload & short circuit protection
	Short circuit	UPS output cut off immediately
Battery	Type	Sealed, lead acid maintenance-free
	protection	Auto-inspection, discharge protection and battery fault caution
	Battery	Normally battery is charged once every three months, it isn' t less than 6 hours once a time.
Physical	Weight(kg)	4.75	6	6.5	7.5	8	11	12
	Size (LxWxH)mm	27590138	335103152				345x122x190
Note: Product upgradation is a continuous process; hence specifications are subject to change without notice.
