| Prod Model: |
SO series Oil-cooled Low Voltage Transformer |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Capacity: |
50kVA~2000kVA |
| Frequency: |
50Hz/60Hz |
| Winding Coupling: |
Yna0 Dyn11 |
| Efficiency: |
>95% |
| Insulation Class: |
a |
| Insulation Voltage: |
2000V60s |
| Insulation Resistance: |
500VDC>20mr |
| Relative: |
Relative |
| Application: |
Audio |
| Phase: |
Single |
| Coil: |
Core-type Transformer |
| Cooling Method: |
Oil-immersed Type Transformer |
| Winding Type: |
Separated Winding Transformer |
| Brand: |
Kewang |
Product Description

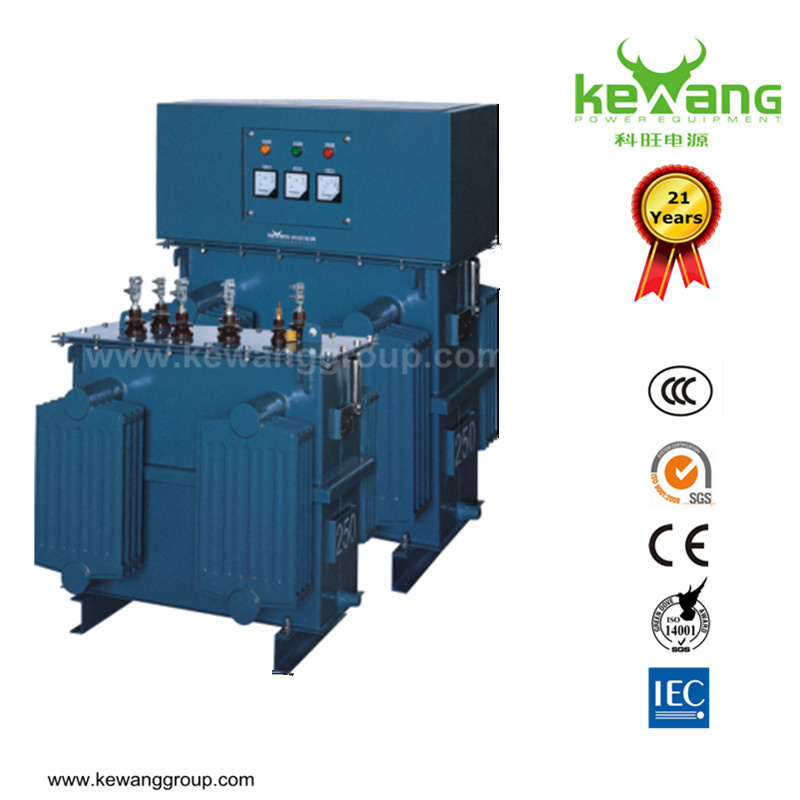

Oil Cooled Low Voltage Transformer
SO series low-voltage oil-immersed transformer has adopted high quality materials and advanced techniques. It's oil-cooled & it's made by vacuum paint immersion and strict quality inspection. It has the features of high efficiency, low loss, low noise, strong impact-resistance, highly reliable, good heat dissipation,long working life and adaptable to various loads.
It is suitable to imported equipment which voltage is different from standard voltage of Chinese Grid .
The voltage ranges: below 1000V;
Phase Number: single-phase / three-phase.
Function category: isolated transformer / auto transformer.
Transforming voltage of AC power, isolating supply, applying to different kinds of load. It can apply to the electronic products requesting the transforming of alternative current & voltage.
Input: |
three-phase |
480 V, 440 V, 420 V, 400 V, 380 V, 360 V; |
Output: |
three-phase |
220 V, 208 V, 200 V, 190 V, 173V, 120 V, 110 V, 100 V; |
Single-phase |
220 V, 200 V, 127 V, 120 V, 110 V, 100 V, 36 V, 24 V, etc. |
The series are distinguished into type I and type II; type I is capless,& type II is with cap & meter.
model | capacity (kVA) | Input voltage(v) | Output voltage(V) | Rated current(A) | The shape size(mm) | Weight |
| (L* W *H) | (kg) |
| SO-50 | 50 | 380 | 220 | 131 | 650*720*950 | 250 |
| SO-100 | 100 | 380 | 220 | 262 | 700*750*1000 | 350 |
| SO-150 | 150 | 380 | 220 | 393 | 750*850*1100 | 450 |
| SO-200 | 200 | 380 | 220 | 524 | 800*850*1200 | 550 |
| SO-250 | 250 | 380 | 220 | 656 | 900*1000*1200 | 650 |
| SO-300 | 300 | 380 | 220 | 787 | 1000*1050*1300 | 800 |
| SO-400 | 400 | 380 | 220 | 1049 | 1000*1100*1300 | 950 |
| SO-500 | 500 | 380 | 220 | 1312 | 1100*1100*1450 | 1100 |
| SO-600 | 600 | 380 | 220 | 1574 | 1100*1200*1450 | 1200 |
| SO-800 | 800 | 380 | 220 | 2099 | 1100*1250*1500 | 1450 |
| SO-1000 | 1000 | 380 | 220 | 2624 | 1250*1350*1650 | 1700 |
| SO-1250 | 1250 | 380 | 220 | 3280 | 1250*1450*1650 | 2000 |
| SO-1600 | 1600 | 380 | 220 | 4199 | 1250*1600*1750 | 2400 |
| SO-2000 | 2000 | 380 | 220 | 5248 | 1350*1650*1850 | 2800 |
Warning of Installation Environment:
Installation site should be no serious effect on the transformer insulating gas, steam, chemical deposition, dust, dirt, and other explosive corrosive medium; It cannot be installed in a condition of significant vibration turbulence
Please specify product model, rated capacity, output voltage, input voltage, input and output currents If you have any special needs, KW can produce customized transformer and voltage stabilizer as your demands.
