Oil Filled Sensor, Low Cost OEM, Piezoresistive Silicon Pressure Sensor

Name: Oil Filled Sensor, Low Cost OEM, Piezoresistive Silicon Pressure Sensor
Brand: all-electronics-online.com
SKU: 836845155
Availability: InStock
Rating: 4.5 (85 reviews)

Price:	US $ 9-15/Piece
Min Order:	50/Piece
Pay Type:	L/C,T/T,Western Union,Money Gram

Contact Supplier

Showroom Product Company Profile

Prod Model:	A11(RevA)

Product Description

Introduction
A11 series are based on piezoresistive silicon pressure sensors packaged in a 316L stainless steel housing. The sensing package utilizes silicon oil to transfer pressure from the 316L diaphragm to the sensing element.
It is designed for o-ring mounting for the applications where compatibility with corrosive media is required. Each sensor was strictly temperature compensated for both zero and span.
There are two options of excitation power -- current and voltage

Features&Application
Features Applications
• Low cost OEM • Process control
• Pressure range:0-40Kpa…7Mpa • Fresh and waste water measurements
• Wide operable temperature range -40-125ºC • Medical instruments
• Compatible with corrosive media • Pressure transmitters
• Standard mounting size
• Typical output:0-100mV

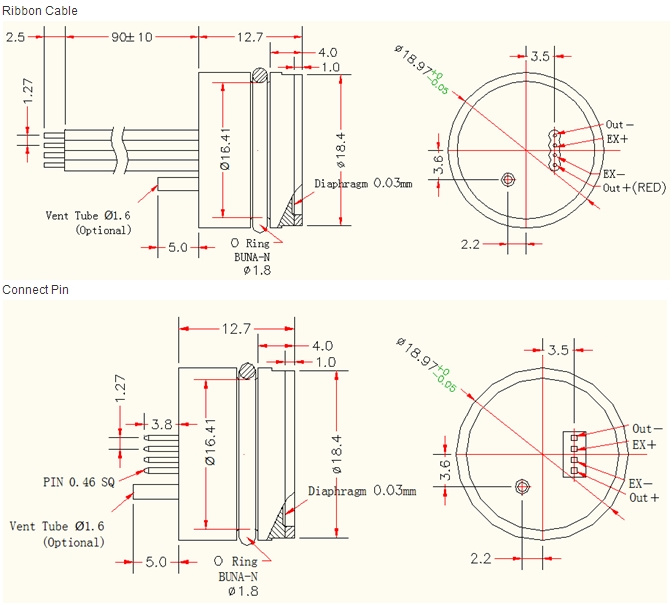

Dimensions(mm)

Remark:Ribbon Cable or Connect Pins are optional for all models

Specifications

Description

Remark

1. Best fit straight line.

2. Measured at vacuum for absolute (A), ambient for gage (G).

3. Maximum temperature range for product with standard cable is -20°C to +105°C.

4. Over the compensated temperature range with respect to 25°C.

5. Load resistance to reduce measurement errors due to output loading.

6. Between case and sensing element.

Certifications

Packaging & Shipping

Established in 2006, Nanjing Helm Sci-tech Co., Ltd. (Nanjing Jiucheng technology Co., Ltd) is specialized in R&D and production of pressure measuring and controlling instruments. It has introduced the internationally advanced production technology, equipment and process as well as strict product quality standards and ODM cooperation concept to China, so as to manufacture and sell JC pressure / differential pressure / liquid level sensors and transducers in mainland China.

Our products have been fallen into six categories totaling hundreds of specifications in dozens of series. Main products include: High-accuracy Pressure Sensor, General-purpose Pressure transducer, Liquid Level transducer, Anti-lightning/Anti-corrosive Liquid Level transducer, Special Pressure transducer for Air Conditioner, Refrigeration and Compressor, Special Pressure transducer for Oilfield and Mining Well, Economical Pressure Sensor and transducer, Ceramic Capacitor Pressure transducer, Vacuum Pressure transducer, Sapphire Pressure transducer, Digital Pressure transducer, Micro Differential Pressure / Air Pressure transducer, Intelligent Digital Pressure Gauge, Intelligent Digital Pressure Switch, Anti-corrosive Pressure transducer, Anti-explosive Pressure transducer, Hygienically Flat-membrane Pressure transducer, High-temperature Pressure transducer, High-frequency Pressure transducer, Micro Pressure transducer, Integrated Temperature transducer, and Capacitance Pressure transducer.
