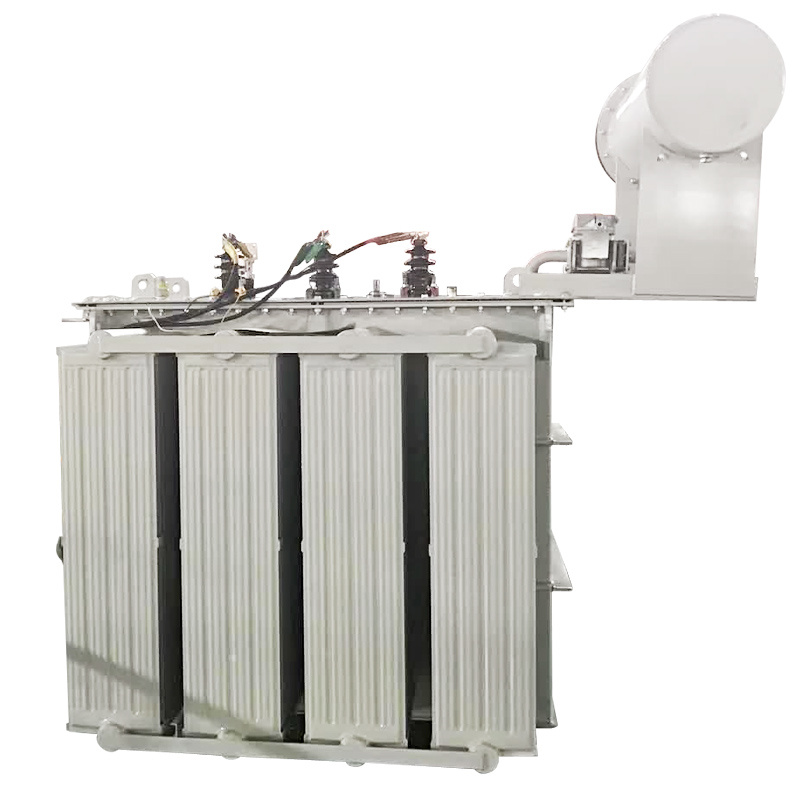

Oil Immersed 3 Phase Step up Step Down 100kVA Transformer
| Price: |
US $ 1900-19600/Set |
| Min Order: |
1/Set |
| Pay Type: |
L/C,T/T |
| Product Name: |
Step up Step Down 100kVA Transformer |
| Winding Material: |
Copper Winding |
| Rated Capacity: |
30 - 3500kVA |
| Iron Core: |
New Grain Oriented Silicon Steel Sheet |
| Coil Number: |
Autotransformer |
| Coil Structure: |
Toroidal |
| Frequency: |
50 or 60 Hz |
| Vector Group: |
Dyn11 or Yyn0 or Others |
| High Voltage: |
6-35kv |
| Type: |
Oil Immersed |
| Application: |
Power |
| Phase: |
Three |
| Coil: |
Core-type Transformer |
| Cooling Method: |
Oil-immersed Type Transformer |
| Winding Type: |
Auto-transformer |
| Certification: |
ISO9001:2008 |
| Usage: |
Power Grid System |
| Brand: |
Zhongyi |
Product Description
Specifications:
1.Insulation Electrical oil type transformers
2.IEC Standards
3.High efficiency,low loss,low noise
4.Long lifetime
5.Copper winding or alluminum winding
|
China manufacturerl Oil immersed 3 phase transformer step up step down 100kva transformer
Product Description About Oil Immersed 3 Phase Step up Step Down 100kVA Transformer
1. Rated voltage: 6.3kV,10kV,11kV,13.2kV,13.8kV,15kV, 20KV, 22KV, 33KV,35KV
2. Rated power: 30kva ~ 25000kva or customized
3. Stardard: IEC60076,GB1094-1996
4. Frequency: 50HZ /60HZ
5. Vector group: Dyn11, Yyn0, Ynd11, or others
6. Cooling: ONAN/ ONAF/ OFAF
7. Tap changer: 3 levels; 5 levels; 7 levels; 13 levels; 17 levels
8. Rating plate:: Yes (Zhongyi or Customer brand)
9. Corrugated refrigeration panels: Yes ( Four sides of the transformer shell)

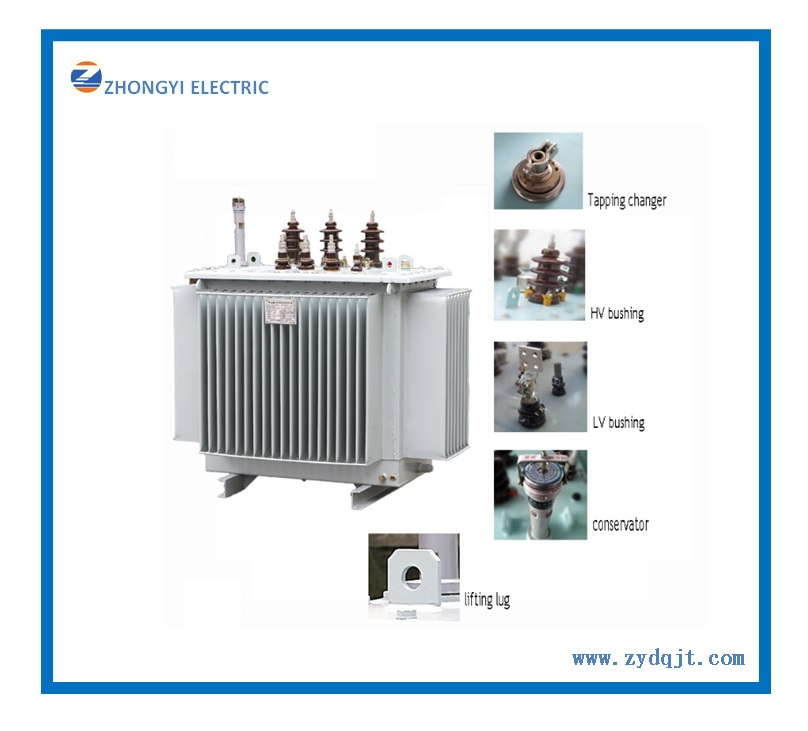

10. Parts: 1)Oil draining valve 2)Oil level indicator 3)Thermometer
With the company's unique calculation program, the iron core, coil, body, leading wire, fuel tank and other components for the 35kV class power and distribution transformers are optimized in all directions to ensure product performance, excellent process equipment, careful material optimization, efficient manufacturing, making the transformer with low loss, low partial discharge, low noise etc., the product quality is superior, with energy saving and environmental protection, reliable operation and effectively reduce the operating costs.
The iron core material is selected from high-quality high magnet conductive cold-rolled silicon steel sheet, the iron core processing uses German-imported Georg line cutting device, with the full-gradient ladder joint structure, no hole banding, plate-type clamping part structure.
Coil Structure:
The high and low voltage coil is packed according to the split phase. The design pressure is evenly compressed to ensure the coil axial strength.
The inner coil is lined with high-strength phenolic paper tube. The internal and external struts are used on the high and low voltage coil, technically making ensure enough tightening of the coil radial.
The exposed wires inside the transformer are insulated. Add the leading wire support point, reinforce the strength of leading wire support frame and shell. The leading wire connection adopts cold crimping technology.
Crimping Technology:
Transformer wires use the oxygen-free copper and high-strength insulation material.
Oil Tank Manufacturing:
Transformer tank adopts bucket type or bell-type. Model "F" is for the side blowing and air-cooled type. The sealing rubber uses "0" type of the overall structure to ensure that no leakage occurs.
All the gas collection pipelines on the top cover of the bell jar adopt the slope structure leading to the gas relay.
The fuel tank takes shape by compression molding of reinforcing ribs. The cushion blocks for the jack are 4 pieces and are marked with oil paint. The structure layout of transformer is reasonable, beautiful. The inner wall of the fuel tank is coated with epoxy resin paint. and the external wall of the tank paints the high-quality silver power coating.

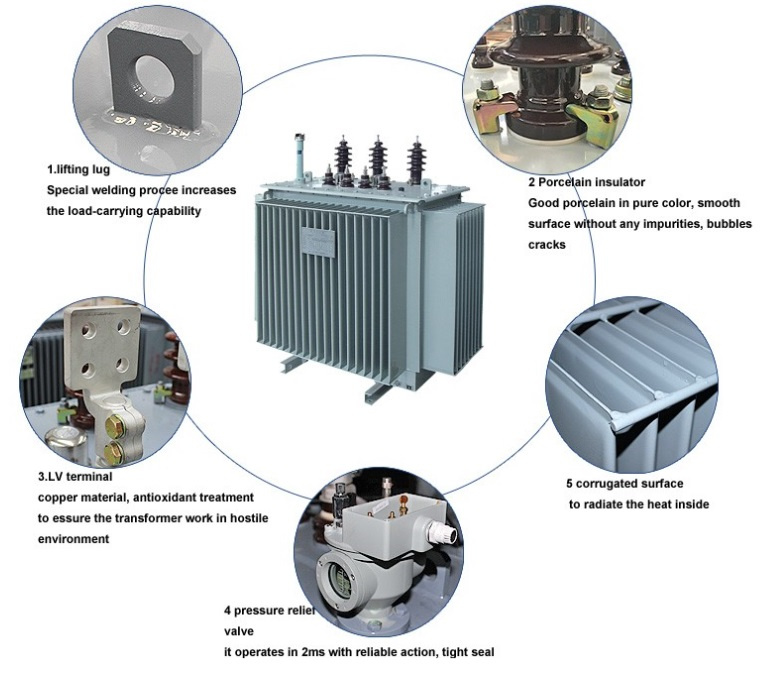

The transformer explosion-proof device uses YSF8-type pressure relief valve.
Applications This product is suitable for the core structures in power plants, substations, large-scale industrial and mining and petrochemical enterprises.
Technical Parameters Technical Parameter for Oil Immersed 3 Phase Step up Step Down 100kVA Transformer
| Rated capacity(KVA) | Voltage Combination | Connection Group Symbol | No-load Loss(W) | Load Loss (W)75ºC | No-load Current (%) | Short-circuit Impedance(%) |
| High Voltage (KV) | Tapping ranges of High Voltage | Low Voltage(KV) |
| 30 |
20 |
±5%
±2×2.5% |
0.4 |
Dyn11
| 90 | 660 | 2.1 |
5.5 |
| 50 | 130 | 960 | 2.0 |
| 63 | 150 | 1145 | 1.9 |
| 80 | 180 | 1370 | 1.8 |
| 100 | 200 | 1650 | 1.6 |
| 125 | 240 | 1980 | 1.5 |
| 160 | 290 | 2420 | 1.4 |
| 200 | 330 | 2860 | 1.3 |
| 250 | 400 | 3350 | 1.2 |
| 315 | 480 | 4010 | 1.1 |
| 400 | 570 | 4730 | 1.0 |
| 500 | 680 | 5660 | 1.0 |
| 630 | 810 | 6820 | 0.9 |
6.0 |
| 800 | 980 | 8250 | 0.8 |
| 1000 | 1150 | 11330 | 0.7 |
| 1250 | 1350 | 13200 | 0.7 |
| 1600 | 1630 | 15950 | 0.6 |
| 2000 | 1950 | 19140 | 0.6 |
| 2500 | 2340 | 22220 | 0.5 |
Notes: The Dimension and weight will be changed according to the requirements. These two data in the table will be subject to the factory documents.
Related Products
Company Information Baoding Zhongyi Electrical material Manufacturing Co., Ltd. is located in Baoding City,Hebei Province,China. Our company covers an area of 30,000 square meters, the building area of 16,000 square meters. The registered capital of the company is RMB 81,000,000.

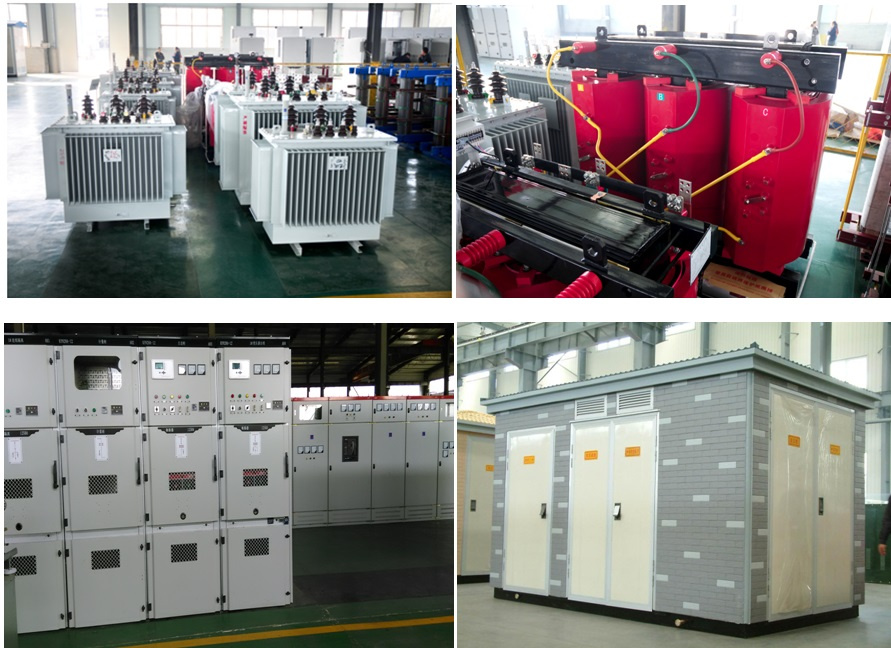

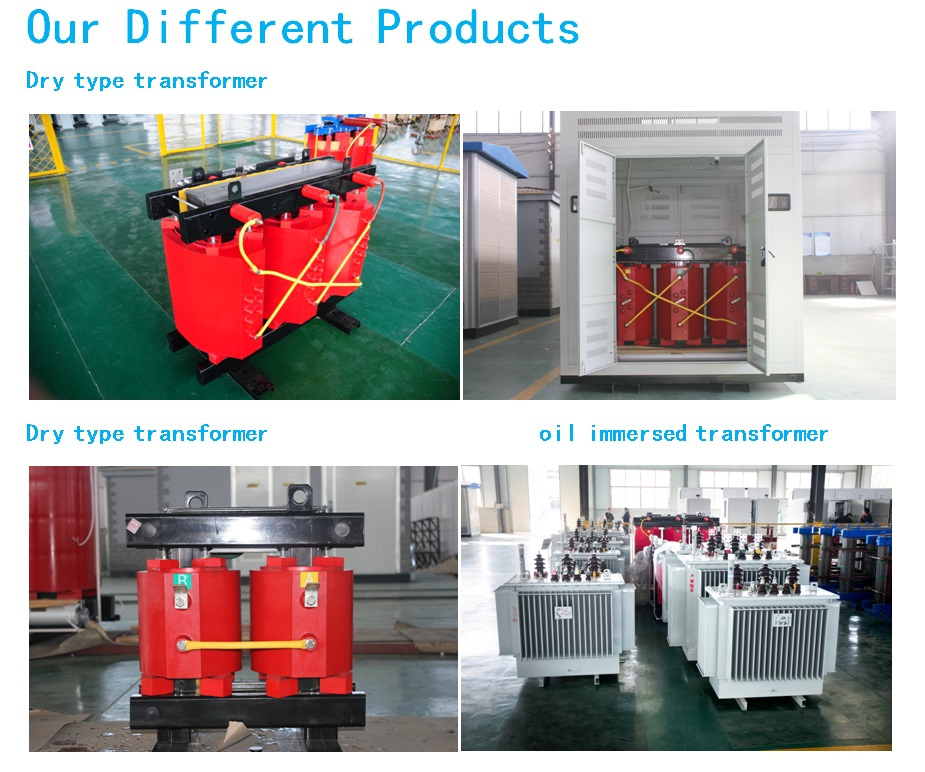

The company mainly produces:oil immersed step up step down transformers,
dry-type transformers,
box-type substation,
high and low voltage switchgear assembly
and a variety of special-type transformers.
The hoisting, tooling and testing equipments are complete. Our company has passed the ISO9001-2015 international standard quality management system certification. All performance indicators of the products have reached the relevant national standards and international standards.

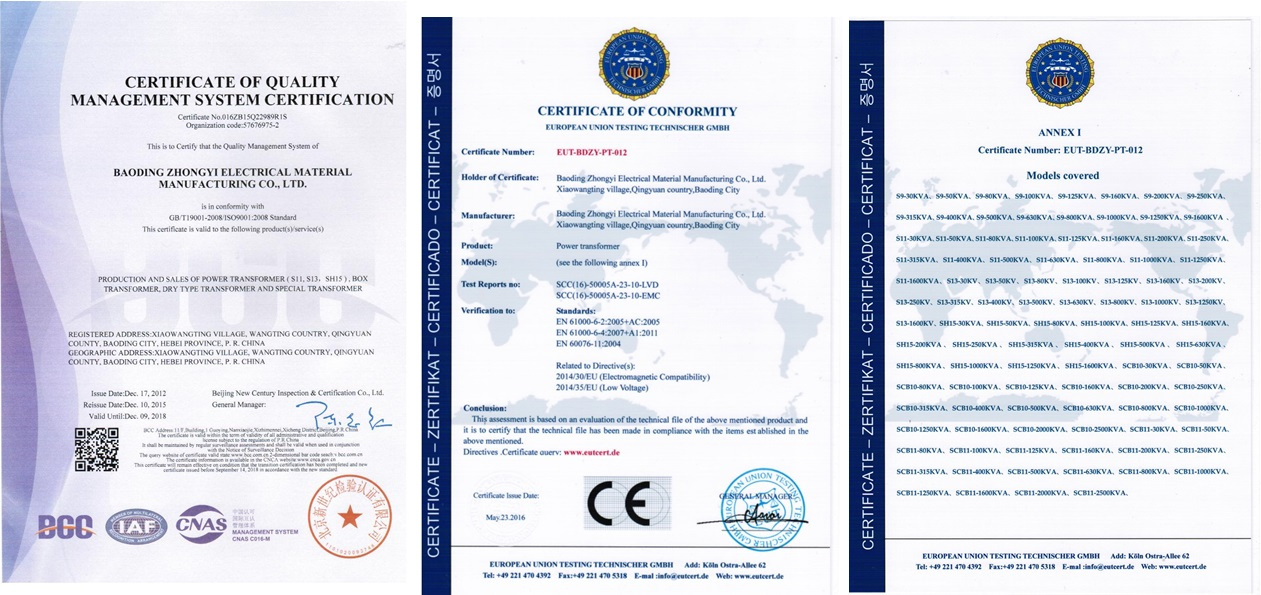

Certifications
Packaging & Shipping Packing:
1. Wrapped with plastic film.
2. Fixed in a wooden case.
3. Wooden case on a pallet.
4. Iron shelf
5. Special packaging: According to customer's requirement
Delivery Details : 10-20 days according to order quantities
FAQ
Q: Are you trading company or manufacturer ?
A: We are factory.
Q: How long is your delivery time?
A: Generally it is 5-10 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to quantity.
Q: Do you provide samples ?
A: Yes, we could offer the sample
Q: What is your terms of payment ?
A: 30% T/T in advance ,balance before shippment.
How to order:| Number | Data for Transformer |
| 1 | Type of transformer |
| 2 | Rated capacity |
| 3 | Input voltage/ Output voltage |
| 4 | Phase number |
| 5 | Frequency |
Baoding Zhongyi Electrical Material Manufacturing Co., Ltd. is located at the beautiful Baiyangdian Science and Technology Town in Baoding City, with an advantageous geographical location and convenient transportation. Our company covers an area of 30, 000 square meters, the building area of 16, 000 square meters. The registered capital of the company is RMB 81, 000, 000.
The company mainly produces: Oil-immersed power transformers, dry-type transformers, box-type substation, high and low voltage switchgear assembly and a variety of special-type transformers. The hoisting, tooling and testing equipments are complete. Our company has passed the ISO9001-2015 international standard quality management system certification. All performance indicators of the products have reached the relevant national standards and international standards.
The oil-immersed power transformers and dry-type transformers have passed the Test Report of the National Supervision and Inspection Center for Energy-saving Product Quality; Complete sets of low voltage switchgear (GGD2) (GCK) has passed the Test Report of China Compulsion Certification (CCC) from the State Bureau of Quality and Technical Supervision for Electrical Products; Indoor AC dray-out type metal clad switchgear KYN28A-12 / 1250-31.5, fixed AC metal-enclosed ring network cabinet XGN15-12 / 1250-31.5 and XGN15 metal-enclosed switchgears have passed the Test Report of the National Quality Supervision and Inspection center for High-voltage Electrical Appliances Product.
Our company's products are widely used in different industries, involving power plants, chemicals, construction, mining, metallurgy, rail transportation and so on, best meeting the needs of various users.
Baoding Zhongyi Electrical Material Manufacturing Co., Ltd. Follows the enterprise purpose of the "details determine the success or failure, integrity casts the future", abides by the business philosophy of the "integrity based, to be innovative ambitious", we'll warmly treat our customers as always and continuously provide quality products and services to your satisfaction.
