| Prod Model: |
Oil-immersed Distribution Transformers 30~2500KVA |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Rated High Voltage: |
11,10.5,10,6.3,6kv |
| High Voltage Tapping Range: |
±5%,±2*2.5% |
| Rated Low Voltage: |
0.4,0.415,0.433kv |
| Capacity Range: |
30kVA~2500kVA |
| Efficiency: |
>95% |
| Export Markets: |
Global |
| Winding Coupling: |
Yna0 Dyn11 |
| Relative Humidity: |
<90% |
| Application: |
Audio |
| Coil: |
Shell-type Transformer |
| Cooling Method: |
Oil-immersed Type Transformer |
| Winding Type: |
Two-winding Transformer |
| Phase: |
Medium Voltage Transfomer |
| Brand: |
Kewang |
Product Description

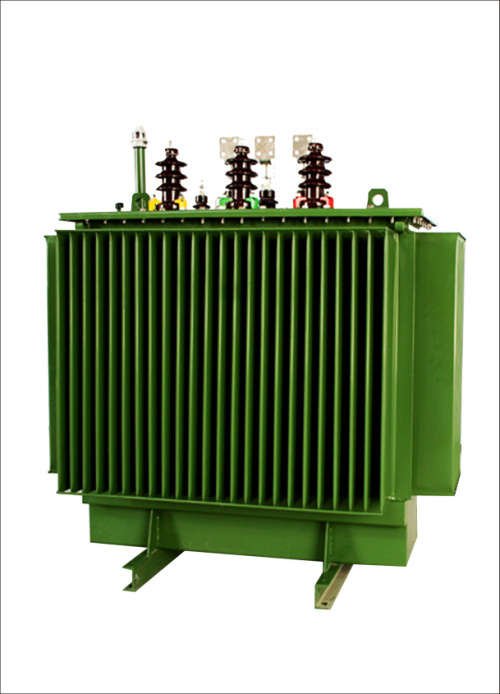

Oil-immersed Distribution Transformers
Product Introduction:
Oil-immersed Medium Voltage Transformer is totally closed ,without oil
storage cabinet ,which is lower than the transformers of the same kind.
Applied vacuum impregnating process, which removed the humidity of oil
tank completely; Oil and air don't contact each other, there's no
need to do oil sample test regularly.Leads of high voltage and low
voltage,body of transformers and other fastening parts are with screw nut;
we adopted no hanging core structure, transformer body and oil
tank are cooperated closely , which help transformers to bear the vibrationand
turbulence caused by transportation.The transformers adopted the ripple style ,
which has breath function ,and theelasticity of ripple style can compensate the
oil volume changes caused
by temperature changes;
Application:
High-rise buildings, commercial centers, city squares, hospitals, schools,
airports, railway stations, port terminals, subway, power plants, oil field,
chemicals, tunnels and other places.
Features:
Tow winding ,non-exciting regulation ,fully sealed;
With good insulation performance, reliable; It can be run under harsh environment;
Small size, light weight, easy installation and good economic performance;
Good overload capacity, low loss, low temperature, low noise;
High level of resistance to lightning impulse;
Specifications:
Rated capacity
(kVA) | No-load loss
(W) | Load loss
(W) (75ºC) | No-load current | Short- circuit impedance | Weight(kg) | Base gauge | Overall dimensions |
| Oil weight | Machine weight | Total Weight | (W*D*H)mm |
| (mm) |
| 30 | 100 | 600 | 0.8 | 4 | 100 | 150 | 355 | 550×550 | 790×580×950 |
| 50 | 130 | 870 | 0.75 | 4 | 125 | 240 | 480 | 550×550 | 880×640×1000 |
| 63 | 150 | 1040 | 0.7 | 4 | 125 | 300 | 500 | 550×550 | 900×650×1020 |
| 80 | 180 | 1250 | 0.7 | 4 | 140 | 340 | 510 | 550×550 | 940×660×1040 |
| 100 | 200 | 1500 | 0.65 | 4 | 155 | 380 | 650 | 550×550 | 970×690×1060 |
| 125 | 240 | 1800 | 0.65 | 4 | 175 | 410 | 740 | 550×550 | 980×710×1140 |
| 160 | 280 | 2200 | 0.6 | 4 | 210 | 470 | 850 | 550×550 | 1030×730×1170 |
| 200 | 340 | 2600 | 0.6 | 4 | 240 | 540 | 990 | 550×550 | 1080×750×1190 |
| 250 | 400 | 3050 | 0.5 | 4 | 260 | 640 | 1150 | 550×550 | 1130×840×1230 |
| 315 | 480 | 3650 | 0.45 | 4 | 330 | 745 | 1330 | 550×550 | 1400×800×1300 |
| 400 | 570 | 4300 | 0.4 | 4 | 340 | 890 | 1490 | 550×550 | 1420×820×1380 |
| 500 | 680 | 5150 | 0.4 | 4 | 350 | 990 | 1680 | 660×660 | 1590×1050×1400 |
| 630 | 810 | 6200 | 0.4 | 4.5 | 440 | 1180 | 2050 | 660×660 | 1600×1000×1480 |
| 800 | 980 | 7500 | 0.4 | 4.5 | 480 | 1300 | 2250 | 660×660 | 1700×1100×1550 |
| 1000 | 1150 | 10300 | 0.3 | 4.5 | 580 | 1470 | 2620 | 820×820 | 1850×1200×1600 |
| 1250 | 1360 | 12000 | 0.25 | 4.5 | 640 | 1800 | 3250 | 820×820 | 1800×1250×1700 |
| 1600 | 1640 | 14500 | 0.25 | 4.5 | 875 | 2200 | 3950 | 820×820 | 2000×1300×1800 |
| 2000 | 1960 | 17820 | 0.2 | 5 | 1040 | 2650 | 5050 | 820×820 | 2100×1350±1900 |
| 2500 | 2310 | 20700 | 0.15 | 5 | 1400 | 3150 | 5850 | 820×820 | 2350×1450×2250 |
Specifications
Kewang Group is one of the largest professional provider and leader in the new energy and power distribution filed in China whose business covers power devices for Wind power, Solar power, and Natural Gas Energy. It's dedicated to R&D, manufacturing, sales & engineering of high/ low voltage transmission, distribution devices & related power devices. Moreover, it provides integrated solutions for enterprises power supply, data center, and distributed new energy. Kewang has been serving for royal customers over 40 countries, with recognized good quality & professional service.
As a leading power supply company, Kewang Group had taken the lead to be qualified with the ISO9001 quality system certification & ISO14001 environment system certification, and the CCC China mandatory certification. Our products are qualified with European CE certification and American UL certification. We had taken 11 projects nominated by the local government: 4 of which had won government's scientific prizes, and over 30 patents had been achieved. We keep consistent cooperation with South China University of Technology and Wuhan University. With the introduction of high class technical talents, we integrate various resources for R&D, quality& management improvement-- these cooperation enable us to set up strong advantages in techniques, talents & brand promotion.
Product line:
1. Customized Transformer & Reactor for application of UPS, PV Inverter, Electrical Car Station, etc.
2. RlS Series Contactless Intelligent type Voltage Stabilizer
3.1kw-5kw Smart Solar Energy Storage System with built in Inverter and Battery
4. DBW/SBW Dry type Voltage Regulator
5. SE series Air-cooled Transformer
6. UPS
7. Generator Set
