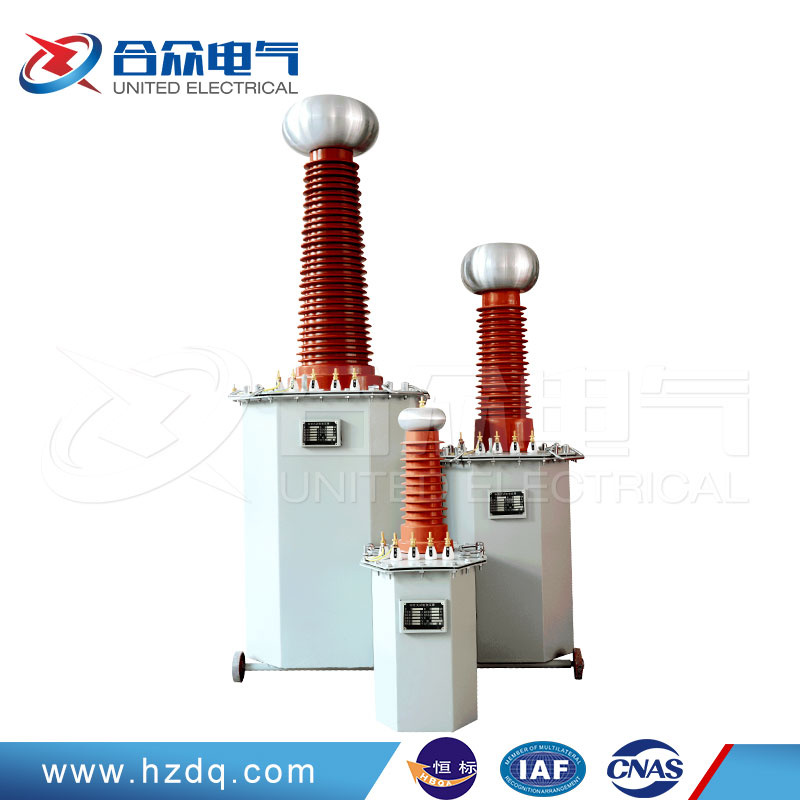

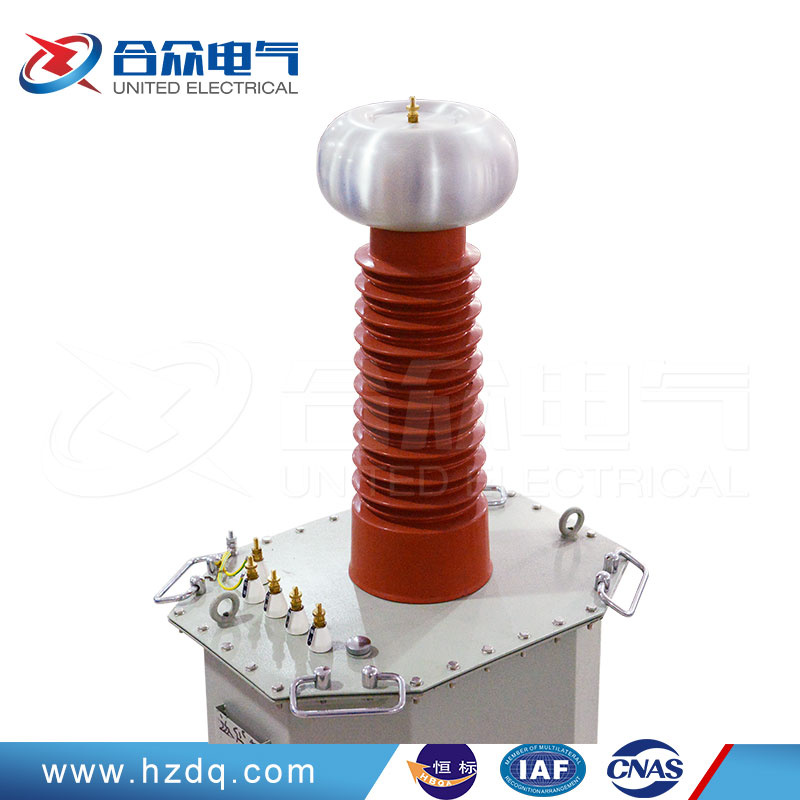

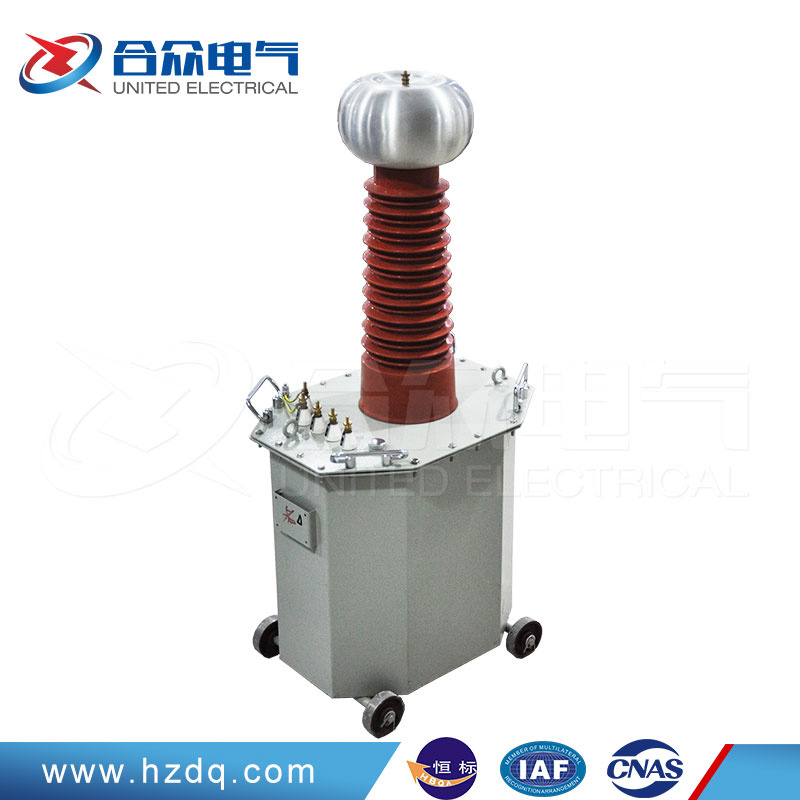

Oil Immersed High Voltage Test Transformer DC/AC Power Frequency
| Price: |
Negotiable/Piece |
| Min Order: |
1/Piece |
| Pay Type: |
L/C,T/T |
| Prod Model: |
YDJ |
| Capacity: |
5kVA—500kVA |
| Output Voltage: |
5kv-300kv |
| Voltage Accuracy: |
±0.5 |
| Current Accuracy: |
±0.5 |
| Data Storage: |
60 Groups |
| Language: |
Can Be Customized |
| Application: |
Rectifier |
| Phase: |
Three |
| Coil: |
Shell-type Transformer |
| Cooling Method: |
Dry-type Transformer |
Product Description
Product features
1,Tight-structured, stable and durable, economy.
2,Connection is simple and easy to use.
3,Thermostatic vacuum oiling process, insulation performance is better.
4,Reliable insulation and good appearance.
5,Small volume, light weight, complete function.
6,DC output can be converted according to usage requirements.
7,Can be customized according to user needs.
Product parameters| Specification | Capacity(kVA) | High Voltage(kV) | High Voltage Current | Low Voltage Input | Ratio(high voltage/meter) | Temperature Rise(30min) |
| Voltage(V) | Current(A) |
| 1.5/50 | 1.5 | 50 | 30 | 200 | 7.5 | 500 | 10 |
| 3/50 | 3 | 50 | 60 | 200 | 15 | 500 | 10 |
| 5/50 | 5 | 50 | 100 | 200 | 25 | 500 | 10 |
| 10/50 | 10 | 50 | 200 | 200 | 50 | 500 | 10 |
| 20/50 | 20 | 50 | 400 | 400 | 50 | 500 | 10 |
| 30/50 | 30 | 50 | 600 | 400 | 75 | 500 | 10 |
| 50/50 | 50 | 50 | 1000 | 400 | 125 | 500 | 10 |
| 5/100 | 5 | 100 | 50 | 200 | 25 | 1000 | 10 |
| 10/100 | 10 | 100 | 100 | 200 | 50 | 1000 | 10 |
| 20/100 | 20 | 100 | 200 | 400 | 50 | 1000 | 10 |
| 300/200 | 300 | 200 | 1500 | 400 | 750 | 2000 | 10 |
| 50/300 | 50 | 300 | 170 | 400 | 125 | 3000 | 10 |
| Note: can customize product according to user needs |
