Oil-Immersed Laminated-Core Energy-Saving Transformer Series/Power Distribution Transformer
| Price: |
US $ 300/Set |
| Min Order: |
1/Set |
| Pay Type: |
L/C,T/T,Western Union |
| Application: |
Rectifier |
| Phase: |
Three |
| Coil: |
Core-type Transformer |
| Cooling Method: |
Oil-immersed Type Transformer |
| Winding Type: |
Auto-transformer |
| Brand: |
Gse |
Product Description

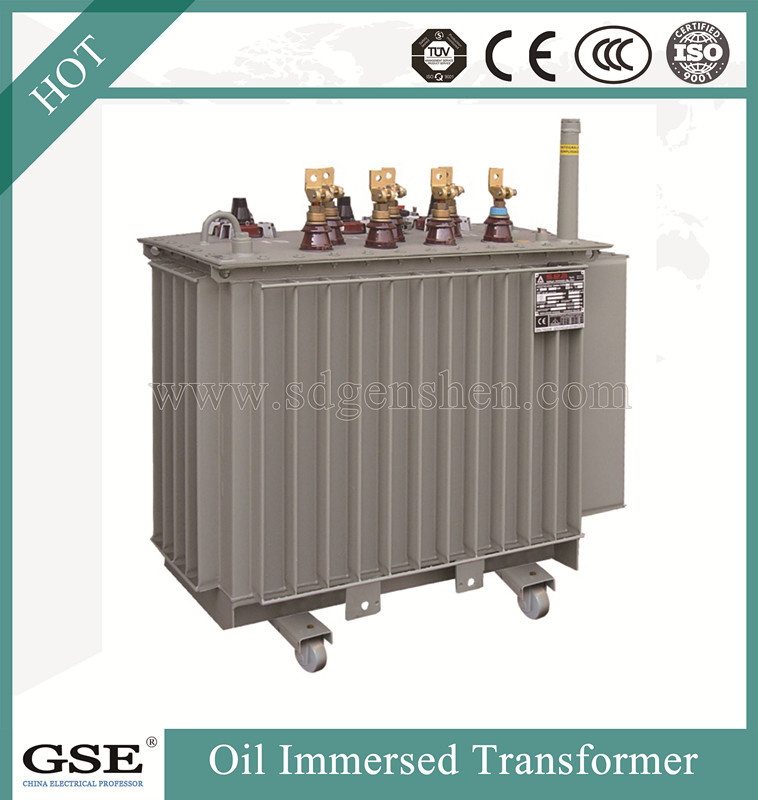

Oil-immersed laminated-core energy-saving transformer series/power distribution transformer
The partner of State Grid Corporation
The partner of National Railway Administration of China
ISO9001, TUV, and CE standard
1.General Characteristics
The transformers electrical design results mainly from:
• Power rating,
• Primary and secondary voltage levels,
• Ambient temperature and temperature rise,
• Altitude of installation,
• Short-circuit impedance,
• Vector group,
• No load losses,
• Load losses,
• Frequency,
• Permissible tolerances,
• Other particular conditions.

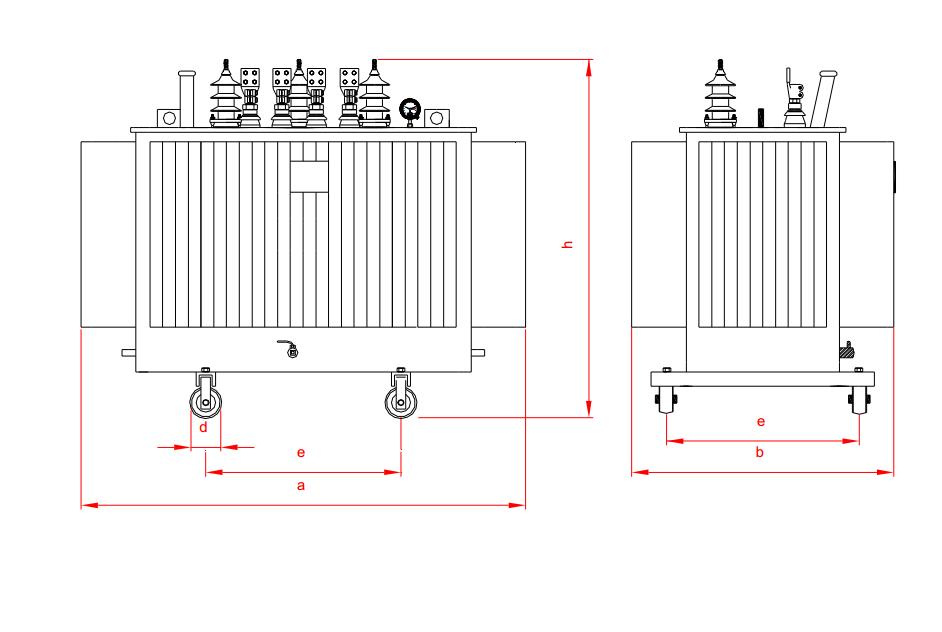

| KVA | Voltage | VECTOR GROUP | LOSSES | No-Load Current | Weight(kg) | Overall dimension (mm) |
| H.V(KV) | L.V(KV) | No-Load Loss | Load Loss | | Oil Weight | Total Weight | L | W | H |
| 20 |
6
6.3
10
10.5
11
13.2 |
380
400
415
433 |
YynO Dyn11 Yzn11 | 90 | 530 | 2.3 | 55 | 230 | 720 | 440 | 855 |
| 30 | 100 | 600 | 2.1 | 75 | 305 | 750 | 500 | 990 |
| 50 | 130 | 870 | 2.0 | 80 | 405 | 800 | 480 | 1030 |
| 63 | 150 | 1040 | 1.9 | 95 | 455 | 830 | 615 | 1060 |
| 80 | 180 | 1250 | 1.9 | 105 | 510 | 840 | 580 | 1115 |
| 100 | 200 | 1500 | 1.8 | 120 | 530 | 890 | 645 | 1145 |
| 125 | 240 | 1800 | 1.7 | 130 | 670 | 910 | 600 | 1185 |
| 160 | 280 | 2200 | 1.6 | 140 | 810 | 910 | 700 | 1280 |
| 200 | 340 | 2600 | 1.5 | 160 | 890 | 1000 | 760 | 1240 |
| 250 | 400 | 3050 | 1.4 | 175 | 1020 | 1285 | 730 | 1290 |
| 315 | 480 | 3650 | 1.4 | 185 | 1170 | 1280 | 740 | 1385 |
| 400 | 570 | 4300 | 1.3 | 215 | 1410 | 1310 | 750 | 1432 |
| 500 | 680 | 5100 | 1.2 | 260 | 1645 | 1365 | 765 | 1510 |
| 630 | 810 | 6200 | 1.1 | 310 | 2070 | 1485 | 815 | 1615 |
| 800 | 980 | 7500 | 1.0 | 370 | 2445 | 1640 | 930 | 1590 |
| 1000 | 1150 | 10300 | 1.0 | 425 | 2800 | 1860 | 1120 | 1630 |
| 1250 | 1360 | 12000 | 0.9 | 480 | 3320 | 1860 | 1120 | 1830 |
| 1600 | 1640 | 14500 | 0.8 | 550 | 4175 | 1975 | 1175 | 1900 |
2.StandardsMany electrical international committees have defined standards for electrical equipment, including transformers.
The IEC, BS, NF and DIN standards are the most applied standards for transformers and for some of their parts.
In every country, the local electric authorities have adopted one of these standards or created one that suits the needs, laws and regulations of their country.3.ApplicationDistribution transformers are the end equipment before electricity reaches the consumer. They provide low voltage by transforming the network medium voltage.
In most cases, transformers are designed as liquid filled particularly as oil immersed type.
These transformers have usually a power ranging from 50 to 2500kVA, with a maximum operating voltage of 36kV.4.Mechanical Features4.1Hermetically sealed or breathing tank
For Distribution Transformers, the default construction is the hermetically sealed non-rigid tank completely filled. Air cushion in used with rigid tanks. The variation of oil volume, due to its temperature variation, is absorbed in the flexible fins of the corrugated panels, and in the air cushion when applicable.
Breathing tank with conservator is also a possible configuration.
4.2. Tank types
The transformer tank is usually of a non rigid structure with corrugated panels, designed to withstand the mechanical stresses, absorb the oil expansion, and meet the thermal evacuation constraints.
For power rating above 3150kVA, the tank is usually designed with rigid structure, cooling radiators and conservator.
4.3. Cover
For distribution transformers, covers are made of steel plates with bended edges, thus improving the esthetical aspect and reinforcing the cover which is especially important when untanking the unit.
Accessories are mounted on the cover through adequate connectors. Multifunction holes can be provided to receive different type of accessories.
For example, on the same hole, alternatively a DMCR or a pressure relief valve or a thermometer can be mounted.
4.3. Magnetic circuit
The magnetic circuit is of the three legs construction, Step lap.or GT.
It is made out of a cold rolled, grain oriented silicon steel strips, each strip (0.23, 0.27or 0.30mm thick) being insulated from both sides by Carlite.

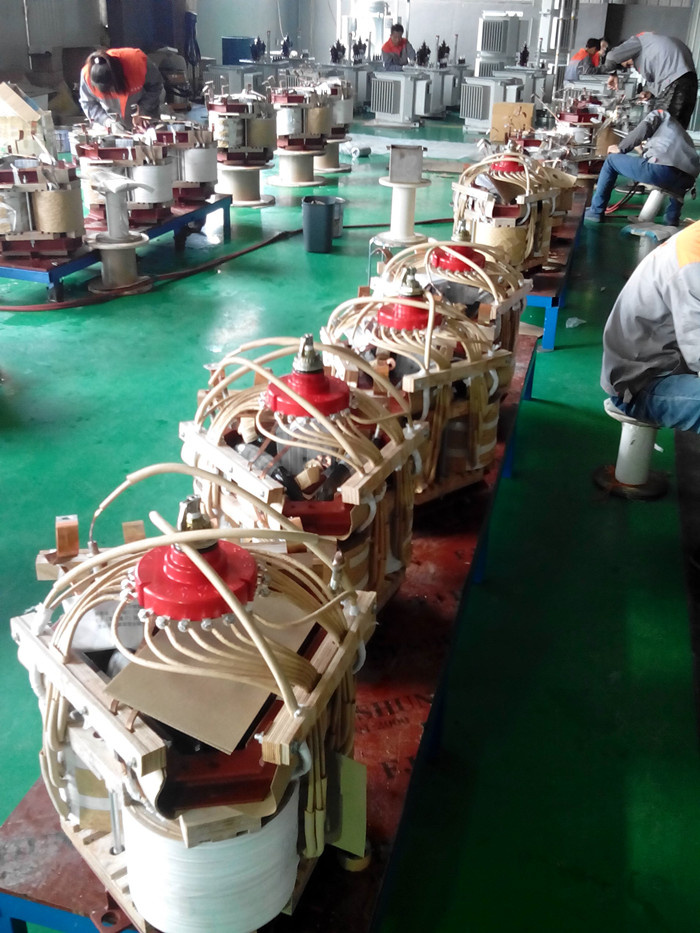

4.5. Winding coils
Both the primary and secondary windings are made of copper or aluminum.
The primary voltage is directly wound on the secondary voltage winding, with insulating barriers and cooling channels between the two windings.
Secondary voltage coils are of rectangular wires or foil conductors. Primary voltage coils are of round enamelled wires, or rectangular paper insulated wires for high power ratings, or round paper insulated wires.
Adequate channels for oil circulation are integrated in the windings to provide an efficient cooling and limit the hot spot temperature.
4.6.Cooling liquid
By default, transformer oil according to IEC 60296-03 specifications is used as cooling medium. Other fire resistant insulating liquids with fire points above 300ºC are also available on special request.
For distribution transformers, the primary filling is done under vacuum in order to assure the high penetration of oil. Final filling is made to adjust the appropriate oil level on delivery.
4.7.Tests
Typical test values and performances are performed in the painting lab on steel plates during the whole painting process in order to confirm the following:
• Minimum paint thickness film (ISO 2808): 70µm
• Specular gloss factor at 60 Deg (ISO 2813): 90 +/- 5%
• Falling weight test (ISO 6272): 1Kg/050cm
• Erichsen cupping test (ISO 1520): 08mm
• Scratch test (Adhesion ISO 2409): 0
• Bend Test (cylindrical mandrel ISO 1519): 3,0mm

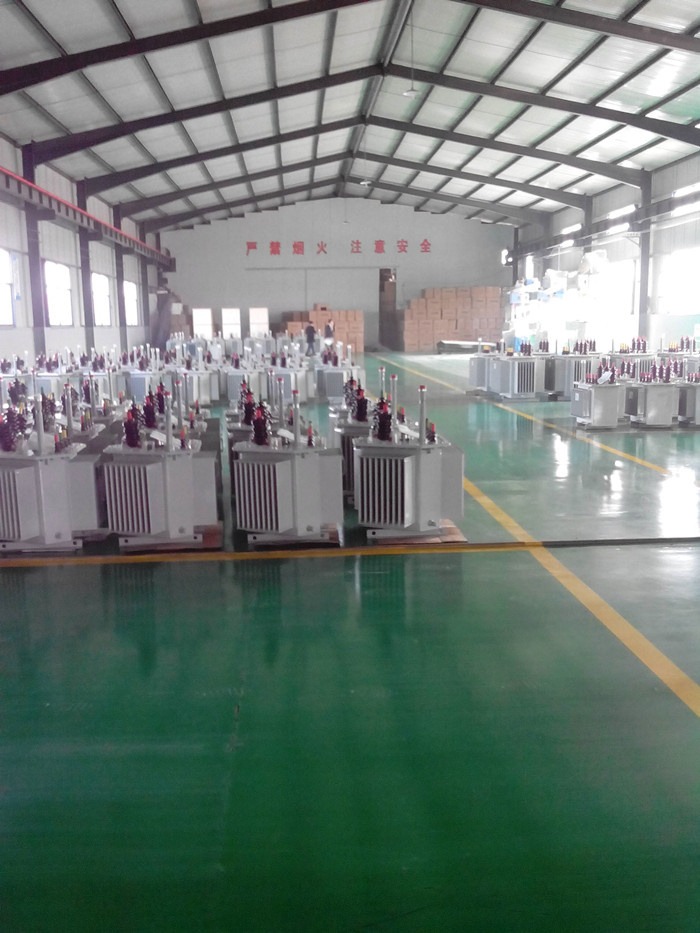

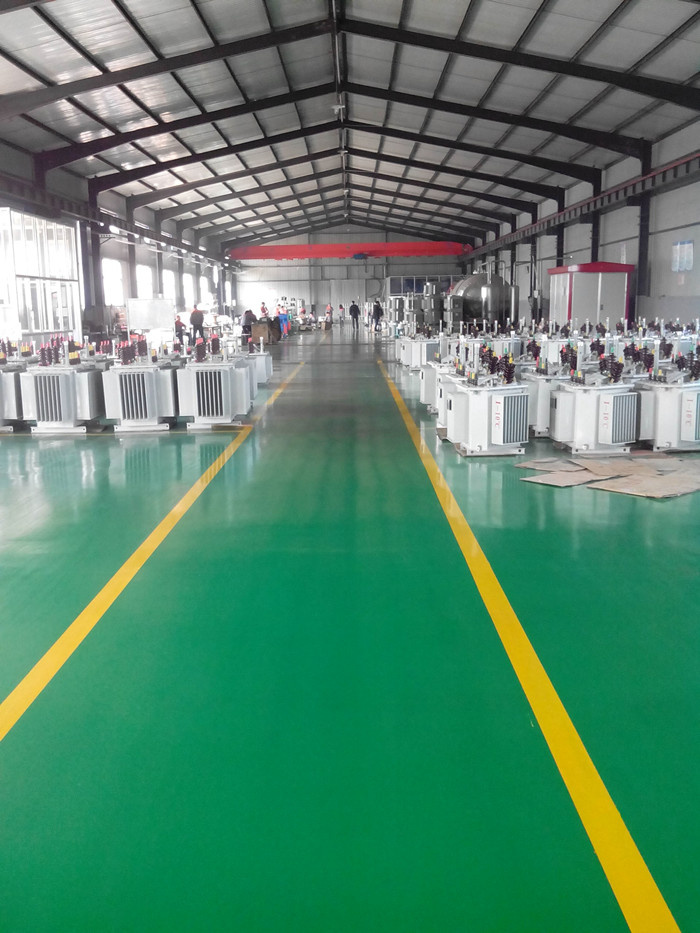

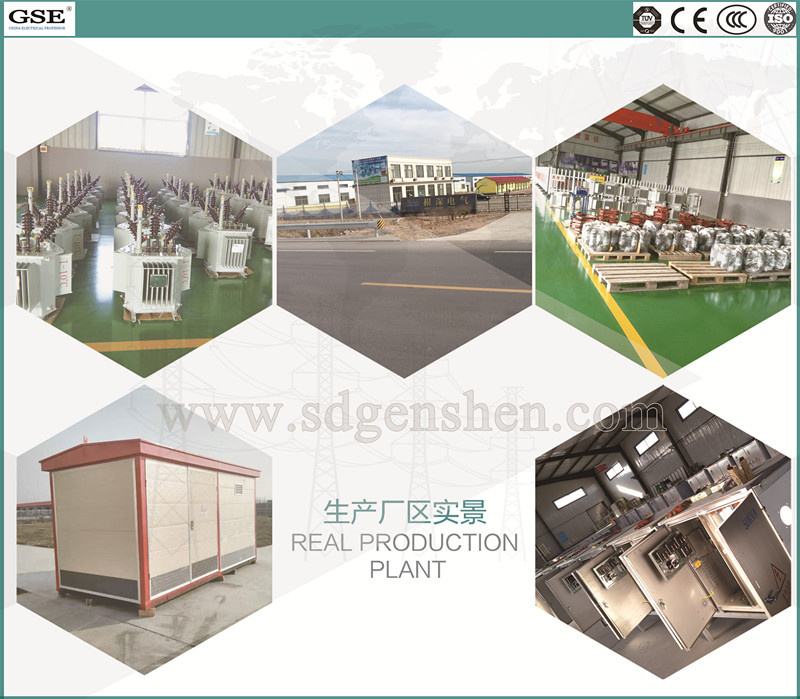

• Salt spray (Fog) test (ISO 7253): Over 1000 Hours 5.Factory showIt is one of the most professional and famous expertise in North China. With major business of power distribution equipment, power transformer euipment, box-type substation, electricity measuring and high-voltage metering device, as well as the power device, instruments&meters, measuring box with GRP and PC+ABS material, charging equipment for electric car, photovoltaic power generation(without generator set) and wind power generation equipment both in producing and selling. For a 3C authentication factory by nationality and already got the ISO9001 quality management system, OHSAS18001 occupation health and safety management system and ISO14001 environment certification.
6.Our Advantages6.1, The most favorable offer from professional factory with assurance quality for you!
6.2, Cooperate with the State Grid Corporation of China many years!
6.3, All your question will be kindly feedback in 24 hours all the time!
6.4, No MQQ limit and all the related certification is available!
6.5, We promised that more profit and pleasure will be got once business relationship established between
us!
6.6, Welcome to visit our factory and your precious advise is expecting forever!7.ContactShandong Yangxin Genshen Electric Co., Ltd.
Qingdao Yaoutongxing International Trading Co., Ltd.(subsidiary)
Website: www.sdgenshen.com
www.asia-european.com
Attn: Tony (sales manager)
Ph: 0086135 615 19737
Add: Zhoushang Development Zone,Yangxin Binzhou city, China.
Room 2202, Longhaimingzhu Mansion, Laoshan District, Qingdao city China.
Shandong Province Yangxin Genshen Electric Co., Ltd was founded in 2012 and her subsidiary, Qingdao Yaoutongxing International Trading Co. Ltd, is founded in Qingdao. Registered capital of 50 million yuan, covers an area of 50 acres, production workshop 15000 square meters, 150 employees, annual sales reached about 80000000 yuan is a high-tech enterprise integrating a production, sales and system, company to the electric meter box, cable casing, high and low voltage electrical switchgear, transformer, box type substation, cable branch box, distribution box, ring network cabinet, JP cabinet, power distribution box, low voltage reactive power compensation control cabinet, electric energy metering box, high voltage metering device, porcelain insulator, composite insulator, transformer oil, electrical equipment, instrumentation, and insulated wire wire and cable, communication cable, cable accessories, monitoring equipment, electrical fittings and electrical equipment processing, glass steel material with sheath (SMC), PC+ABS material metering box system Products, electric vehicle charging equipment, photovoltaic power generation equipment (excluding generators), wind power equipment production and sales is one of the strongest influence and expertise in North China enterprises, is the ISO9001 quality management system, OHSAS18001 occupation health and safety management system and ISO14001 environmental management system certification, 3C certification enterprises.
The company is located 14 kilometers west of Yangxin County, the provincial highway and the intersection of the 317 provincial highway in the north, from the Binzhou-Dezhou freeway 3 km, strategic location, convenient transportation, and the transportation is convenient, and the transportation is convenient. Company covers an area of 26934.7 square meters, production workshop covers an area of 50 million square meters, office area of 2000 square meters, . With advanced production lines, testing equipment, thereby ensuring the quality of products, the formation of the development, testing to mass production of modern industrial production scale.
The company spirit of "technology and development, quality of survival" principle, adhere to the "customer first, quality first" purpose; Follow the "from the society and serving the society" the principle of "service above all, responsibility weightier than Mount Tai" for the purpose. We are committed to the prosperity and development of electric power and security. We sincerely welcome customers both at home and abroad to come and visit us.
