| Prod Model: |
S11-13M |
| Application: |
Rectifier |
| Phase: |
Three |
| Coil: |
Core-type Transformer |
| Cooling Method: |
Oil-immersed Type Transformer |
| Winding Type: |
Auto-transformer |
| Brand: |
Gse |
Product Description
The partner of State Grid Corporation
The partner of National Railway Administration of China
ISO9001, TUV, and CE standard
Oil Immersed Power Distribution Transformer/Electric Transformer with CE And TUV standard
1.Features
Applications: mainly used as the power supply for electrolysis, electroplating, electric processing, high-voltage rectifier, power transmission, steel and other industries.
Characteristics: strong ability to resist sudden short circuit and overload. It has high overexcitation capability and stable performance.
2.Technical parameter
| Parameter(S11-30~1600/10 Oil-immersed transformer) |
Rating
(kVA) | HV
(kV) | LV
(kV) | Connection
symbol | No-load
Current(%) | No-load
Losses(W) | On-load
Losses(120ºC) | short-circuit
impedance(%) | Track
Distance | Body
weight
(kg) | Oil
(kg) |
|
| 30 | 6
6.3
10
10.5
11
±5%
or
±2×2.5% | 0.4 | Dyn11
Yyn0
Yzn11 | 2.0 | 100 | 630/600 | 4 | 400.0 | 130 | 55 |
| 50 | 1.9 | 130 | 910/870 | 200 | 75 |
| 63 | 1.8 | 150 | 1090/1040 | 250 | 75 |
| 80 | 1.6 | 180 | 1310/1250 | 280 | 80 |
| 100 | 1.5 | 200 | 1580/1500 | 320 | 90 |
| 125 | 1.4 | 240 | 1890/1800 | 340 | 95 |
| 160 | 1.3 | 280 | 2310/2200 | 550.0 | 440 | 110 |
| 200 | 1.2 | 340 | 2730/2600 | 520 | 130 |
| 250 | 1.1 | 400 | 3200/3050 | 610 | 150 |
| 315 | 1.0 | 480 | 3830/3650 | 670 | 160 |
| 400 | 1.0 | 570 | 4520/4300 | 840 | 190 |
| 500 | 0.9 | 680 | 5410/5150 | 990 | 210 |
| 630 | Dyn11
Yyn0 | 0.8 | 810 | 6200 | 4.5 | 660 | 1140 | 280 |
| 800 | 0.7 | 980 | 7500 | 1430 | 320 |
| 1000 | 0.6 | 1150 | 10300 | 820 | 1470 | 360 |
| 1250 | 0.5 | 1360 | 12000 | 1770 | 400 |
| 1600 | 0.5 | 1640 | 14500 | 2210 | 440 |

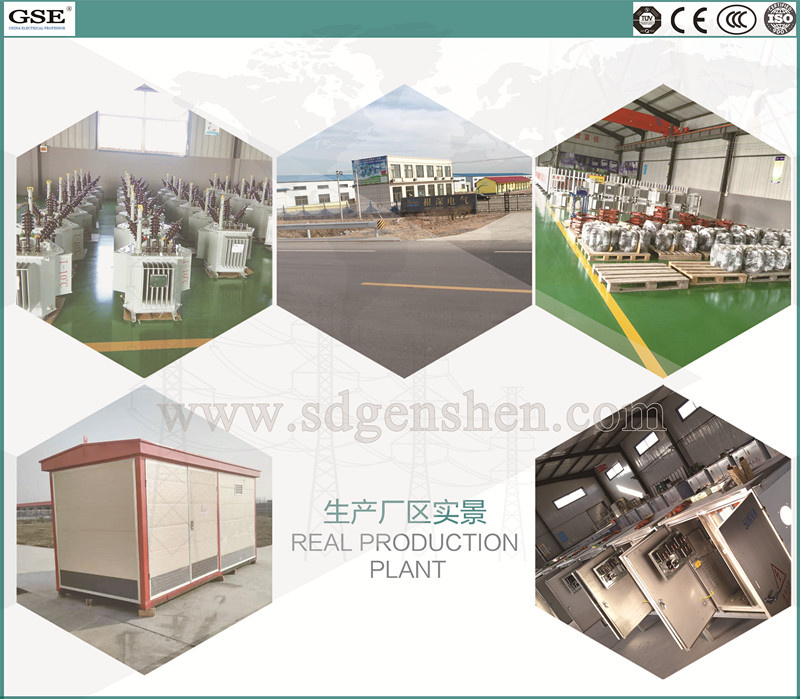

3.Factory show
It is one of the most professional and famous expertise in North China. With major business of power distribution equipment, power transformer euipment, box-type substation, electricity measuring and high-voltage metering device, as well as the power device, instruments&meters, measuring box with GRP and PC+ABS material, charging equipment for electric car, photovoltaic power generation(without generator set) and wind power generation equipment both in producing and selling. For a 3C authentication factory by nationality and already got the ISO9001 quality management system, OHSAS18001 occupation health and safety management system and ISO14001 environment certification.
4.Certificate
5.Our Advantages
5.1, The most favorable offer from professional factory with assurance quality for you!
5.2, Cooperate with the State Grid Corporation of China many years!
5.3, All your question will be kindly feedback in 24 hours all the time!
5.4, No MQQ limit and all the related certification is available!
5.5, We promised that more profit and pleasure will be got once business relationship established between
us!
5.6, Welcome to visit our factory and your precious advise is expecting forever!6.RFQ6.1.Q: Are you manufacturer?
A: Yes, we are manufacturer. Our factory is in Binzhou City, Shandong Province.
6.2.Q: Can I get guarantee of products?
A: Yes, every product is 1 year quality warrantee under customer correct using the products.
6.3.Q: Do you have any Certificate?
A: Yes. Each of our unit has CCC certificate. All the electric parts with CE certificate, If you need any other Certificate, we can help you to get it.
6.4.Q: How to buy it? What about the delivery?
A: Please contact me by email or online, let me know your situation, I will give you professional solution.We have shipping agent can choosing the cheapest and fastest delivery. FOB,CIF, C&F or EXW are no problem for us.
6.5.Q: How can I pay you?
A: T/T, L/C is very well used.
6.6.Q: What about the production?
A: Produce time is 4~6weeks.
6.7.Q: Could you offer some spare parts?
A: Yes, no problem.
6.8.Q: What about the maintenance?
A: All the goods past the test, maintenance is very easy.7
7.Contact
Should you have any problem,please contact with us,we will reply to you in 24 hour.
