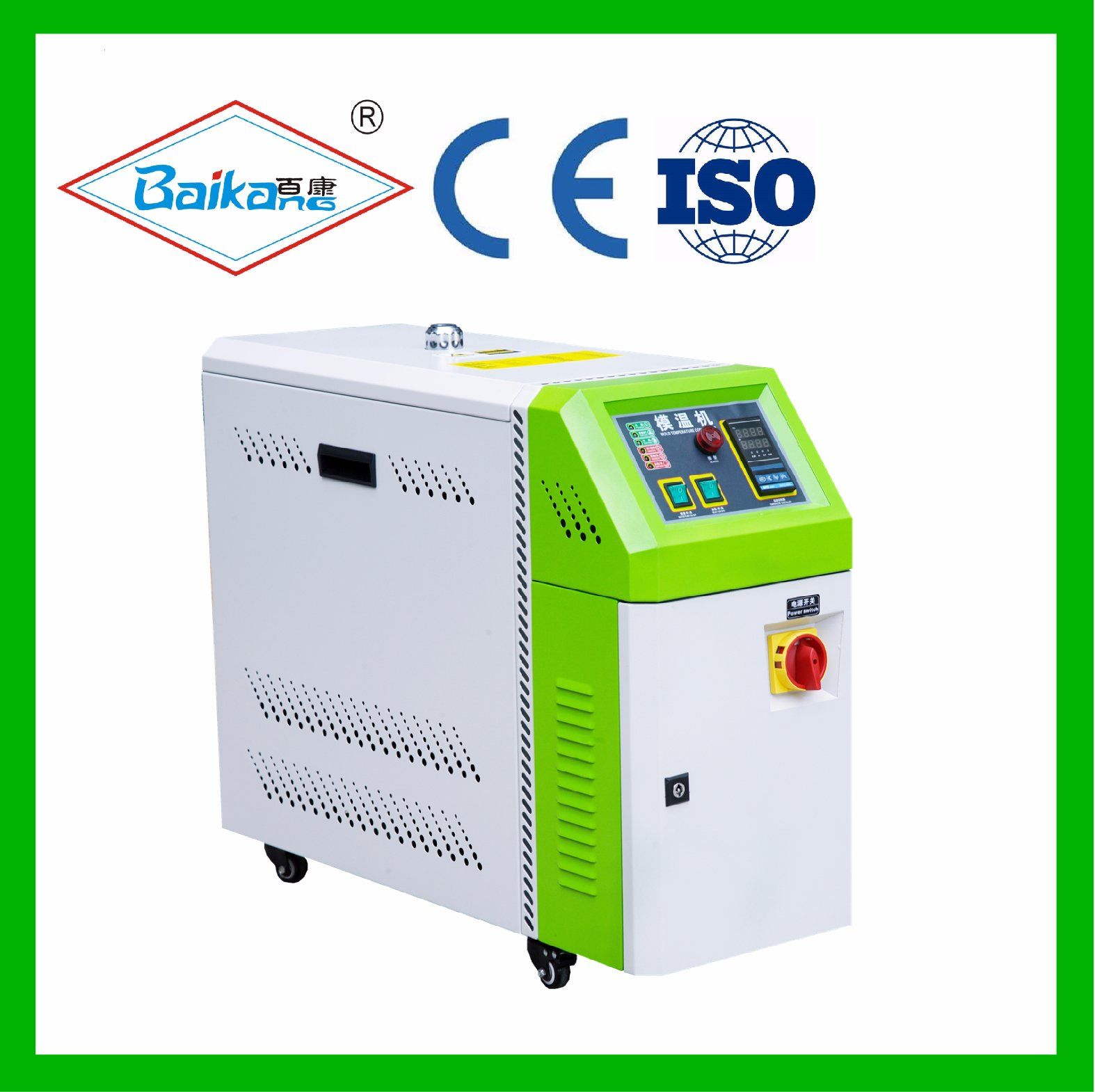

Oil Mold Temperature Controller Bk-O48h
| Price: |
US $ 2000-10000/Piece |
| Min Order: |
1/Piece |
| Pay Type: |
T/T |
| Prod Model: |
BK-O48H |
| Weight: |
240 Kg |
Product Description
Oil mold temp controller 300ºC~350ºC Technical data| Model | BK-O9H | BK-O12H | BK-O18H | BK-O24H | BK-O36H | BK-O48H |
| Heat transfer medium | Heat transfer Oil |
| Heating capacity | 300~350ºC |
| Power | AC3PH-380V/460V 50HZ/HZ |
| Cooling method | Indirect cooling |
| Heater Power | kw | 9 | 12 | 18 | 24 | 36 | 48 |
| Pump | power(HP) | 2 | 2 | 3 | 4 | 4 | 5 |
| pressure (kg/cm) | 2.8 | 2.8 | 2.8 | 3 | 3 | 3.2 |
| flow (L/min) | 100 | 100 | 167 | 167 | 167 | 267 |
| Cooling water pipe diameter | 1/2 | 3/4 |
| Heat medium pipe diameter | 3/8*4 | 3/8*4 | 3/8*4 | 3/4 | 1 | 1-1/2 |
| Oil tank volume (L) | 40 | 40 | 40 | 60 | 60 | 60 |
| Safety protection | Oil level protection/High temperature protection/ phase and phase sequence protection / motor overload protection |
| Dimension | L(MM) | 1150 | 1150 | 1150 | 1150 | 1250 | 1580 |
| W(MM) | 480 | 480 | 480 | 480 | 500 | 600 |
| H(MM) | 1100 | 1100 | 1100 | 1100 | 1200 | 1400 |
| weight(KG) | 110 | 125 | 150 | 180 | 200 | 240 |
| The above specifications are subject to change, without notice, special specifications can be designed and manufactured separately. |
Oil mold temp controller 300ºC~350ºC Technical data| Model | BK-O60H | BK-O72H | BK-O96H |
| Heat transfer medium | Heat transfer Oil |
| Heating capacity | 300~350ºC |
| Power | AC3PH-380V/460V 50HZ/HZ |
| Cooling method | Indirect cooling |
| Heater Power | kw | 60 | 72 | 96 |
| Pump | power(HP) | 7.5 | 10 | 15 |
| pressure (kg/cm) | 4 | 4.5 | 4.8 |
| flow (L/min) | 420 | 500 | 750 |
| Cooling water pipe diameter | 3/4 |
| Heat medium pipe diameter | 1-1/2 | 2 | 2-1/2 |
| Oil tank volume (L) | 80 | 80 | 100 |
| Safety protection | Oil level protection/High temperature protection/ phase and phase sequence protection / motor overload protection |
| Dimension | L(MM) | 1580 | 1780 | 1850 |
| W(MM) | 600 | 700 | 700 |
| H(MM) | 1400 | 1500 | 1680 |
| weight(KG) | 320 | 380 | 480 |
The above specifications are subject to change, without notice, special specifications can be designed and manufactured separately. Product feature:
Heat conducting medium:- High temperature heat conduction oil as a circulating medium, uniform temperature rise, the use of higher temperature, accurate temperature control (blowing back to the oil optional)..
Main configuration:- The machine overall used 3D design, more reasonable layout. Sheet metal chassis combined with Europeanization, surface color fastness high polyester powder spraying, strong ability,.
- The mechanical heating box and the electric control box body use the ventilation isolation design, causes the electrical appliance service life to be long.
- The piping system is made up of 304 sanitary stainless steel materials, which are completed by multi - step operation, such as numerical control bending, welding, pressure testing, polishing, cleaning and so on.
- Special design of heating pipe, the use of nickel chromium alloy heating wire, alloy seamless stainless steel precision manufacturing, never rust, longer life!
- BY-PASS hot oil pressure relief circuit.
- Built in oil tank with oil level alarm and oil level indicator.
- high quality low noise pump (change the pump power / magnetic pump / pump shaft / optional according to customer demand).
- LCD microcomputer multi function P.I.D intelligent automatic temperature controller, continuous work safety temperature control 35ºC~350ºC, temperature control accuracy ±1ºC
- Import brand contactor, better stability (solid state relay optional).
- Safeguard:
- There is a fault automatic sound and light alarm shutdown, over temperature automatic shutdown cooling, power supply phase, reverse phase protection, lack of oil protection, hot oil pump overload protection, etc...
Application industry:injection molding / printing / reactor / rubber / drum rolling / extrusion / material drying and conveying industries temp control.
