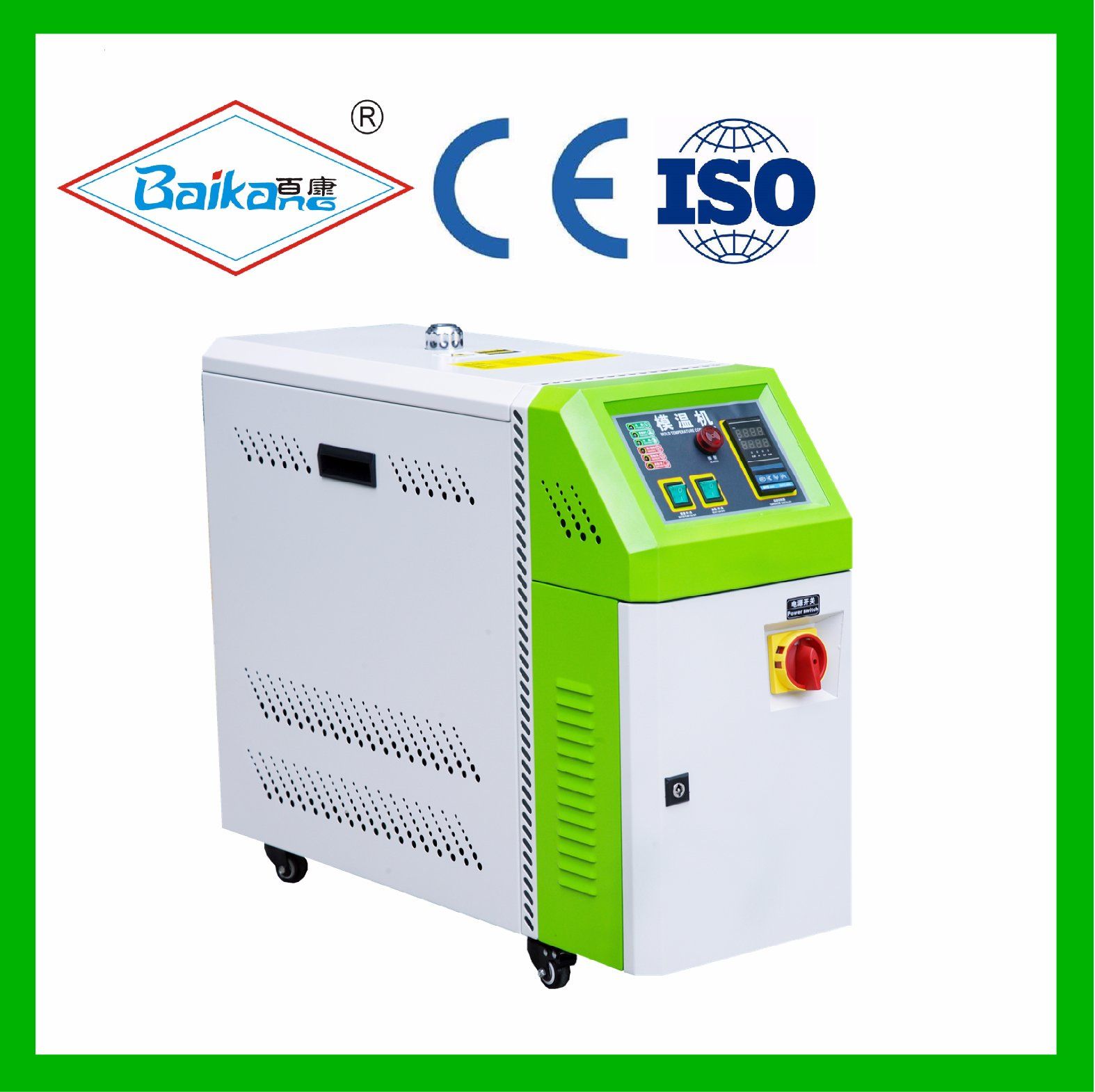

Oil Mold Temperature Controller Bk-O9
| Price: |
US $ 665.5/Piece |
| Min Order: |
1/Piece |
| Pay Type: |
T/T |
| Prod Model: |
BK-O9 |
| Weight: |
57 Kg |
Product Description
| Oil mold temp controller 200ºC(Single type) Technical data |
| Model | BK-O6 | BK-O9 | BK-O12 | BK-O18 | BK-O24 | BK-O36 | BK-O48 |
| Heat transfer medium | Heat transfer Oil |
| Heating capacity | 200ºC |
| Power | AC3PH-380V/460V 50HZ/HZ |
| Cooling method | Indirect cooling |
| Heater Power | kw | 6 | 9 | 12 | 18 | 24 | 36 | 48 |
| Pump | power(HP) | 0.5 | 1 | 1 | 2 | 3 | 5 | 5 |
| pressure (kg/cm) | 2.5 | 3.5 | 4 | 3 | 3 | 4.5 | 4.5 |
| flow (L/min) | 35 | 45 | 45 | 80 | 380 | 450 | 450 |
| Cooling water pipe diameter | 1/2, |
| Heat medium pipe diameter | 2*3/8 | 4*3/8 | 4*3/8 | 6*3/8 | 6*3/8 | 1.2' | 1.2' |
| Oil tank volume (L) | 8 | 8 | 8 | 15 | 15 | 30 | 30 |
| Safety protection | Oil level protection/High temperature protection/ phase and phase sequence protection / motor overload protection |
| Dimension | L(MM) | 1010 | 1010 | 1010 | 1050 | 1050 | 1050 | 1050 |
| W(MM) | 330 | 330 | 330 | 380 | 380 | 480 | 480 |
| H(MM) | 720 | 720 | 720 | 900 | 900 | 1000 | 1000 |
| weight(KG) | 51 | 57 | 65 | 98 | 110 | 156 | 178 |
The above specifications are subject to change, without notice, special specifications can be designed and manufactured separately.Product feature:
Heat conducting medium:- High temperature heat conduction oil as a circulating medium, uniform temperature rise, the use of higher temperature, accurate temperature control (blowing back to the oil optional)..
Main configuration:- The machine overall used 3D design, more reasonable layout. Sheet metal chassis combined with Europeanization, surface color fastness high polyester powder spraying, strong ability,.
- The mechanical heating box and the electric control box body use the ventilation isolation design, causes the electrical appliance service life to be long.
- The piping system is made up of 304 sanitary stainless steel materials, which are completed by multi - step operation, such as numerical control bending, welding, pressure testing, polishing, cleaning and so on.
- Special design of heating pipe, the use of nickel chromium alloy heating wire, alloy seamless stainless steel precision manufacturing, never rust, longer life!
- BY-PASS hot oil pressure relief circuit.
- Built in oil tank with oil level alarm and oil level indicator.
- high quality low noise pump (change the pump power / magnetic pump / pump shaft / optional according to customer demand).
- LCD microcomputer multi function P.I.D intelligent automatic temperature controller, continuous work safety temperature control 35ºC~350ºC, temperature control accuracy ±1ºC
- Import brand contactor, better stability (solid state relay optional).
- Safeguard:
- There is a fault automatic sound and light alarm shutdown, over temperature automatic shutdown cooling, power supply phase, reverse phase protection, lack of oil protection, hot oil pump overload protection, etc...
Application industry:injection molding / printing / reactor / rubber / drum rolling / extrusion / material drying and conveying industries temp control.
