| Prod Model: |
S11 |
| Winding Material: |
Copper Winding |
| Iron Core: |
New Grain Oriented Silicon Steel Shee |
| Coil Structure: |
Toroidal |
| Vector Group: |
Dyn11 or Yyn0 or Others |
| Rated Capacity: |
30 - 3500kVA |
| Coil Number: |
Autotransformer |
| High Voltage: |
6-35kv |
| Application: |
Electronic |
| Phase: |
Three |
| Coil: |
Core-type Transformer |
| Cooling Method: |
Oil-immersed Type Transformer |
| Winding Type: |
Two-winding Transformer |
| Brand: |
Zhongyi |
Product Description
★Product Description
The products implement the National Standard GB1094-2013 Power Transformer and GB / T6451-2015 Three-phase Oil-immersed Power Transformer Technical Parameters and Requirements, and are recommended as the major equipment products for the national urban and rural power grid construction and retrofit by the State Economic and Trade
Commission.

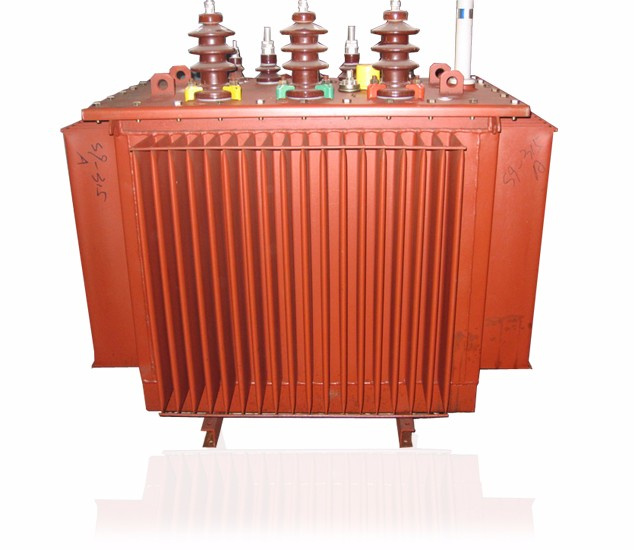

S11 series transformer is one kind of low loss copper winding product.It adopts high quality material, especially applying the new technology and new material to the insulation of the coil and transformer body, thus the no-load and the load loss are obviously reduced, the performance and structure are more reliable and superior.
|
★Product Features
!Good Economic!Performance Based on S9 series, the no-load loss for S11 series products decreased averagely 10.3%, no-load current decreased 22.4%.
!Long Service Life!Transformer tank adopts fully sealed structure, fuel tank and tank rim can be connected by bolts or welded firmly, the transformer oil doesn't contact with the air, extending the service life.
!High Operational Reliability!Improve the relevant sealing parts for the fuel tank, increase the reliability and advance the technical level to ensure the reliability of the seal.
!Small Installation Area!S11-M series of transformer tank uses the corrugated plate radiator.When the oil temperature changes, the corrugated board expands from the heat and contracts from the cold, which can replace the role of the oil conservator, the corrugated plate type fuel tank has beautiful appearance, less occupied area. |
★Technical Parameter of S11 Series 10KV Non-excitation Voltage-regulating Transformer
Model No. | Voltage Combination | Connection Group Symbol | No-load Loss | Load Loss | Impedance Voltage (%) | No-load Current(%) | Length L(mm) | Width W (mm) | Height H(mm) | Distance between shafts Horizontal*Vertical
(mm) | Body Weight(Kg) | Oil Weight(Kg) | Total Weight
(Kg) |
| High Voltage | Tapping Range of High Voltage | Low Voltage |
| S11-30/10 |
6
6.3
10
10.5 |
±5%
±4×2.5% |
0.4 |
Yyn0(or) Dyn11 | 0.1 | 0.6 |
4.0 | 2.8 | 980 | 735 | 1145 | 400*400 | 178 | 78 | 355 |
| S11-50/10 | 0.13 | 0.87 | 2.5 | 1017 | 758 | 1205 | 450*400 | 240 | 92 | 415 |
| S11-63/10 | 0.15 | 1.04 | 2.4 | 1035 | 785 | 1285 | 450*400 | 285 | 105 | 505 |
| S11-80/10 | 0.18 | 1.25 | 2.2 | 1065 | 800 | 1290 | 450*400 | 330 | 110 | 540 |
| S11-100/10 | 0.2 | 1.5 | 2.1 | 1072 | 820 | 1305 | 450*400 | 345 | 116 | 590 |
| S11-125/10 | 0.24 | 1.8 | 2.0 | 1155 | 1105 | 1310 | 450*550 | 415 | 135 | 705 |
| S11-160/10 | 0.28 | 2.2 | 1.9 | 1235 | 850 | 1535 | 550*550 | 485 | 155 | 835 |
| S11-200/10 | 0.34 | 2.6 | 1.8 | 1282 | 860 | 1557 | 550*550 | 582 | 168 | 965 |
| S11-250/10 | 0.4 | 3.05 | 1.7 | 1310 | 940 | 1605 | 550*550 | 695 | 210 | 1135 |
| S11-315/10 | 0.48 | 3.65 | 1.6 | 1465 | 1120 | 1915 | 660*650 | 855 | 255 | 1520 |
| S11-400/10 | 0.57 | 4.3 | 1.5 | 1440 | 1165 | 1725 | 660*660 | 950 | 295 | 1590 |
| S11-500/10 | 0.68 | 5.15 | 1.4 | 1510 | 1250 | 1845 | 660*650 | 1150 | 320 | 1905 |
| S11-630/10 | 0.81 | 6.2 | 1.3 | 1650 | 1140 | 1920 | 660*650 | 1500 | 435 | 2015 |
| S11-800/10 | 0.98 | 7.5 |
4.5 | 1.2 | 2125 | 1175 | 2315 | 820*820 | 1910 | 760 | 3510 |
| S11-1000/10 | 1.15 | 10.3 | 1.1 | 2150 | 1380 | 2570 | 820*820 | 2125 | 880 | 3850 |
| S11-1250/10 | 1.36 | 12.0 | 1.0 | 2355 | 1485 | 2570 | 820*820 | 2605 | 960 | 4610 |
| S11-1600/10 | 1.64 | 14.5 | 0.9 | 2335 | 1750 | 2630 | 820*820 | 3125 | 1150 | 5420 |
Notes:The Dimension and weight will be changed according to the requirements.These two data in the table will be subject to the factory documents.
S1120KV
★Technical Parameter of S11 Series 20KV Non-excitation Voltage-regulating Transformer
Rated capacity
(KVA) | Voltage Combination | Connection Group Symbol | No-load Loss(W) | Load Loss (W)75ºC | No-load Current (%) |
Short-circuit Impedance(%) |
| High Voltage (KV) | Tapping ranges of High Voltage | Low Voltage(KV) |
| 30 |
20 |
±5%
±2×2.5% |
0.4 |
Dyn11 | 90 | 660 | 2.1 |
5.5 |
| 50 | 130 | 960 | 2.0 |
| 63 | 150 | 1145 | 1.9 |
| 80 | 180 | 1370 | 1.8 |
| 100 | 200 | 1650 | 1.6 |
| 125 | 240 | 1980 | 1.5 |
| 160 | 290 | 2420 | 1.4 |
| 200 | 330 | 2860 | 1.3 |
| 250 | 400 | 3350 | 1.2 |
| 315 | 480 | 4010 | 1.1 |
| 400 | 570 | 4730 | 1.0 |
| 500 | 680 | 5660 | 1.0 |
| 630 | 810 | 6820 | 0.9 |
6.0 |
| 800 | 980 | 8250 | 0.8 |
| 1000 | 1150 | 11330 | 0.7 |
| 1250 | 1350 | 13200 | 0.7 |
| 1600 | 1630 | 15950 | 0.6 |
| 2000 | 1950 | 19140 | 0.6 |
| 2500 | 2340 | 22220 | 0.5 |
★S1135KV
Model No. |
Voltage Combination | Connection Group Symbol | No-load Loss R(W) |
Load Loss R(W) | Impedance Voltage (%) | No-load Current(%) | Length L(mm) | Width W(mm) | Height H(mm) | *Distance between shafts Horizontal*Vertical (mm) | Body Weight(Kg) | Oil Weight(Kg) | Total Weight(Kg) |
High Voltage (KV) | Tapping Range of High Voltage | Low Voltage (KV) |
| S11-50/35 |
353638.5 |
±5%
±2×2.5% |
0.4 |
Yyn0(or) Dyn11 | 0.17 | 1.21/1.15 |
6.5 | 2.0 | 1195 | 935 | 1825 | 660*660 | 300 | 330 | 860 |
| S11-100/35 | 0.23 | 2.01/1.92 | 1.8 | 1200 | 995 | 1935 | 660*660 | 470 | 383 | 1130 |
| S11-125/35 | 0.27 | 2.38/2.26 | 1.75 | 1235 | 940 | 1955 | 660*660 | 550 | 465 | 1335 |
| S11-160/35 | 0.29 | 2.82/2.69 | 1.65 | 1285 | 895 | 1950 | 660*660 | 580 | 485 | 1475 |
| S11-200/35 | 0.34 | 3.33/3.16 | 1.55 | 1310 | 1150 | 1985 | 660*660 | 680 | 595 | 1755 |
| S11-250/35 | 0.41 | 3.95/3.76 | 1.4 | 1450 | 1090 | 2010 | 660*660 | 860 | 650 | 2000 |
| S11-315/35 | 0.49 | 4.76/4.53 | 1.4 | 1930 | 1065 | 2320 | 820*820 | 980 | 765 | 2290 |
| S11-400/35 | 0.58 | 5.75/5.47 | 1.3 | 1850 | 1165 | 2015 | 820*820 | 1170 | 885 | 2725 |
| S11-500/35 | 0.69 | 6.92/6.58 | 1.3 | 2045 | 1205 | 2415 | 820*820 | 1340 | 960 | 3090 |
| S11-630/35 | 0.83 | 7.87 | 1.25 | 2085 | 1240 | 2515 | 660*660 | 1550 | 895 | 3810 |
| S11-800/35 | 0.98 | 9.41 | 1.05 | 2305 | 1615 | 2685 | 820*820 | 1990 | 1030 | 4510 |
| S11-1000/35 | 1.15 | 11.54 | 1.0 | 2545 | 1540 | 2590 | 1070*1070 | 2415 | 1475 | 5055 |
| S11-1250/35 | 1.41 | 13.94 | 0.85 | 2495 | 2010 | 2675 | 820*820 | 2480 | 1405 | 5290 |
| S11-1600/35 | 1.70 | 16.67 | 0.85 | 2680 | 2100 | 2970 | 820*820 | 2600 | 1490 | 5450 |
Notes:The Dimension and weight will be changed according to the requirements.These two data in the table will be subject to the factory documents.
