Name: Oil Pressure Sensors 4-20mA Pressure Transmitter
Brand: all-electronics-online.com
SKU: 802456695
Availability: InStock
Rating: 5 (23 reviews)

Price:	US $ 40-150/Piece
Min Order:	1/Piece
Pay Type:	L/C,T/T,D/P

Contact Supplier

Showroom Product Company Profile

Prod Model:	402A
Pressure Range:	0-1kpa~100MPa
Accuracy Grade:	0.1%Fs 0.2%Fs 0.5%Fs
Pressure Connection:	G1/2,M201.5, M272 Flush Diaphragm Customized
Indicator (Local Display ):	3 1/2 LCD, 3 1/2 LED, 4 or 5 Bits LCD Indicator, 1
Electric Connection:	Cable ;Terminal Block
Type:	Diffused Silicon Pressure Transmitter
Measuring Medium:	Gas / Liquid / Steam
IP Rating:	IP67 IP68
Certification:	ISO Ce RoHS Ex

Product Description

Product Description

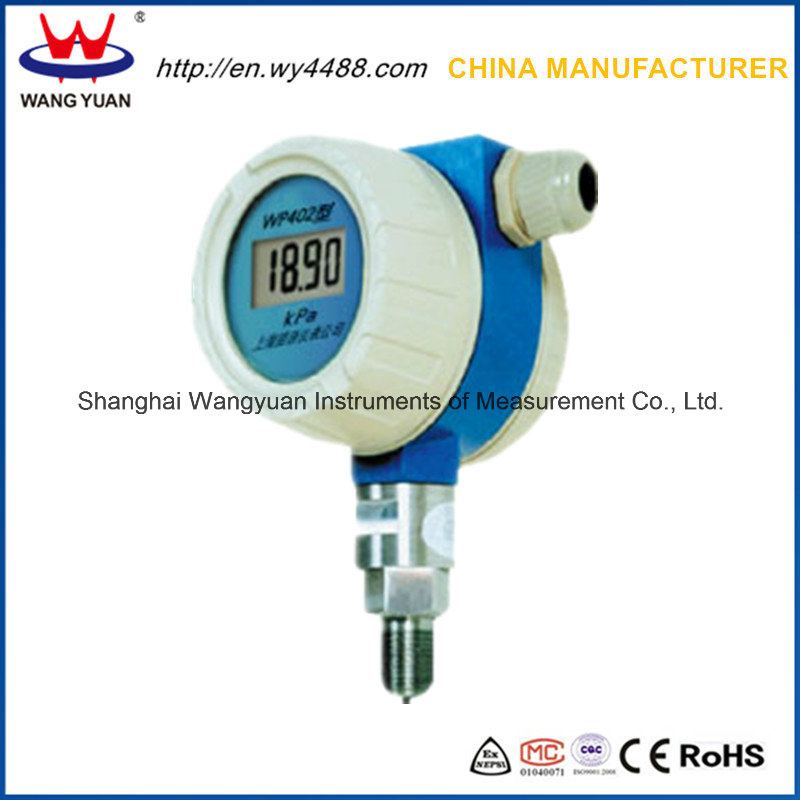

Oil pressure sensors 4-20ma pressure transmitter
Model: WP402A

Description

1. WP402A High Performance smart pressure transmitters adopt advanced imported sensor component, which is combined with the solid state integrated technology and isolate diaphragm technology.

2. The 4-20ma pressure transmitters are designed to work high performance under all-weather environments.

3. The temperature compensation resistance is made on admixture ceramic, which is the excellent technology of the smart pressure transmitters.

4. With strong anti-jamming performance, this 4-20ma pressure transmitter is suitable for long distance transmission.

5 WP402 smart pressure transmitter is widely used to exactitude measure and control for military project, scientific research, aerospace, petroleum & chemical, electric power, ocean, coal mine and other sever environment.

Features

* Imported sensor component

* Measure pressure of Corrosive medium

* World-class pressure transmitter technology

* Compact dimension design, strong

* Light weight, easy to install, maintenance-free

* Range can be adjusted in external, widely range of shift

* 100% Linear meter is configurable

* 3 1/2 LCD or LED digital indicator is configurable

* Explosion-proof type: Intrinsically safe comply with requirement of GB3836·4-83; Flameproof comply with requirements of GB3836·2-83.

Specification

Name	oil pressure sensors 4-20ma pressure transmitter
Pressure range	0 - 1kPa~400MPa
Accuracy	0.05%FS, 0.1%FS; 0.2%FS; 0.5 %FS
Pressure type	Gauge pressure(G), Absolute pressure(A), Sealed pressure(S), Minus pressure (N).
Process connection	G1/2,M201.5, M272 Flush diaphragm, Customized
Electrical connector	Terminal block, Cable
Output signal	4-20mA (1-5V); 4-20mA with HART protocol;0-10mA(0-5V); 0-20mA(0-10V)
Power supply	24V DC
Compensation range	-20~85ºC
Operation temperature	-40~85ºC
Material	Housing: SUS304
	Wetted part: SUS304/ SUS316L/ Teflon
Media	gas, air, liquids, weak corrosive gas
Indicator (local display )	3 1/2 LCD, 3 1/2 LED, 4 or 5 bits LCD indicator, 1-100% linear meter
Maximum pressure	Measurement upper limit	Overload	Long term stability
	<50kPa	2~5 times	<0.5%FS/year
	≥50kPa	1.5~3 times	<0.2%FS/year
Note: When range <1kPa, only no corrosion or weak corrosive gas can be measured.

Our service:

1. We have rich experience of OEM, factory can manufacture according to your request.

2. We could also send the goods which is labelling your brand name to your customer's warehouse directly.

3. We can offer you neutral packing without our logo and company information.

4. Warranty: We offer 12 months warranty for all of our products from shipping date;

5. You will enjoy free repair service for failures found within the warranty, if there are any problems of manufacturing quality;

6. We provide paid repair services for instrumentation damages beyond the warranty period or not arising from manufacturing quality problem.

Shanghai Wangyuan Instruments of Measurement Co., Ltd. is a high-tech enterprise level company specializing in industrial process control technology and products. We offer a complete product line of pressure, temperature, flow and indicator. Our products and services comply with the professional standards of CE, ISO 9001, RoHS, Explosion proof and CPA.

Our main products are including Pressure transmitters, Pressure transducers, Pressure sensor, Level Transmitter, Differential pressure transmitter (DP transmitter), Temperature transmitter, Flow meter, Intelligent indicator, Control instrument, Paperless recorder, Pressure switch and etc.

Our products are applying in the fields like food & beverage plant, water and waste water treatment, oil & gas, electric power, scientific research, ocean, boiler, coal mine, forklift weighing system HVAC systems, CNG & LNG, air condition, fuel pressure measurement and other process control industries.

In addition, with our highly skilled and experienced team of professional engineers and technicians we can provide integrated research and development services that rank us at the top of our industry. All products are thoroughly tested in-house with our vast array of calibration and special testing equipment. Our testing process is conducted in accordance with a strict quality control system.

With our on-site experience, research and development services we are a leader in the industrial automation field, and provide global customers with high quality products and services.
