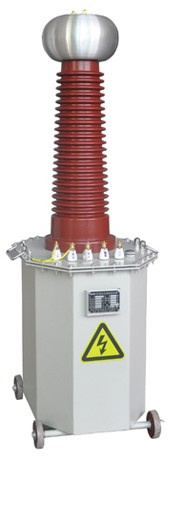

Oil Type HV Testing Transformer YD-10/50

Name: Oil Type HV Testing Transformer YD-10/50
Brand: all-electronics-online.com
SKU: 691550581
Availability: InStock
Rating: 4.7 (133 reviews)

Price:	Negotiable/Piece
Min Order:	1/Piece
Pay Type:	L/C,T/T,Western Union

Contact Supplier

Showroom Product Company Profile

Prod Model:	YD-10/50
Input Power:	AC 220V
Output Voltage:	withstand voltage testing machine
Rated Capacity:	10kVA
HV Current:	200mA
Impedance Voltage:	≤10 %
Output Voltage Waveform:	sine wave
No-load Loss:	<0.4 %
Delivery Time:	Shipped in 30 days after payment
Application:	Instrument
Phase:	Single
Coil:	Core-type Transformer
Cooling Method:	Oil-immersed Type Transformer
Winding Type:	Separated Winding Transformer
Usage:	Testing transformer
Brand:	HV Hipot

Product Description

YD series oil transformer, also known as test booster, which test insulation strength under specified voltage for various electric products, components, insulation materials. It can test products insulation level, find insulation defect and judge overvoltage ability. It is widely used in power station, power supply and distribution system and research institute.

Features

Single phase core-type with high-quality cold-rolled silicon steel sheet, steel clamp as fastening mode;
The design of high voltage coil is cylindrical multi-level tower type, rolled by high quality polyester enameled wire and HV insulation material.
Low coil outside, coil is an independent winding;
Octagonal shell, a movable wheel can be installed for 10kVA or more testing transformers, easy to move;

Important Tips
AC and DC can be dual-used, change test parameters subject to above table, the parameters of the rated DC voltage 1.4 times more than rated AC voltage, DC rated current 0.7 times more than AC current.

Specifications

Model No.	YD-10/50
Capacity( kVA )	10
Input voltage( V )	200
Output voltage( kV )	50
Output current( mA )	200
Impedance voltage	≤10 %
Output voltage waveform	sine wave
Surface temperature	<55 ºC
No-load loss	<0.4 %
Permit continuous operation time	1hour
Interval running time	Continuous
Weight( kg )	45

Note: We can design and manufacturer as customers' specific requirements.

HV Hipot Co. Is a high-tech enterprise professionally engaged in R & D, manufacture, and marketing of power testing products, instrumentations, power industry automation systems, which are supplied for national power companies, metallurgy petrochemical corpations, factories and public institution.

Established in 1997, we have developed Resonance hipot tester, Partial-discharge tester, Power-frequency AC/DC hipot tester, Intelligent control systems, HV circuit breaker tester, Relay protection tester successively, which achieved qualifications and honors of "High-tech enterprise certification", "ISO9001 quality management system certification", "Electrical Measuring&Testing Association of Hubei Province".

In the last years, the company have participated actively in project R&D of High voltage test and Energy saving&environmental protection with State grid corporation, HV research institution and Wuhan University.

We own 18 technicians, who form a strong R & D team and high-quality sales team. Years of experience and strong R&D support made us become a leader in the field of power on-line testing. The domestic market have been expanded to many provinces and cities nationwide, and our products have been recognized by diverse range of industrial sectors. The business is increasing every year.

Meanwhile, we have also been actively marketing in international market. Until now, our products have been exported to Australia, Russia, India, Pakistan, Vietnam, Middle East. The reliable performance and competitive price of our products have obtained us high praise from our overseas customers.

With the spirit of "professionalism, integrity, responsibility, innovation", we will always develop better products and provide our customers with high quality products and satisfactory services.
