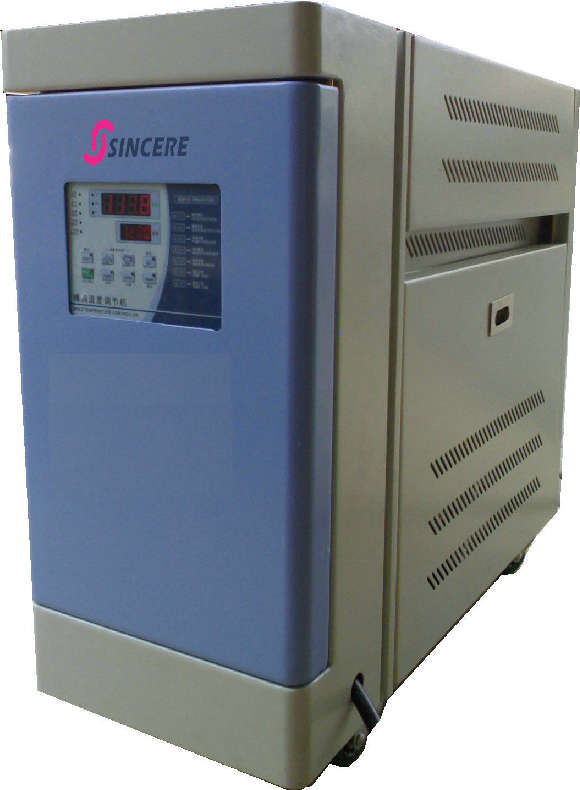

Oil Type Mold Temperature Controller (SMT series)

Name: Oil Type Mold Temperature Controller (SMT series)
Brand: all-electronics-online.com
SKU: 692055675
Availability: InStock
Rating: 5 (75 reviews)

Price:	US $ 800/Set
Trade Terms:	FOB,CFR,CIF
Min Order:	1/Set
Pay Type:	L/C,T/T,Western Union

Contact Supplier

Showroom Product Company Profile

Prod Model:	SMT-9-W
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Mould Temperature Controller:	3kw to 12kw
Type:	Temperature Controller
Control Type:	Digital
Material:	Stainless Steel
Usage:	Heating

Product Description

Mold temperature controller FEATURES:
*The temperature control adopted Japanese. Germany, Taiwan. Precise and reliable,
If can control within +- 1centidegree and save electricity over 35%.
*Two sets of electric heater cylinder made from stainless steel.
*Emplaying supeb imported components, with longer terms of service.
*Rapid heating and cool off speeds, temp kept stable at times.
*Complete with safety protection and indication system.

Oil Type-Safety Protect System
Auto drain sir system
Main circult-breaker
Purmp reverse protect and direct lamp
Alarm overheat thermostat
By-pass circuit
Overheat thermostat and direct lamp
Oil shortage protect and direct lamp

Water Type -Safety Protect System
Auto supply water system
Auto relif when over-pessure
Main circuit-breaker
Pump reverse protect and direct lamp
Pump overload protect and direct lamp
Pump overlaod prortect and direct lamp
By-pass circuit
Overheat thermostat and direct lamp
Water shortage protect and direct lamp

Specifications	Water Type				Oil Type
Model	SMT-3-W	SMT-6-W	SMT-9-W	SMT-12-W	SMT-3-0	SMT-6-0	SMT-9-0	SMT-12-0	SMT-6H-0	SMT-12H-0
Control Range	normal-95C				normal-160C				nomal-200C
Voltage	3PHASE 380v 50Hz or 60Hz				3PHASE 380v 50Hz or 60Hz
Cooling Methold	Direct Cooling				Indirect Cooling
Fluid	Clean Water				Heat Transfer Oil
Heating Capacity KW	3	6	9	12	3	6	9	12	6	12
Pump Power	0.375	0.375	0.375	0.75	0.375	0.375	0.375	0.75	0.375	0.75
Max Pump Pressure KW	80	80	80	110	60	60	60	90	60	90
Max pump Capacity Kg/cm	3.0	3.0	3.0	3.5	1.5	1.5	1.5	2.0	1.5	2.0
Cooling Water Pipe/inch	1/2	1/2	1/2	1/2	1/2	1/2	1/2	1/2	1/2	1/2
Process Fluid Pipe/inch	1/2*4	1/2*4	1/2*6	1/2*8	1/2*4	1/2*4	1/2*6	1/2*8	1/2*4	1/2*8
Exter Net Dimens ion LWH(mm)	650340580	650340580	650340580	750400700	650340580	650340580	750400700	750400700	650340580	750400700
Weight	54	54	72	90	58	58	75	95	58	75

BEST SINCERE INDUSTRY LIMITED was founded in 1979. We are the professional manufacturer of the plastic auxiliary machinery of the plastic injection molding machine. We devoted to the research and improvement of the palstic machinery to create the largest interest for our customers. Our products are popular both in domestic and overseas.

Our products include: Low noise plastic crusher; Onine recycling crusher; Strong plastic crusher; Dual shaft shredder, plastic mixer; Water chiller and air chiller; Industry cooling tower; Mould Tem. Controller; Plastic dryer; Auto loader; Film agglomerator; Plastic pulverizer, plastic metallizer, flexible screw conveyor, bulk bag unloader, etc. Our products are widely used in plastic, electronics, toy, medicine and other field
