| Prod Model: |
HTM-6OH |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Temperature Range: |
40-250c |
| Type: |
Temperature Controller |
| Control Type: |
Digital |
| Usage: |
Keep Stable Temperature of Water/Oil |
Product Description

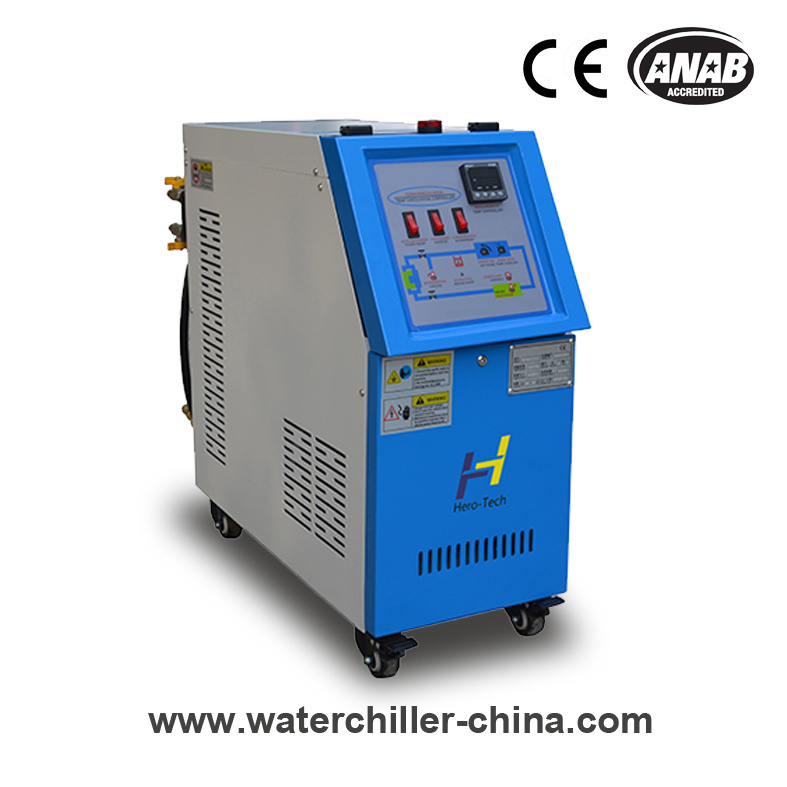

HERO-TECH Mold temperature controllerProduct introductionMTC is mainly employed to reduce Mold Pre-heating time, control mold temperature, prevent flow marks, or other undesirable phenomena on the molded surface, control constant temperature
Design FeaturesHTM-W series running medium is water.
HTM-O series running medium is oil.
Microcomputer system adopted, PID auto-temperature controller, capable of controlling oil and water temperature within ± 1º C
Stainless steel heating barrel equipped, features fast heating and cooling, easy for cleaning.
High temperature pump with high efficiency adopted, features high pressure, big flow, low noise and high stability.
Compact, rugged and powder coated cabinet with elegant appearance, quick release side panels provides easy maintenance.
Equipped with alarm and Multi fault indicators, while fault happened, the alarm will be sound automatically, fault code showed, customer will know the fault and reason at the first time, and hand in time, which is to guarantee system running safely.
Equipped with phase-sequence protective device, short current protective device, liquid level protective device, electronic time relay, etc.
ApplicationsPlastic & Rubber Industry
Die casting industry: Zinc, Aluminum, and Magnesium
HTM-W series is water type mold temperature controller
HTM-O sereis is oil type mold temperature controller
| Model | HTM-6OH |
| Heat transfer medium | oil |
| Temperature range | C | 40-250 |
| Heating power | kw | 6 |
| Power source | | 3PH 380V-50HZ |
| Pump | Motor power | kw | 0.37 |
| Max flow | l/min | 85 |
| Max pressure | kg/cm 2 | 2.8 |
| Cooling method | | indirect |
| Connections diameter | Connections | inch | 1/2 |
| NO.of inlet & outlet | | 2×2 |
| Cooling water pipe | inch | 1/2 |
| Dimension | Depth | mm | 800 |
| Width | mm | 450 |
| Height | mm | 750 |
| Net weight | kg | 82 |
Hero-Tech Group Company Limited was established in 1997, which integrated with R&D, Production, Marketing and Technical service. Shenzhen Hero-Tech Refrigeration Equipment Co., Ltd, subordinated to Hero-Tech Group, was founded in Shenzhen, Guangdong Province in 2010.
Hero-Tech is dedicated to research and develop the industry of industrial cooling and temperature controlling, products range including both air cooled and water cooled Scroll Chiller, Screw Type Chiller, Glycol Chiller, Laser Chiller, Oil chiller, Heating & Cooling Chiller, Mold Temperature Controller, Cooling Tower, etc.
Since its inception, adhered to Germany technique and management, Hero-Tech got fast growth on company scale and product improvements.
Hero-Tech Group Co., Ltd. is a trading company for commercial and industrial refrigeration equipment and parts;
Shenzhen Hero-Tech Refrigeration Equipment Co., Ltd established in 2010 in Shenzhen;
Hero-Tech passed certification of ISO9001: 2000 and CE in 2011;
Hero-Tech got 5 design patents in the period of 2012 to 0216;
Hero-Tech started heat exchanger production in May, 2015;
Hero-Tech started cabinet processing factory in April, 2017
20 years experience in industrial refrigeration made HERO-TECH front-runner status in China. We have service network built in Guangzhou, Shanghai, Beijing, Tianjin, Zhengzhou, Jinan, Qingdao and Suzhou so as to provide more prompt and convenient service. Meanwhile, oversea sales network was built and improved, covering 42 countries and areas, such as Middle East, South-East Asia, East Europe, South America and Australia. It brings continuing rapid growth of annual export volume. Till the end of 2016, the annual sales turn over is reached USD4, 500, 000.00, which exceeded the goal of USD4, 000, 000.00, and the export value contributes nearly 70% of the annual sales turnover.
Focus makes Hero-Tech professional. After years of development, Hero-Tech won domestic and foreign customers consistent high praise because of chillers' excellent performance and timely and attentive service. HERO-TECH people always adhered to the management philosophy "Treat work down-to-earth, Treat people with integrity". By fulfilling every commitment to customer, perfecting every detail, Hero-Tech reciprocates every one for their attention and concern.
