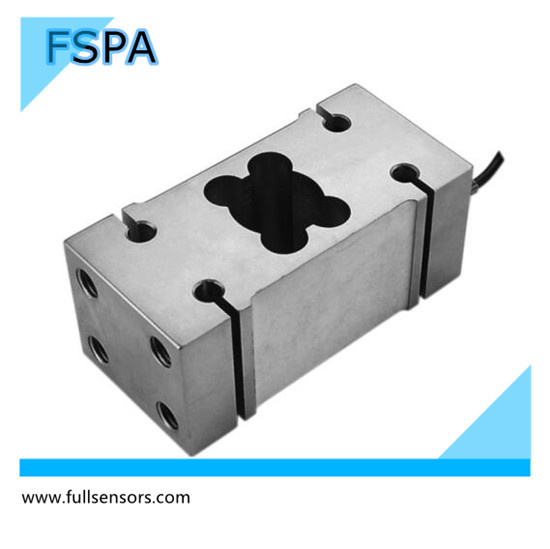

OIML Alloy Single Point Weighing Load Cells Weighing Scales
| Price: |
US $ 1-200/Piece |
| Min Order: |
1/Piece |
| Pay Type: |
T/T,Western Union,Paypal,Money Gram |
| Prod Model: |
FSPA |
| Capacity: |
50,100,200,300,500,750kg |
| Pattern: |
Single Point Type |
| Material: |
Alloy Steel |
Product Description
OIML Alloy Single Point Weighing Load Cells Weighing Scales
1.High accuracy up to C3
2.Variety of capacity 50,100,200,300,500,750kg
3. Professional factory at competitive price
4. No MOQ, trial orders are welcomed| Item | Unit | Parameter |
| Accuracy class to OIML R60 | | C2 | C3 |
| Maximum capacity (Emax) | kg | 50,100,200,300,500,750 |
| Sensititivity(Cn)/Zero balance | mV/V | 2.0±0.2/0±0.1 |
| Temperature effect on zero balance (TKo) | % of Cn/10K | ±0.0175 | ±0.0140 |
| Temperature effect on sensitivity(TKc) | % of Cn/10K | ±0.0175 | ±0.0140 |
| Hysteresis error(dhy) | % of Cn | ±0.02 | ±0.0150 |
| Non-linearity(dlin) | % of Cn | ±0.0270 | ±0.0167 |
| Creep(dcr) over 30 min | % of Cn | ±0.0250 | ±0.0167 |
| Eccentric error | % | ±0.0233 |
| Input (Rlc) &Output resistance(Ro) | Ω | 382±15 & 352±3 |
| Nominal range of excitation voltage (Bu) | V | 5~15 |
| Insulation resistance(Ris) at 50Vdc | MΩ | ≥5000 |
| Service temperature range (Btu) | ºC | -20...+50 |
| Safe load limit (El)&Breaking load(Ed) | % of Emax | 120&200 |
| Protection class according to EN60 529(IEC529) | | IP65 |
| Material: Measuring element | | Alloy Steel |
Maximum capacity (Emax)
Min.load cell verification inter(vmin) | kg
g | 50
20 | 100
20 | 200
50 | 300
50 | 500
100 | 750
100 |
| Maximum platform size | mm | 800 X 800 |
| Deflection at Emax(snom), approx | mm | <0.6 |
| Weight (G), approx | kg | 4.3 | 4.5 |
| Cable:D5mm, Length | m | 3m |

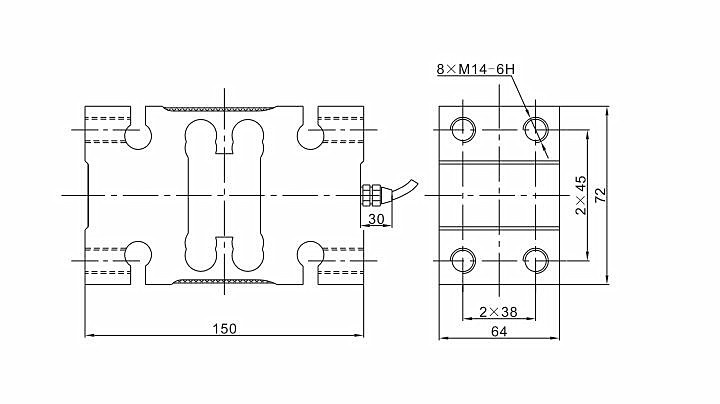

| Mounting: Cylindrical head screw | | M14-10.9 |
| Tigttening Torque | N.m | 35N.m |

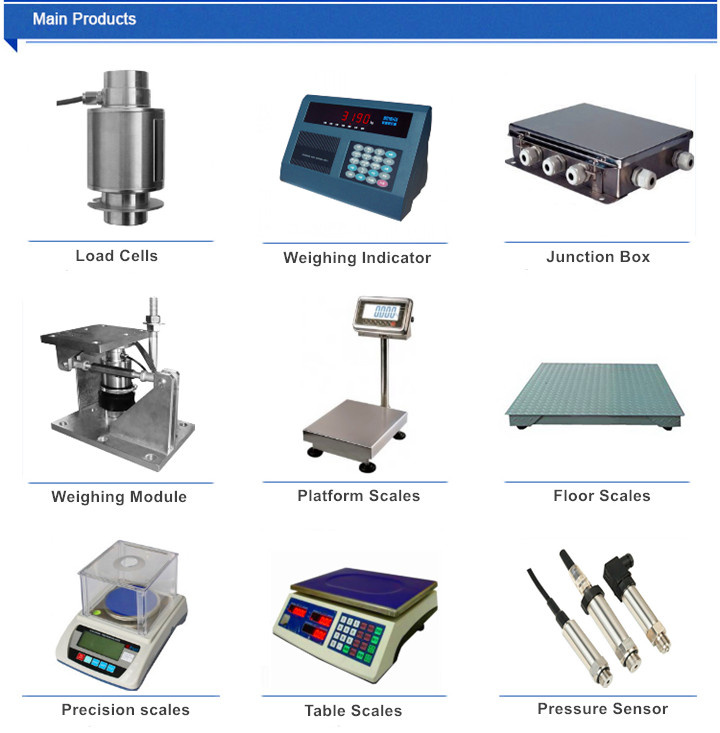

Varieties of products related to load cells as below, that meet all your needs, and save your time, welcome to browse our website to get more surprises.

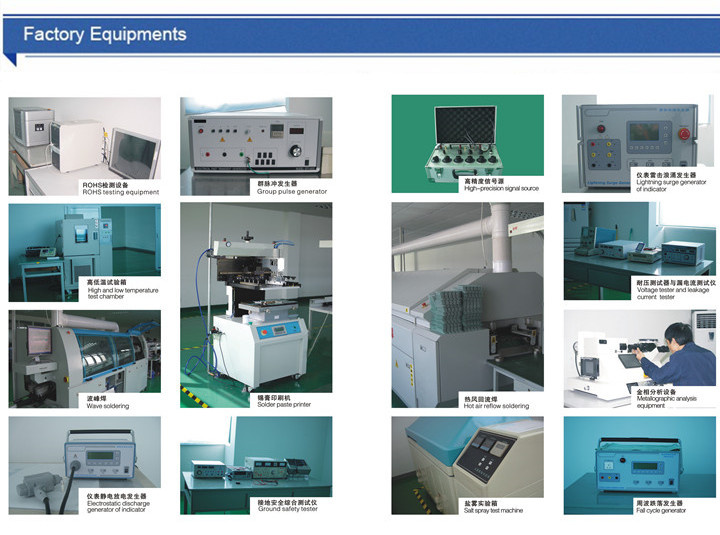

So many kinds of test equipments are used for pre-shipment inspection, in order to make sure all performance of our products reaches the optimal standard.
>>> Independent small inner box is used to protect each product;
>>> Then 6-10 pcs inner boxes place in a carton with bandage;
>>> Several cartons place on a pallet, easy to unload cargo;
>>> Last but not least, all cartons are wrapped with moistureproof plastic wrap,
it's strongly necessary for goods shipped by sea.
DHL, UPS, EMS, TNT ect Express and by air or by sea, any shipping method is available, and we will account price and haulage time of each way for your selection before placing order.
