OIML C3 Column Type Load Cell -Czl425

Name: OIML C3 Column Type Load Cell -Czl425
Brand: all-electronics-online.com
SKU: 827558785
Availability: InStock
Rating: 4.5 (76 reviews)

Price:	US $ 75/Piece
Min Order:	5/Piece
Pay Type:	T/T

Contact Supplier

Showroom Product Company Profile

Prod Model:	CZL425

Product Description

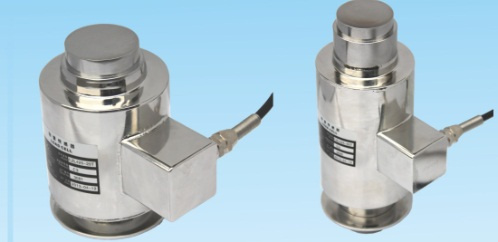

OIML C3 Column Type Load Cell (CZL425)

Main features:

Type:        column type load cell
Material:     full stainless steel
Protection:   IP68
Application:   weighbridge, truck scales, automobile testing facilities, hopper scales and other electronic weighing devices in harsh fields.
Advantages(comparing to traditional bridge type load cell):
Higher precision(C3), much higher water protection class(IP68), more convenient installation.

Parameters:

1. Rated Load	10-40 (t)
2. Rated Output	2.0+/-0.002mV/V
3. Zero Balance	±1%F.S
4. Input Resistance	700±5Ω
5. Output Resistance	700±5Ω
6. Excitation Voltage	9-12VDC
7. Combined Error	C3 with OIML Certified
8.Operating Temperature	-35ºC To +70ºC
9.Temperature Effect on Zero	0.017%F.S/10ºC
10Temperature Effect on Span	0.02%F.S/10ºC
11.Insulation Resistance	5000MΩ(50VDC)
12. Safe Overload	150%F.S
13.Ultimate Overload	200%FS
14. Cable	12m

Wiring schematic diagram:
Red: Input ( + ) 111 White: Output ( - )
Black: Input ( - ) 111 Green: Output ( + )

Packaging

Carton Size: 38x30x30cm

Company Information

Guangdong South China Sea Electronic Measuring Technology Co Ltd is specializing in producing resistance strain gauge, load cells, micro load cells, pressure sensors, portable dynamic axle weighing scales and other electrical measurement products.

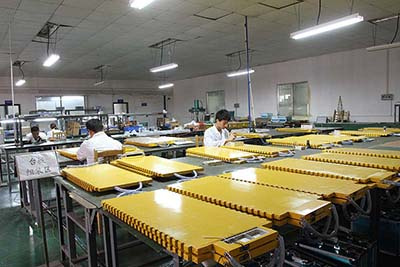

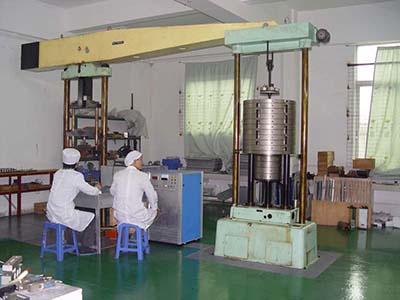

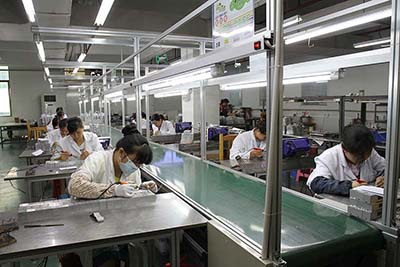

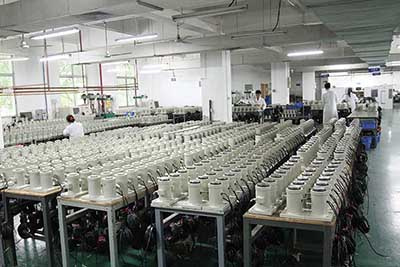

The company has the formidable scientific research strength, improve the strict quality assurance system and excellent production equipment. The main products of strain gauge, load cell are certificated by RoHS, OIML(issued by EU.) CE etc. , the company subordinate products all technical supervision department issued by the national metrology license. In 2004 and 2005 respectively awarded by "Guangdong province private S&T enterprises " and " the Guangdong Hi-tech enterprise" title, in 2007 Dongguan intellectual property office granted "the patent pilot enterprise".

Our load cells, strain gauges, pressure transducers and portable axle weigh scales have been exported to the world for a long time and achieved a certain market share. We have representative in US, Canada, Germany, British, Russia, India, Australia, etc. By this, we push our high quality products to the world!

OIML C3 Column Type Load Cell (CZL425)

FAQ

About samples:
Yes, we have stock for samples.

About guarantee:
Three months for free replacement and one year for free repair.

About factory:
We are original manufacturer with 700 employees in Dongguan.

About certificates:
OIML, CE, ROHS, ISO9001, SGS

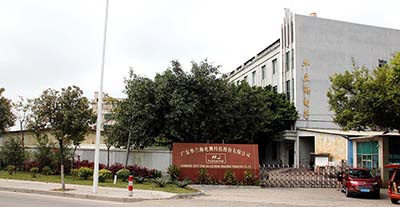

Guangdong South China Sea Electronic Measuring Technology Co., Ltd. (SCS)is located at Dongguan City, Guangdong Province, Where is the manufacture centre of China. Established in 1992, it specializes in developing and manufacturing advanced load cells, force sensor, Torque sensor, axle weigher, wheel weigher, pressure transducer based on strain-gages. We also manufacture custom designed load cells and weighing system whatever our customers can dream up. Some of our products have "OIML" and European approved "CE" mark. Hope we will establish a long term business-ship with you.
