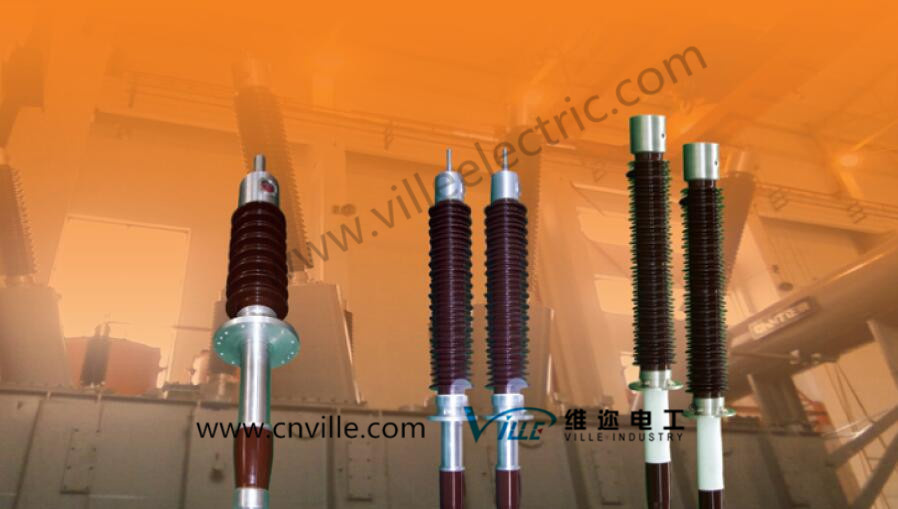

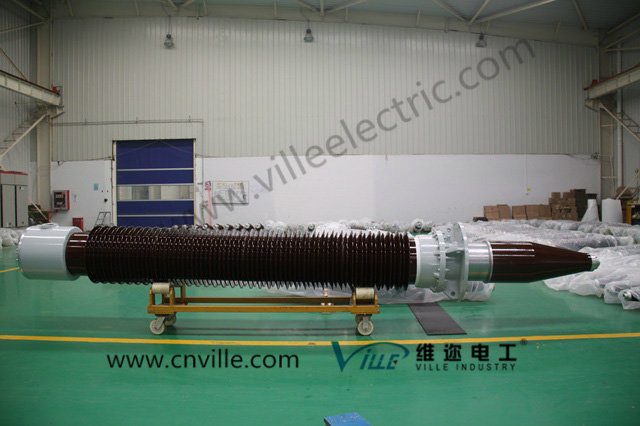

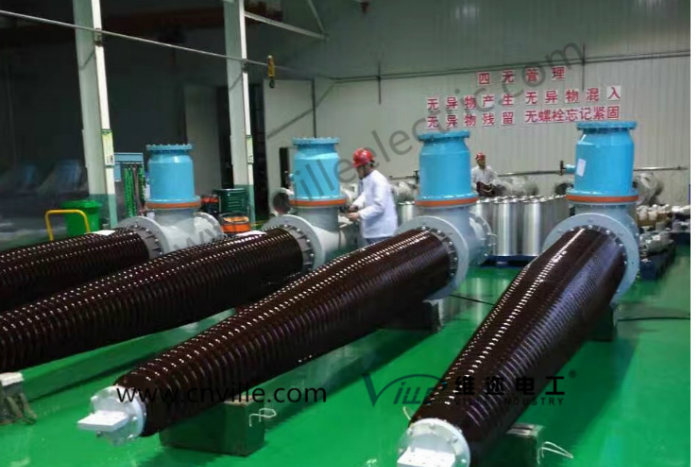

Oip Condenser Transformer Bushing for Export

Name: Oip Condenser Transformer Bushing for Export
Brand: all-electronics-online.com
SKU: 722884862
Availability: InStock
Rating: 4.6 (128 reviews)

Price:	US $ 500-80000/Piece
Min Order:	1/Piece
Pay Type:	L/C,T/T,D/P,Western Union

Contact Supplier

Showroom Product Company Profile

Prod Model:	Export series
Enter Attribute Here (e.g.: Size):	Enter Value Here (e.g.: 12 Inches)
Application:	High-temperature
Material:	Porcelain
Structure:	Bushing Insulator
Type:	B Type Insulator
Size Of Bearing Capacity:	5000n
Color:	Brown
Brand:	Ville

Product Description

Main properties
electric properties
System nominal voltage Un(Kv)		35	66	110	132	150	220
Rated voltage Ur(Kv)		40.5	72.5	126	145	170	252
60s power frequency withstand voltage:	Dry kv	95	147	230	275	325	460
60s power frequency withstand voltage:	Wet Kv	80	140	230	275	325	460
Lightning impulse withstand voltage chopped wave	Full wave Kv(peak)	200	325	550	650	750	1050
Lightning impulse withstand voltage chopped wave	Kv(peak)		375	635	750	865	1210
Operating impulse withstand voltage(dry or wet)							850
dielectric dissipation factor tanδ	(20ºC temperature)Max.	Ur:0.004
dielectric dissipation factor tanδ	increment	1.05Ur/√3-Ur:0.0005
Ur Partial discharge under voltage		≤5pC
1.5Ur Partial discharge under voltage		≤10pC

Bending testing load
Rated voltage Ur(Kv)	Bending testing load(N)
	Rated current Ir(A)
	≤800	800-1600	1600-2500	≥3150
≤52	1250	2000	2000	2500
72.5	1250	1250	4000	4000
126-170	3150	4000	4000	4000
252	4000	5000	5000	5000

other properties
Item#	Testing	performance index
1	The bushing can withstand the gauge pressure of the sealing test at 0.2MPa	no leakage
2	interior tranformer oil	Pressure value(Kv)		≥55
		Dielectric loss factor tanδ(90ºC)		≤0.004
		Mico water(μg/g)		≤10
		Chromatography	Acetylene(μL/L)	0
			Hydrogen(μL/L)	≤30
			Total hydrocarbons(μL/L)	≤9
3	Measurement of Dielectric Loss Factor of Terminal to earth under 2kV voltage			≤0.02

Type designation
BRDLW- (rated voltage:kV)/ (rated current:A)- (Antifouling grade)
BR-OIP Condenser transformer bushing,OIP Condenser wall bushing represent as CR
D-Short tail bushing,if no "D" it should be Medium-short tail bushing
L:can install CT
W:Antifouling type,3 means creepage distance is 25mm/kV,4 means creepage distance is 31mm/Kv

Technical parameters:

OIP Condenser transformer bushing for export
Type	Rated voltage Kv	Rated current A	Main Dimensions(mm)																				Creepage distance	MASS KG
Type	Rated voltage Kv	Rated current A	L	L1	L2	L3	L4	L5	L6	D1	D2	D3	D4	D	d1	d2	d3	d4	n	H	Z	X	Creepage distance	MASS KG
325-72.5-A1	72.5	800	1600	1330	700	370	100	125	35	180	250	115	185	225	28	35	15	30	6	115	60	110	1900	77
325-72.5-A3	72.5	800	1800	1530	700	570	300	125	35	180	250	115	185	225	28	35	15	30	6	115	60	110	1900	82
325-72.5-A6	145	800	2100	1830	700	770	600	125	35	180	250	115	185	225	28	35	15	30	6	115	60	110	1900	90
650-145-A1	145	800	2415	2145	1250	600	100	125	35	200	290	165	290	335	28	35	15	30	12	145	60	120	3906	137
650-145-A3	145	800	2615	2345	1250	800	300	125	35	200	290	165	290	335	28	35	15	30	12	145	60	120	3906	145
650-145-A6	145	800	2915	2645	1250	1100	600	125	35	200	290	165	290	335	28	35	15	30	12	145	60	120	3906	158
650-145-B1	145	1250	2415	2165	1250	600	100	125	40	200	290	165	290	335	36	48	15	60	12	145	60	140	3906	152
650-145-B3	145	1250	2615	2365	1250	800	300	125	40	200	290	165	290	335	36	48	15	60	12	145	60	140	3906	165
650-145-B6	145	1250	2915	2665	2130	1100	600	125	40	350	290	165	290	335	36	48	15	60	12	145	60	140	3906	189
1050-245-A1	245	800	3840	3590	2130	940	100	125	40	350	390	265	400	450	28	48	20	30	12	180	150	260	7000	435
1050-245-A3	245	800	4040	3790	2130	1440	300	125	40	350	390	265	400	450	28	48	20	30	12	180	150	260	7000	465
1050-245-A6	245	800	4340	4090	2130	1440	600	125	40	350	390	265	400	450	28	48	20	30	12	180	150	260	7000	504
1050-245-A1	245	1250	3840	3590	2130	940	100	125	40	350	390	265	400	450	36	48	20	60	12	180	150	260	7000	438
1050-245-A3	245	1250	4040	3790	2130	1440	300	125	40	350	390	265	400	450	36	48	20	60	12	180	150	260	7000	467
1050-245-A6	245	1250	4340	4090	2130	1440	600	125	40	350	390	265	400	450	36	48	20	60	12	180	150	260	7000	509
200-36-A3	36	400	1480	1255	485	505	300	60	35	350	390	265	185	225	28	35	22	30	4	115	60	120	1256	51

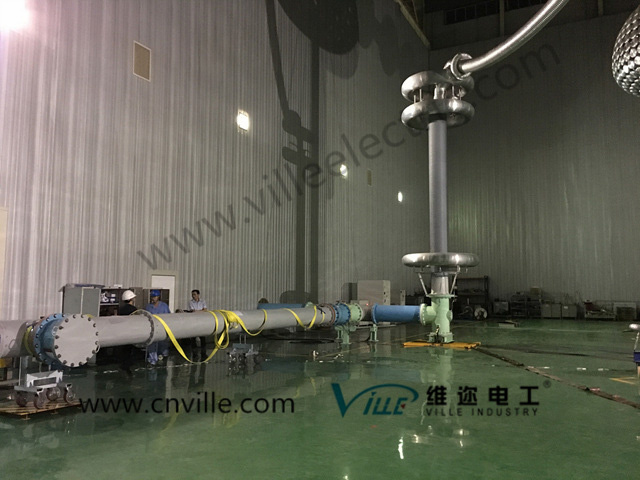

Other HV bushing reference:

Package reference
:

Ville Electric Company will keep up with the century, the epoch,

Sincerely look forward to your cooperation and win-wimn!

Create brilliant!

Ningbo Ville Electric Co., Ltd. One of wholly owned subsidiaries of VILLE INDUSTRY, It was invested by VILLE INDUSTRY, It is a well-know listed company in China specialized in R&D of electric power technology, equipment manufacturing and engineering services specialized in research, development, production of transformer and high voltage & low voltage electrical power equipment

Our Transmission and distribution companies can provide with whole solution for transformer substation and switch substation trunkey project!

The rated voltage from 11kV up to 132kV.

It locates in Hi-technical enterprise R & D center zone of Ningbo, Zhejiang province, which is one of the well-know coastal city in China. Its professional engaged in power substation, power plant project and electrical power complete equipments.

Working field: Manufacturing, engineering, designing, executing and commissioning for HV and LV electrical products. Turnkey substation from 11KV to 132KV.

Our transformer factory main working is visiting end user's site do measure and reseach before designe, and providing economic transformer solution for customer. Engineering, manufacturing, executing, commissioning and repairing for different kind of transformer (04kv -500kv ).

The products are mainly used in Steel plant; Power - Fossil fuel plant, Nuclear power plant, Railway, Subway and Airport. Wind power generation; Hydroelectric plant engineering; International power generation plant; Power substation transmission and distribution; Residential housing estate power distribution system and so on.

Transformer factory Product includes:

Three phase double (three)- winding power transformer, generator power transformer, auto power transformer, rectifier transformer for each industry, furnace transformer, movable transformer, traction transformer and reactor, power plant auxiliary and standby transformers, transformers for substations of backbone and distribution networks. Transformer for metallurgical companies etc.

In order to achieve the enterprise's strategic target---being stronger, larger, and superior, we continue to expand throughout the world's markets for power transmission and distribution area. And we also actively attach our team to competition, walking forward to the mission of "First-class worldwide transformer supplier"

Supply the guide drawings and installation manuals information directions on the method of handling, storage, mounting and erection of transformers.

Power equipment application:

Power-fossil fuel plant, Steel plant, Infrastructure- railway, international generation, substation, hydropower station, wind power substation, transmission and distribution.

We has excellent experience and good capacity in complete projects equipments in Generation, Substation, Transmission and Distribution from 400V-330kv, especially in Power plant, Substation construction and Transmission line, including of design, complete equipment, installation, Commissioningand after-sales service, and also design the complete Electrical Solutions according to customer's demand. We are mainly services to International State Power Board, Power Construction Contractor, Power Project Contractor, Factories and the Electric Power Project in the world.

In order to achieve the enterprise's strategic target---being stronger, larger, and superior, we continue to expand throughout the world's markets for power transmission and distribution area. And we also actively attach our team to competition, walking forward to the mission of "First-class worldwide electrical equipment supplier
