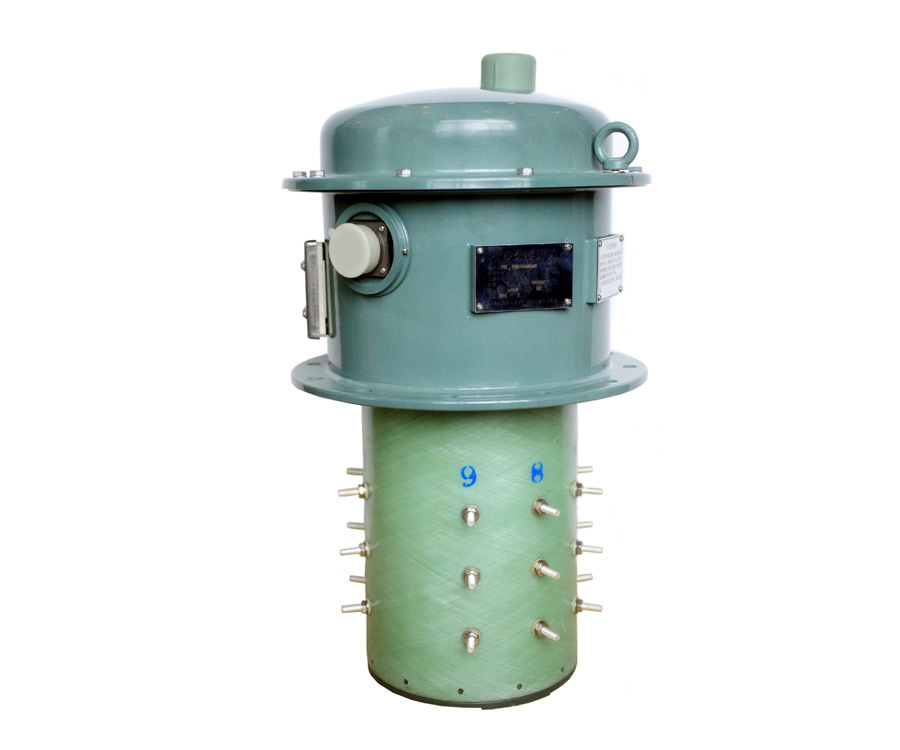

Oltc Switch for Power Transformer on/off Load Tap Changer

Name: Oltc Switch for Power Transformer on/off Load Tap Changer
Brand: all-electronics-online.com
SKU: 805033845
Availability: InStock
Rating: 5 (79 reviews)

Price:	US $ 300-3000/Piece
Min Order:	1/Piece
Pay Type:	L/C,T/T,D/P

Contact Supplier

Showroom Product Company Profile

Prod Model:	oltc
Application:	Power
Phase:	Three
Coil:	Core-type Transformer
Cooling Method:	Oil-immersed Type Transformer
Winding Type:	Two-winding Transformer
Brand:	Farady

Product Description

Detail
The specification of the product is rated voltage 35KV(highest voltage for equipment 40.5 kV) and below, rated current 400A and below. The maximum step voltage for 10KV voltage(highest voltage for equipment 12 kV) class is 1000V.
This kind of on-load tap changer has the merits of advanced structure, operating reliably, long useful life and maintenance freely, It is suitable for oil-immersed three-phases transformer with frequency 50Hz, highest voltage for equipment 40.5KV and below and rated current under 400A and below.

Founded in 1996, with a registered capital of 10 million USD, Zhejiang Farady Electric enjoys about 20 years' experience in MV transmission and distribution electrical equipment manufacture.

We are National Hi-tech enterprise, National Spark plan Program, State Hi-tech enterprise, State Innovation R&D center, Patent demonstrate company.

Farady is located in Liushi of Yueqing, Zhejiang, China, main products include: Transformer/RMU/switchgear/AVR/ACR and MV indoor and outdoor switch. All the products of ours have passed the national and international laboratory type test, Farady Electric was qualified supplier of China State Grid and China southern Grid

With ISO9001/14001/18001, we are strike for create value for our partner and customer

There is more than 20 distributors and agents worldwide already trust us and distribute Farady product there, we are not only export product, but also provide whole technology solution to help partner to establish local factory in our business line.

Today, boasting the value of products specialization, brand management, and business globalization, with the sprits of pragmatism, innovation, efficiency, and responsibility, Farady Company is dedicated to become the top name in the international business from China, and contributes its share to the transformation from the Made in China into the Invented in China.

WE COMMITTED TO PROVIDE A BETTER POWER
