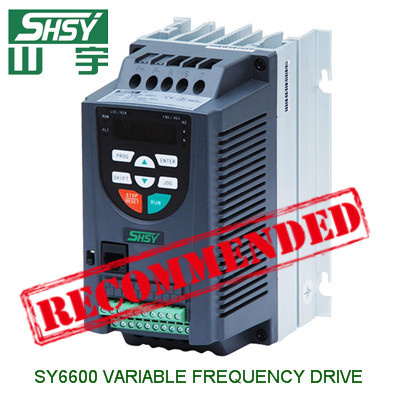

Olympic Star Product:High Performance Frequency Inverter VSD/VFD (Sanyu SY6600 Series)

Prod Model:	SY6600 Series
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Carrier Frequency:	1.0~15.0 Hz
Output Frequency:	0-600Hz
Weight:	1.8kgs
Input Voltage:	220V 1pH
Output Power:	0.4-2.2kw
Type:	AC-DC-AC
Starting Torque:	0.5Hz/ 150%
Size:	210mm*110mm*170mm
Output Voltage:	220V 3pH
Application:	High Frequency Converter Transducer
Output Type:	Triple
Principle Of Work:	Vector Control Transducer
Switch Mode:	High Carrier Frequency PWM Control
Main Circuit Type:	Current
Brand:	Sanyu

Product Description

Delivery time 4 days
Certificate CE, ISO, CCC, SGS
Communication RS485 modbus
IP 20
Warranty 12 month
MOQ 1 PC
Shippment Air/ sea/ courier
Payment & Shipping Terms:
Price: FOB USD 140~8000 / Set
Minimum Order Quantity: Negotiable Trial Order
Minimum Order Quantity: 1 Set/SetsTrial Order
Port: Shanghai
Packaging Details: Carton box
Delivery Time: 14 working days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 10000 Piece/Pieces per Month

Detailed Product Description
AC drive leading manufacturer CE, SGS, ISO9001 multi-function, high torque accurate, stable, vector control
AC drive

1. SY-6600 AC drive, frequency inverter, AC inverter, frequency converter, variable frequency drive --- Constant torque type

2. Features: Various control modes and widely usedAutomatically recognize the motor parametersRS-485 communication inferface, standards, MODBUS protocolPWM flexible energy braking, can quickly halt machineThe torque output will be 150% when the frequency is 0.5Hz. More powerful when at low rate, More stable when at high rate. Zero speed torque outputSuper-silent runningQuick menu design Simple PLC, PID adjustmentCompact and legerity structureMate the customer design Trip suppression & Stable runningHigh stability, strong anti-interference ability25 protection functions.

Input voltage 220V
Output voltage 220V
Control V/F, Vector Control

3. Functions: Dual-DSP + MCU + IPM high performance, high reliabilityAutomatic identification of motor parameters, automatic temperature compansation Start by excitation, speed up the rapid response to vector control Speed control and torque control switching onlineZero-servo lock function The frequency of carrier wave can be up to 16k, carry out a comprehensive silent runningStandard built-in RS485 port, matching TDS-PA01 adapter to support the fieldbus. Built-in PG card, built-in brake unit belows 22KW LCD/LED optional keyboard...Support for uploading and downloading parameters.

4. Widely used in: MetallurgyChemical
PetroleumTextileElectric powerBuilding materialsCoalPlasticsPrinting and Dyeing. CableWashingWater supply. Heating.
