| Prod Model: |
SY8000G |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Output Power: |
0.75-400kw |
| Size: |
110mm*210mm*170mm |
| Weight: |
1.8kgs |
| Input Voltage: |
220V 1pH 3pH 380V 3pH |
| Output Voltage: |
Adjustable |
| Type: |
AC/DC/AC |
| Output Frequency: |
50/60Hz |
| Output Current: |
2.5-690 |
| Carrier Frequency: |
1.0~15.0kHz |
| Application: |
High Frequency Converter Transducer |
| Output Type: |
Triple |
| Principle Of Work: |
V/F Control Transducer |
| Switch Mode: |
High Carrier Frequency PWM Control |
| Main Circuit Type: |
Current |
| Brand: |
Sanyu |
Product Description

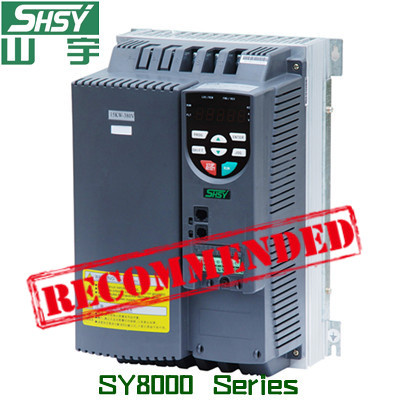

Olympic Star Product: Variable Frequency Vsd/VFD (SY8000 Series)
1. SY-8000 series 380V three phase variable speed drive, AC drive, frequency inverter, AC inverter, frequency converter, variable frequency drive --- Constant torque type.
2. Features:
Variable frequency inverter Various control modes and widely used. Automatically recognize the motor parameters. RS-485 communication inferface, standards, MODBUS protocol. PWM flexible energy braking, can quickly halt machine...The torque output will be 150% when the frequency is 0.5Hz. More powerful when at low rate, More stable when at high rate. Shortcut menu designSimple PLC, PID adjustmentCompact and legerity structure Trip suppression & Stable running.
Mate the customer design.
High stability, strong anti-interference ability. 25 protection functions.
Variable frequency drive VFD
3. FunctionsDual-DSP + MCU + IPM high performance, high reliabilityAutomatic identification of motor parameters, automatic temperature compensation Start by excitation, speed up the rapid response to vector control Speed control and torque control switching onlineZero-servo lock function. The frequency of carrier wave can be up to 16k, carry out a comprehensive silent runningStandard built-in RS485 port, matching TDS-PA01 adapter to support the fieldbus...Built-in brake unit belows 22KW LCD/LED optional keyboard.
4. Widely used in: MetallurgyChemical
PetroleumTextileBuilding materialsCoalPlasticsPrinting and DyeingCableWashingWater supplyHeating
Item description
Input Rated voltage, frequency Single phase, 220V, 50Hz/60Hz; 3 phase, 380V, 50Hz/60Hz
Allowed fluctuation Continuous voltage fluctuation: Within± 10%, instant voltage fluctuation: Within -15%10%; Voltage imbalance: < 3%; Frequency fluctuation: Within 5%.
Output Voltage Single phase, 220V & 3 phase, 380V
Output frequency 0~600Hz.
Overload capability 150% rated current, 1 minutes; 180% rated current, 1 seconds
Control trait Command input mode By LCD keypad, by terminals, by PC through serial communication port.
Control mode Open loop vector control, V/F control.
Speed setting method By keypad, by analog, by PC through serial communication port
Speed setting precision Digital command± 0.01%(-10 +40)
Analog command± 0.1%(25° C± 10)
Speed setting resolution Digital command: 0.01Hz; Analog command: 0.1% of maximum frequency
Speed control accuracy Open loop vector control: ± 0.5%; (25° C± 10)
Speed regulation range Open loop vector control: 1: 100
Torque control response Open loop vector control: < 200ms.
Start torque Open loop vector control: 150% of rated torque at 0.5Hz.
Torque control accuracy ± 5%
Set reference voltage supply output 1 port, +10V, 5mA
Control voltage supply output 24V, 100mA
Analogy input 2 terminal, No. 4 terminal is use for voltage, No. 5 is used for voltage and current input
Analog meter output 1 terminal, 0/4~20mA or 0~10V available for it
DO frequency signal output 1 port, high-frequency signal output(programmable)
Collector open-loop output One terminal
Programmable relay output contactor capacity: 250V AC/3A or 30V DC/1A
Serial communication port RS-485 connector RS485+, RS485-
4 bits LED display setting frequency, output frequency, output voltage, output current, motor speed, output torque, switch value terminal, programming menu parameters and fault code.
Five indication lamp Parameter unit, RUN/STOP status, special status, charging status.
Protection function Protection function Over voltage, under voltage, current limitation, over current, overload of inverter, overload of motor, overheat, overvoltage stallout, load short circuit, phase fault.
Protection degree IP21
Cooling mode Forced air cooling
Environment Ambient temperature -10° C, +40° C
Temperature 2090% RH(no condensation)

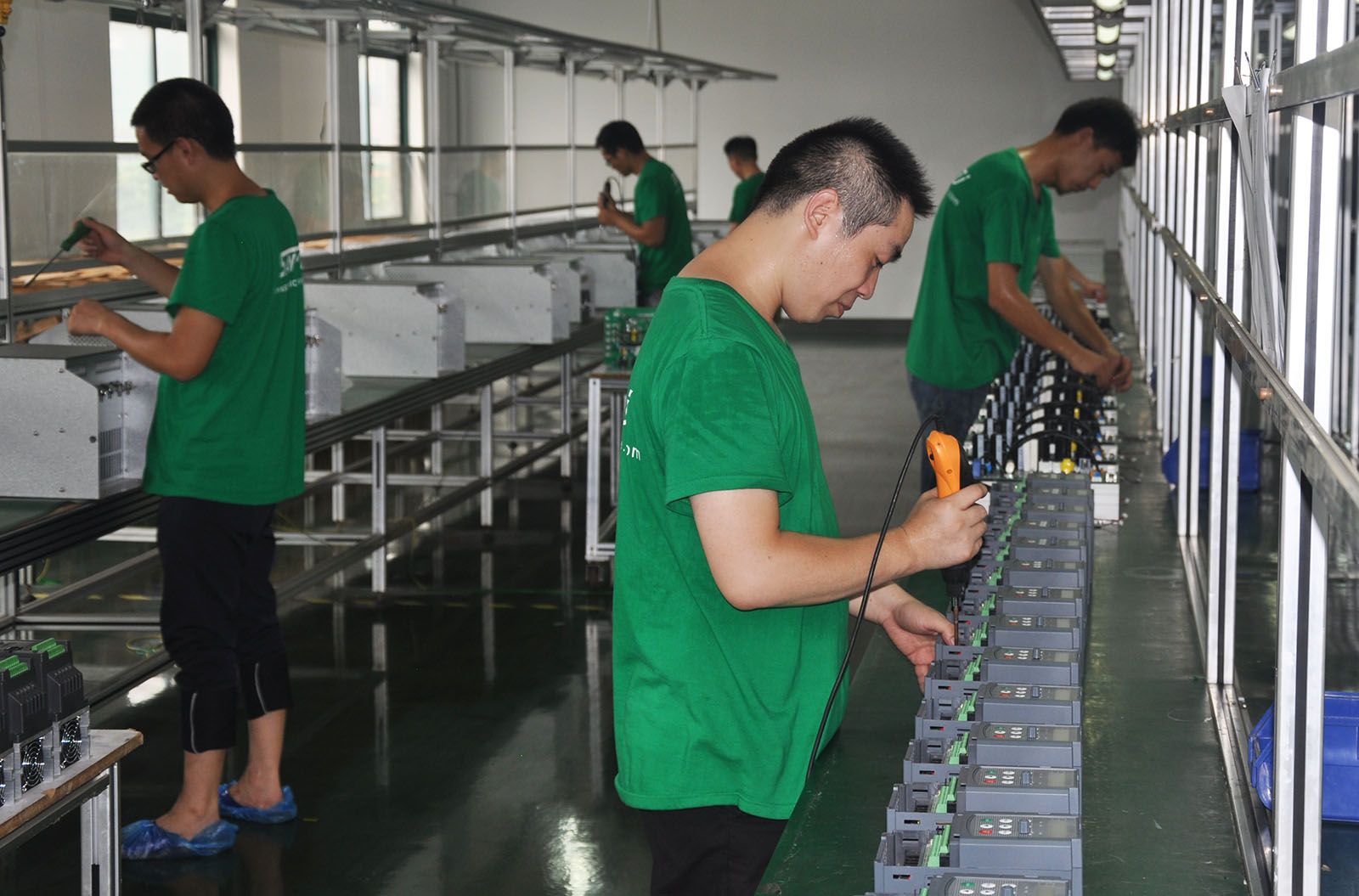

Shanghai Sanyu Electronics Equipment Co., Ltd.Was founded in 2000, with parent company Japan Sanyu Corporation (Asia).We are a leading manufacturer of AC drives, automation products and inverter welding machines in Shanghai, China.
SY-8000, SY7000, SY8600 vector control inverter are our key patent products.We produce high quality and outstanding performance AC drives.We have developed full range AC drives to meet the most needs of customers.Sanyu drives have been widely used in many industries from low end market to high end market.
In China, there are hundreds of authorized distributors and technicians who are ready to serve our customers at any time.Currently, Sanyu drives have been exported to more than 30 countries.Depth of industry experience combined with innovative design talents in diverse technologies have ensured that Sanyu will play an important role in automation and drive market all over the world.We are becoming a world-renowned professional AC drives and inverter system supplier.
Let's make a bright future together!
