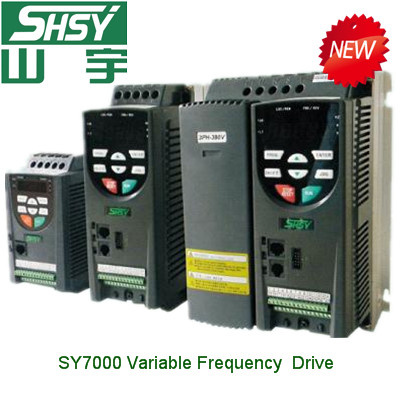

Olympic Star Products:High Performance Variable Frequency Converter VFD/Vsd (Sanyu SY7000 series)

Prod Model:	SY-7000
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Output Power:	0.75-400kw
Size:	110mm*210mm*170mm
Weight:	1.8kgs
Input Voltage:	220V 1pH 380V 3pH
Output Voltage:	220V 380V
Type:	AC Drive
Output Frequency:	0.75-400kw
Carrier Frequency:	0~15kHz
Communication:	RS 485 Modbus
Application:	High Frequency Converter Transducer
Output Type:	Triple
Principle Of Work:	V/F Control Transducer
Switch Mode:	High Carrier Frequency PWM Control
Main Circuit Type:	Current
Brand:	Sanyu

Product Description

Olympic Star Products: High Performance Variable Frequency Converter VFD/Vsd (Sanyu SY7000 series)


Payment & Shipping Terms:
Price: FOB USD 80~8000 / Set
Minimum Order Quantity: Negotiable Trial Order
Minimum Order Quantity: 1 Set/SetsTrial Order
Port: Shanghai
Packaging Details: Carton box
Delivery Time: 14 working days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 10000 Piece/Pieces per Month

Detailed Product Description:
Compared with our key products SY8000 series, New SY7000 series will hereby bring our customers more functions&advantages:
Lower price, approximately 3% lower than SY8000 series
16-segments speed control, more than 8-segments speed of SY8000 series
S curve start-up, more stable
Frequency stacking
4 V/F curves, SY8000 series only have 2 curves
Added torque control functions, directly regulate the output torque
Added droop control functions
Multi-segments
Rotating speed track
Constant length cut control
PLC operation
Pulse signal input functions

Detailed Product Description
AC drive leading manufacturer
CE, SGS, ISO9001
Multi-function, high torque AC drive
16 segment speed control
AC drive
1. SY-7000 three phase AC drive, frequency inverter, AC inverter, frequency converter, variable frequency drive --- Constant torque type.

2. Features: Various control modes and widely usedAutomatically recognize the motor parametersRS-485 communication inferface, standards, MODBUS protocolPWM flexible energy braking, can quickly halt machineThe torque output will be 150% when the frequency is 0.5Hz. More powerful when at low rate, More stable when at high rate. Zero speed torque outputSuper-silent running
16 segment speed controlQuick menu design.

3. FunctionsDual-DSP + MCU + IPM high performance, high reliabilityAutomatic identification of motor parameters, automatic temperature compansation Start by excitation, speed up the rapid response to vector control Speed control and torque control switching onlineZero-servo lock function The frequency of carrier wave can be up to 16k, carry out a comprehensive silent running4. Widely used in: MetallurgyChemical

PetroleumTextileElectric powerBuilding materialsCoalPlasticsPrinting and DyeingCableWashingWater supplyHeating.
