Om3 50/125 Multimode Duplex LC/Upc LSZH Fiber Optic Patch Cord
| Price: |
US $ 1.5/Piece |
| Min Order: |
1/Piece |
| Pay Type: |
L/C,T/T,D/P,Western Union,Paypal |
| Prod Model: |
OM3 Fiber Optic patch cord |
| Cable Type: |
mm Om3 |
| Return Loss: |
50dB (Repeatability Less Than0.1dB) |
| Mode: |
Sm9/125 |
| Temperature: |
Less Than 0.2dB, 40+85 Sustain 100 |
| Structure: |
Sc, LC, FC, St, Mt, DIN, D4, Mu, MT-RJ |
| Interchangeability: |
Less Than 0.2dB |
| Transmission Medium: |
Single Mode, Multimode |
| Outer Sheath: |
LSZH (Tensile Strength More Than 10kg) |
| Application: |
Probe |
| Type: |
Single-mode Fiber |
| Connection Structure: |
LC |
| Certification: |
CCC |
Product Description

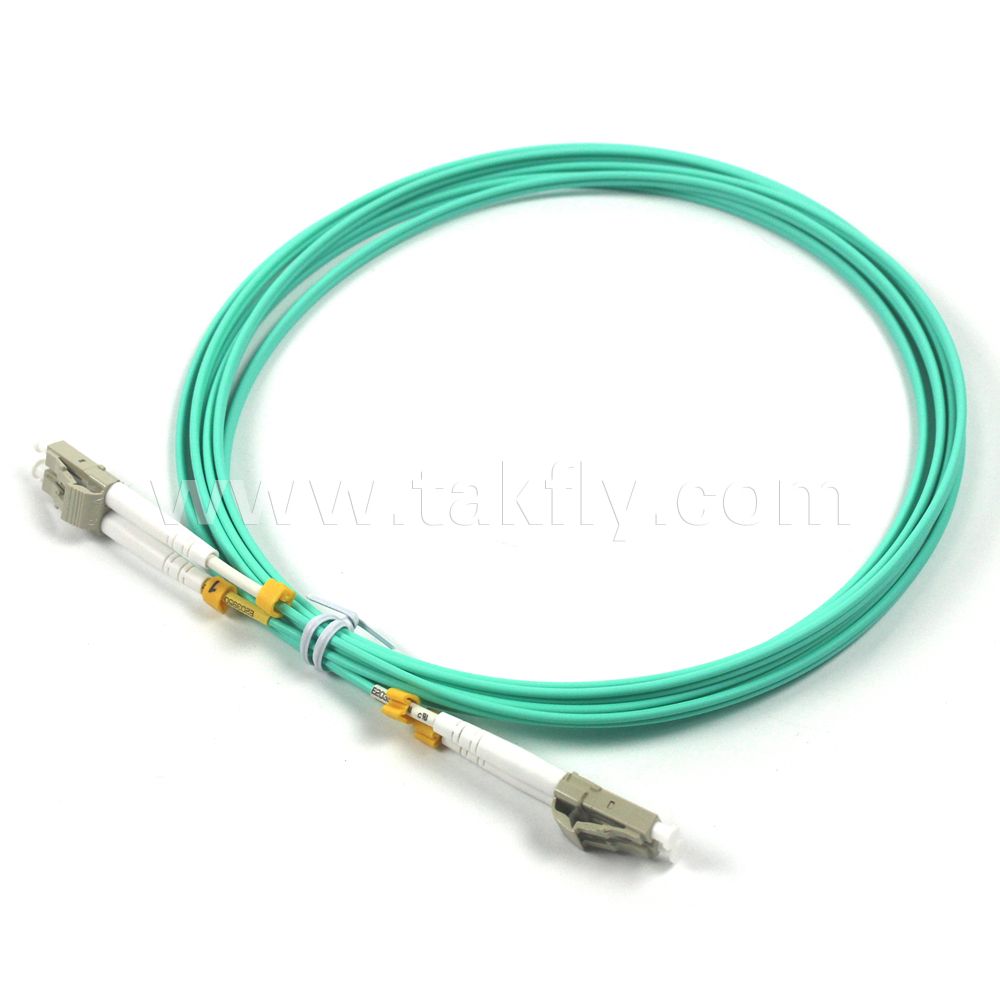

Om3 50/125 Multimode Duplex LC/Upc LSZH Fiber Optic Patch Cord
Fiber Optic Patch cords are mainly applied in optics communications field, such as FTTH, FTTX, LAN, WAN, network,broadband, etc. As the basic equipment of optic communication, fiber optic patch cord are in great demand in the market, especially in developed countries. With the expansion of FTTH, the use of patch cords will be in an increasing trend. Patch cord, just like a connector, link one equipment to the other one. According to the type of connector, patch cord can be divided into FC, ST, SC, LC, or hybrid connector patch cord.

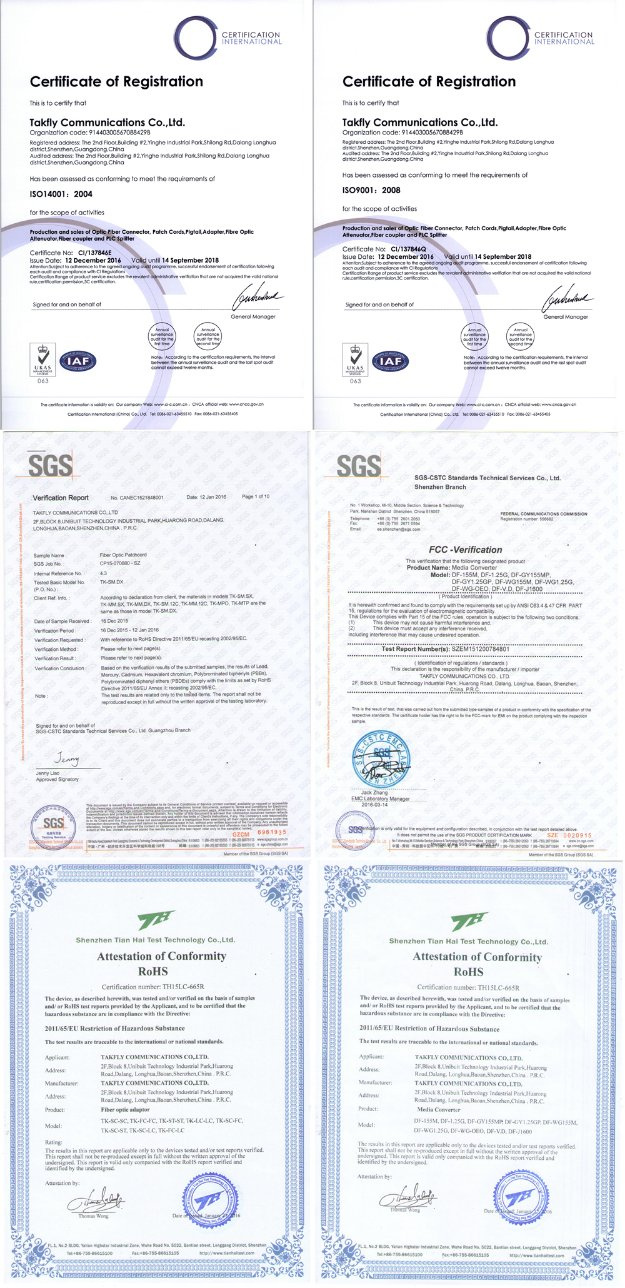

Takfly's LC/UPC-LC/UPC DUAL OM3 MM Fiber Optic Patch cords have passed ISO9001: 2008, RoHS, CE, etc.verifications. The quality is compatible with high standard. No complaints is one of our aims. Takfly is worth your trust ,And we hope that our products can help you win good reputation and market share.
Features:
1.Comply with IEC and YD-T826/1996, NTT, YD/T826, YD/T895, YD/T896, RoHS Standard.
2.Connector type standard: IEC61574 series
3.Low Insertion Loss : IEC 61300-3-4, IL≤0.20dBHigh
4.Return Loss: IEC61300-3-6; RL≥60dB
5.Flammability:IEC60332-1Repeat Plug feature is good, good interchangeability
6.Ceramic Ferrule, high-density docking, concentricity ≤0.5Can provide general PVC or LSZH cable cable
Application
1.Telecommunications
2.CATV, LAN, MAN, WAN, Test &Measurement
3.Military industry Medical

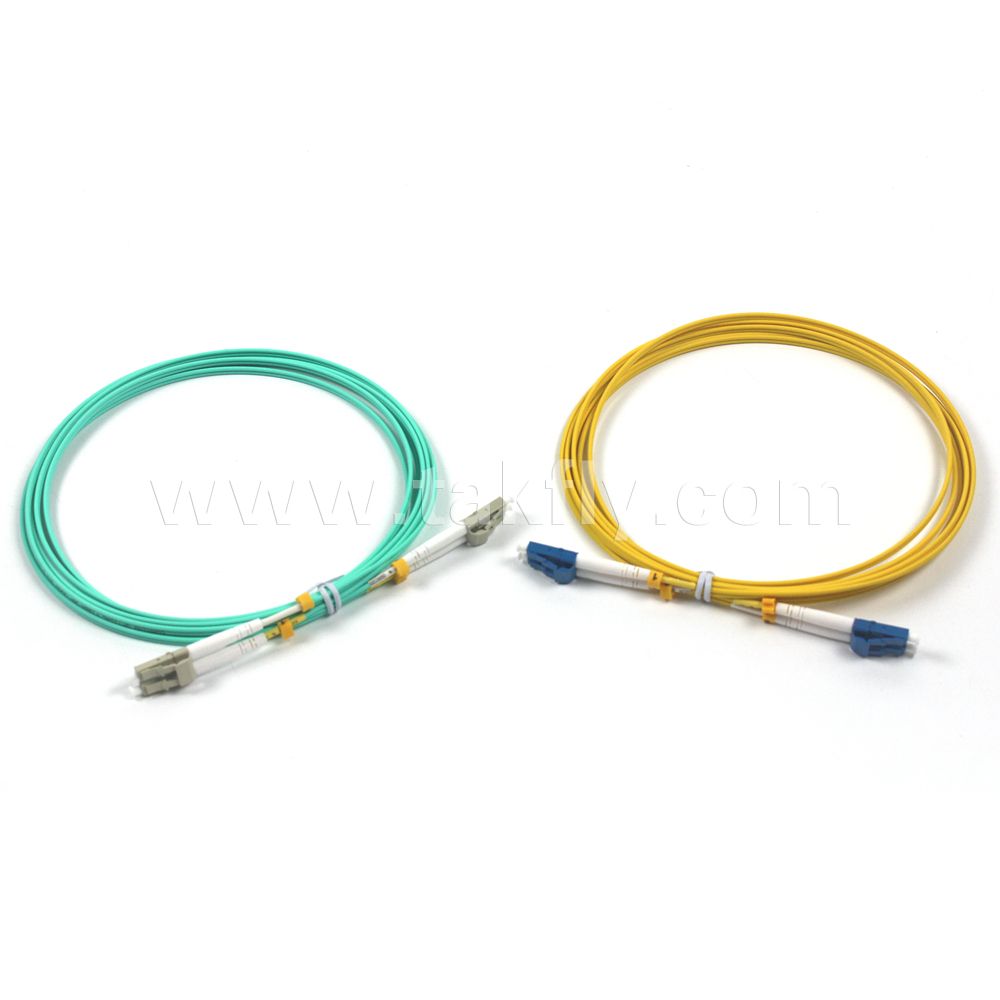

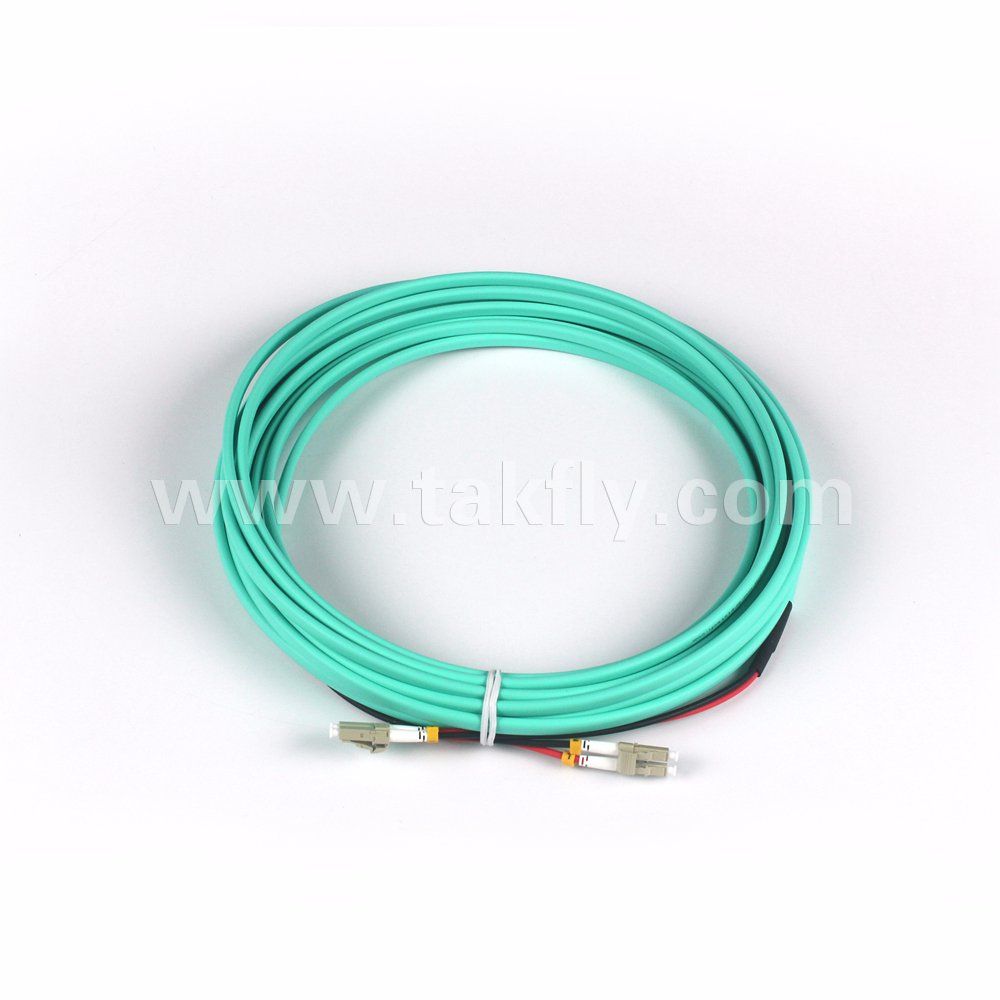

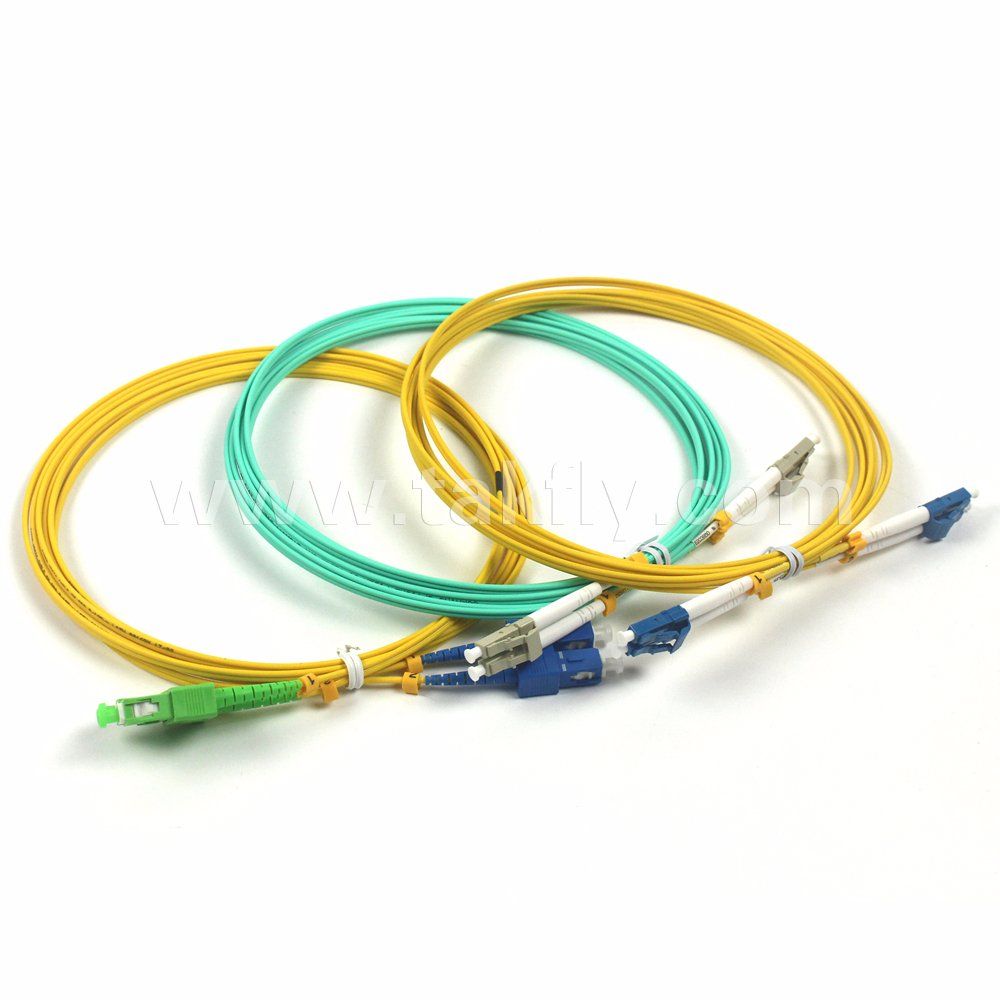

Detail pics
Parameter:| Item | Mode Type | PC | SPC | UPC | APC |
| Insertion Loss | SM | ≤0.25dB | ≤0.20dB | ≤0.20dB | ≤0.15dB |
| MM | ≤0.30dB | ≤0.20dB | ≤0.20dB | ≤0.30dB |
| Return Loss | SM | ≥45dB | ≥50dB | ≥55dB | ≥65dB |
| MM | ≥35dB | ≥35dB | ≥35dB | ≥35dB |
| Repetition Test | Additional Loss≤0.1dB,Reture Loss Variability<5dB |
| Temperature Stability(-40ºC~85ºC) | Additional Loss≤0.2dB,Reture Loss Variability<5dB |
| Operating Temperature | -40ºC~+75ºC |
| Storage Temperature | -40ºC~+75ºC |
Order Information| CODE | CONNECTOR | CABLE SIZE | FIBER TYPE | CABLE TYPE | FIGURE |
| H02 | 1.SM Simplex
2.MM Simplex
3.APC Simplex
4.SM Duplex
5.MM Duplex
6.APC Duplex | 1. 0.9
2. 2.0
3. 3.0
| 1.9/125
2.OM3
3.50/125
4.62.5/125 | 1.Yellow PVC
2.Orange PVC
3.White PVC
4.Yellow LSZH
5.Orange LSZH
6.White LSZH | 1.Blue
2.Beige
3. Green
4.Black
5.Blue and Yellow
6.Red and Black
|
Fiber cable performance specifications| Fiber type | Min. Bandwidth | Distance | Attenuation |
| 62.5/125 | 850/1300nm
200/500 MHz/Km | @100Mbps 2km @1Gig 220m | 850/1300nm
3.0/1.0dB/km |
| 50/125 | 850/1300nm
500/500 MHz/Km | @100Mbps 2km @1Gig 500m | 850/1300nm
3.0/1.0dB/km |
50/125
10Gig Optimized | 850/1300nm
2000/500 MHz/Km | @100Gig Varies by VCSEL typical 300m 2850nm | 850/1300nm
3.0/1.0dB/km |
Other information| Fiber type | Single mode:
(1)9/125-G652D
(2)9/125-G655
(3)9/125-G657A,,G657A2 |
Multimode:
(4)50/125-OM2
(5)62.5/125-OM1
(6)50/125-OM3
(7)OM4 |
| Fiber | YOFC, CORNING, OFS |
| Connector1 | FC,LC,SC,ST.MU, MTRJ, E2000 SMA |
| Polishing | UPC,APC |
| Connector2 | FC,LC,SC,ST.MU, MTRJ, E2000 SMA |
| Polishing | UPC,APC |
| Cord type | Simplex ,Duplex |
| Cable diameter | 0.9mm ,2.0mm, 3.0mm |
| Cable jacket | PVC,LSZH, OFNR, OFNP |
| length(M) | 0.3m,1m,2m,5m,10m,25m,50m,100m (custom) |
Why choose Takfly ?
Service
1.Customer's logo: Acceptable
2.General inspection on fixing before packing
3.Third party inspection: Acceptable
Quality Control
All products must go through five checks before manufacturing process
1.Material incoming inspection before production
2.Full check after every individual process finished
3.Full check after production half-done
4.Full check before packing
5.Spots check after production packed before shipping
Advantages:
1.15 years experience in manufacturing fiber optic products..
2.Availability of R & D with more than 10 engineers.
3.Available of design and making mold with special molding house.
4.High quality, attractive price and fast delivery(2-7days)
5.OEM, ODM customer designs are also welcomed
6.More than 200 workers
7.Excellent service
Delivery:
1.Packing: Plastic bag& carton, Neutral packing or as your required.
2.Sample time: 1-3 days after confirm
3.Order lead time: 2-7working days depend on quantity and products.
4.Shipping port: Shenzhen China or HK
5.Shipping term: EXW or FOB
Payment:
Acceptable by T/T, West Union, PayPal and L/C according to your requirement
Shipping
1.Once confirmed the order, and payment sent after finishing goods.
2.Goods will be sent within 7 days with the fast,reasonable and efficient shipping mode such as DHL, EMS, UPS,
FEDEX, TNT, etc.
3.Please make sure your postal address is correct. Any lost and mistakes because of wrong address are not
supplier's responsibility.
4.Please do not bid if you disagree with the shipping and handling charge.
Contact
1.Our working time:8:30am~5:30pm
2.All the inquiries will be replied within 24hours, So please feel free to send us your inquiry.
3.When our trade manager is off line, please feel free to leave a message, and tell us the products you need, our
model number, and your E-mail address, we will reply to you within 24hours too.
Pic about Takfly
Any question about this OM3 fiber patch cord,please leave me an inquiry or contact me directly.
Takfly Communications Co., Ltd. is a Hi-Tech enterprise having its own brand and specializing in R&D, manufacture and sales of fiber optical communications equipments.
The main products of TAKFLY include fiber optic patch cord, connector, adapter, optical coupler, attenuator, optic media converter, optic splice closure, optic terminal box, ODF etc, which are widely used in telecommunications, broadband, broadcast, CATV and network industry. All the products acquired the approval of the Network Access License for Telecommunication Equipment Ministry of Information Industry, PRC, ISO9001, UL and CE standard, which ensure the reliability and make them sold very well not only in the domestic market but also the overseas market.
TAKFLY was establish in 2000, grow up rapidly. Now it has workshop area about 3000 square meters, more than 200 workers, the production capacity of fiber optic connectors is about 600, 000PCS per month. It controls the quality constantly and strictly in order to give the best products to the users. The outstanding features and advantage are the high technology, professional and excellent sales team, efficient and sound management, competitive price, wide and superior channels, as well as high-quality and flexible service.
Many international exhibitions upgraded "TAKFLY" as the well-known brand in the world. To be the super leader of the optical communications scopes in China is the goal of TAKFLY. In the next five years, TAKFLY will keep the strategic pattern of development ---"based in South China, penetrate into whole country, extend over the world". It will bring the fiber optic industry into a brilliant future. TAKFLY--- Your Honest Team, will be always ready for you.
