Om3 LC Breakout MPO Patch Cord
| Price: |
US $ 18-50/Piece |
| Min Order: |
1/Piece |
| Pay Type: |
L/C,T/T,Western Union,Paypal,Money Gram |
| Prod Model: |
fiber optic patch cord |
| Connector A: |
MTP Female (Pinless) |
| Connector B: |
LC Upc Duplex |
| Fiber Mode: |
Om3 |
| Wavelength: |
850/1300nm |
| LC Connector Il: |
≤0.3dB |
| MTP Connector Rl: |
≥20dB |
| LC Connector Rl: |
≥30dB |
| Jacket Od: |
3.0mm |
| Fan-out Diameter: |
2.0mm |
| Installation Tensile Load: |
100 N |
| Application: |
Probe |
| Type: |
Multi-mode Fiber |
| Certification: |
ISO9001 |
| Connection Structure: |
MPO/MTP |
Product Description

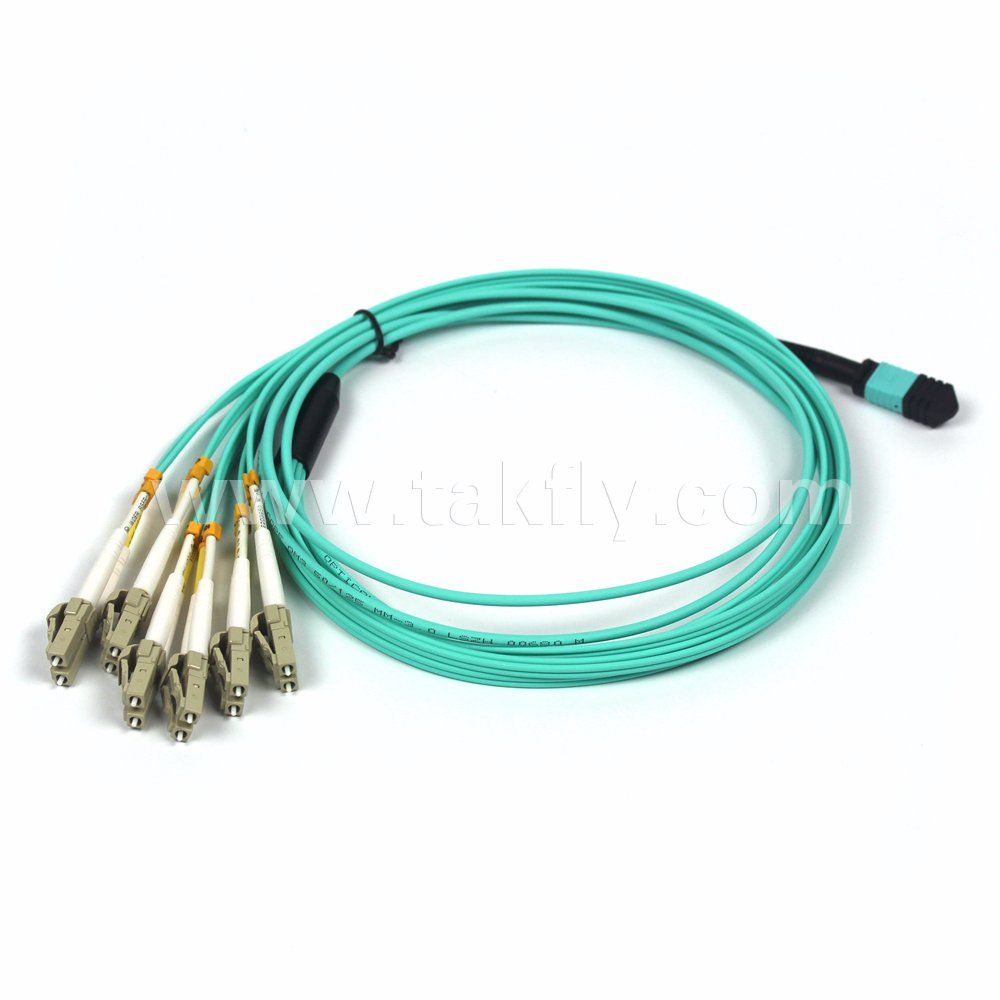

MTP Female to LC UPC Duplex OM3 50/125 Multimode Harness Cable, Polarity B, Elite, LSZH BunchProduct Specifications| Connector A | MTP Female (pinless) |
| Connector B | LC UPC Duplex |
| Fiber Mode | OM3 50/125μm |
| Wavelength | 850/1300nm |
| MTP Connector IL | 0.35dB Max(0.15dB Typ.) |
| LC Connector IL | ≤0.3dB |
| MTP Connector RL | ≥20dB |
| LC Connector RL | ≥30dB |
| Jacket OD | 3.0mm |
| Fan-Out Diameter | 2.0mm |
| Installation Tensile Load | 100 N |
| Long-Term Tensile Load | 50 N |
| Storage Temperature | -40°C to +85°C |
| Operating Temperature | -10°C to +70°C |
| Cable Jacket | LSZH |
All connector type available upon customer's request with various colors
standard size: OS1(9/125um), OM1(62.5/125um), OM2 /OM3 /OM4(50/125um),any length we do
cable material / jacket: PVC/OFNR,LSZH,OFNP or others | Mode | SM | MM |
| Polish | UPC | APC | PC |
| Insertion Loss | Typical ≤0.2dB
Maximum ≤0.3dB | ≤0.25dB |
| Return Loss | ≥50dB | ≥65dB | ≥35dB |
| Interchangeability | ≤0.2dB |
| Repeatability | ≤0.1dB |
| Durability | ≤0.2dB (1000 times mating) |
| Tensile Strengh | > 10kg |
| Temperature | ≤0.2dB (-40+85 sustain 100 hours) |
| Humidity | ≤0.2dB (+25+65 93 R.H.100 hours) |
CHARACTERITICS
easy connection and disconnection
low insertion loss
high temperature stability
APPLICATION
CATV
telecommunication networks
test equipment
local area networks(LAN)
data processing network

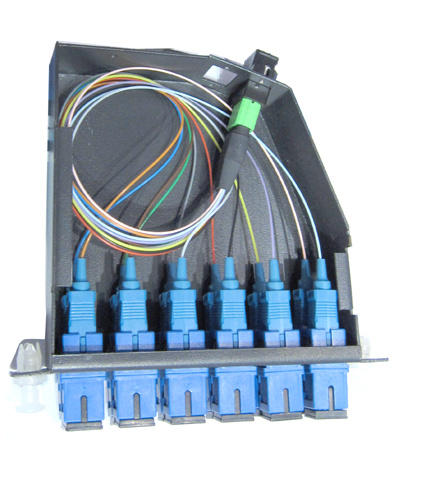

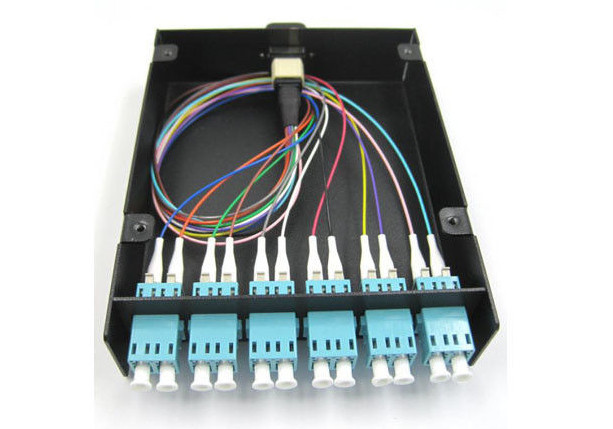

MPO cassette
PACKAGE & DELIVERY
Each fiber optic patchcord with a zip plastic bag and then in a carton
Some size are in stock,we can ship soon as you want by courier(TNT/UPS/DHL/FEDEX), Generally 3-5days for production after your payment
Quality Control
All products must go through five checks before manufacturing process
1.Material incoming inspection before production
2.Full check after every individual process finished
3.Full check after production half-done
4.Full check before packing
5.Spots check after production packed before shipping
Advantage:
1.15 years experience in manufacturing fiber optic products..
2.Availability of R & D with more than 10 engineers.
3.Available of design and making mold with special molding house.
4.High quality, attractive price and fast delivery(2-7days)
5.OEM, ODM customer designs are also welcomed
6.More than 200 workers
7.Excellent survice
Delivery:
1.Packing: Plastic bag& carton, Neutral packing or as your required.
2.Sample time: 1-3 days after confirm
3.Order lead time: 2-7working days depend on quantity and products.
4.Shipping port: Shenzhen China or HK
5.Shipping term: EXW or FOB / C&F
Payment:
Acceptable by T/T, West Union, PayPal and L/C according to your requirement
Shipping:
1.Once confirmed the order, and payment sent after finishing goods. 2.Goods will be sent within 7 days with the fast,reasonable and efficient shipping mode such as DHL, EMS, UPS,FEDEX, TNT, ETC.
3.Please make sure your postal address is correct. Any lost and mistakes because of wrong address are not supplier's responsibility.
4.Please do not bid if you disagree with the shipping and handling charge.
Contact:
1.Our working time:8:30am~5:30pm
2.All the inquiries will be replied within 24hours, So please feel free to send us your inquiry.
3.When our trade manager is off line, please feel free to leave a message, and tell us the products you need, our model number, and your E-mail address, we will reply to you within 24hours too.
