Omeik Three Phase Asynchronous Motor

Name: Omeik Three Phase Asynchronous Motor
Brand: all-electronics-online.com
SKU: 836702035
Availability: InStock
Rating: 4.4 (27 reviews)

Price:	US $ 46-50/Piece
Min Order:	100/Piece
Pay Type:	L/C,T/T

Contact Supplier

Showroom Product Company Profile

Prod Model:	Y2-802-4
Output:	0.55kw-315kw
Protection Class:	IP44 / IP54 / IP55
Insulation Class:	B / F
Cooling Method:	IC0141
Mounting:	B3 / B5 / B35
Winding:	100% Copper Wire
Application:	Universal
Operating Speed:	Constant Speed
Number Of Stator:	Single-Phase
Species:	Y, Y2 Series Three-Phase
Rotor Structure:	Winding Type
Casing Protection:	Closed Type
Starting Mode:	Auto-induction Voltage-reduced Starting
Brand:	Omeik/Ce
Certification:	Ce

Product Description

Product Description

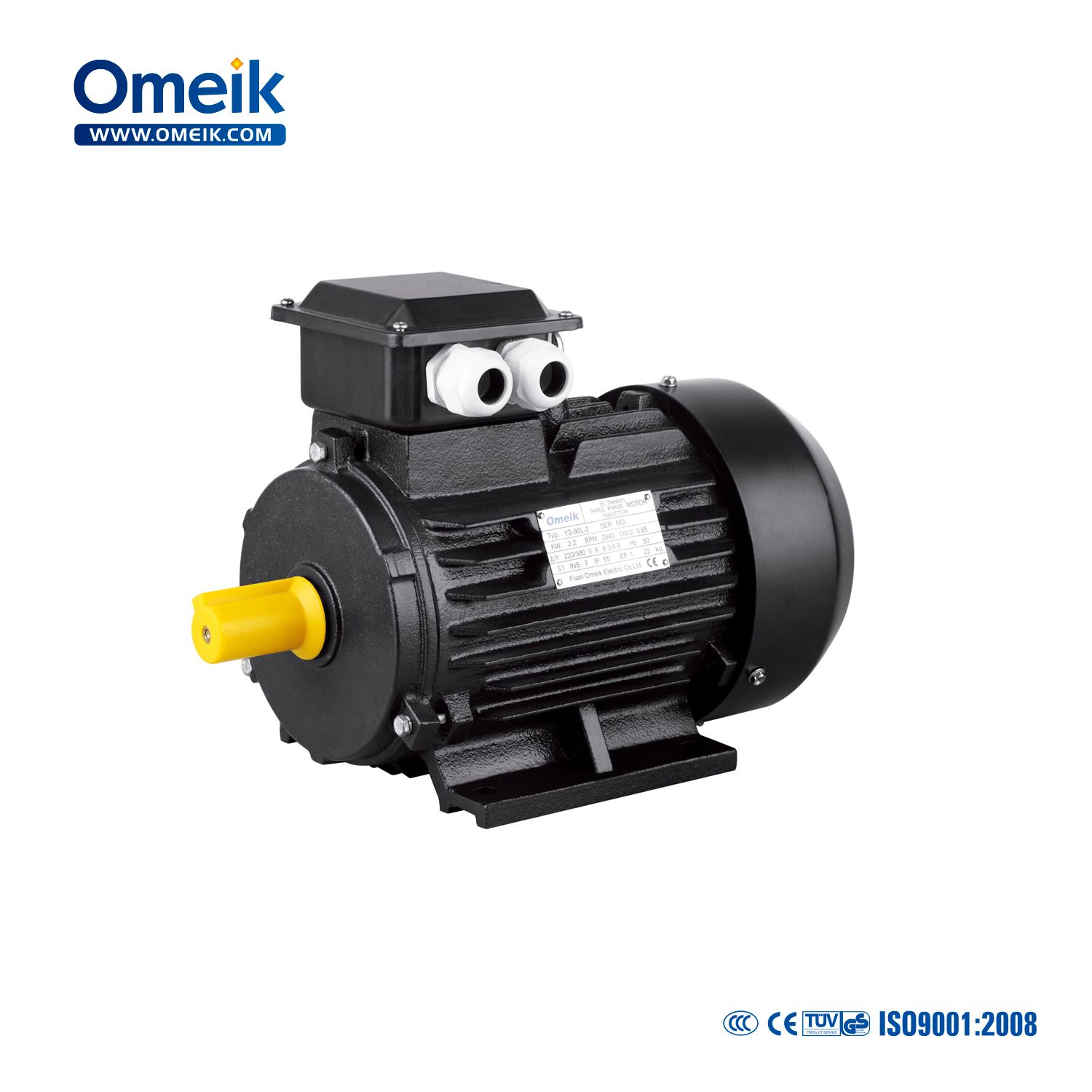

OMEIK Y2 Series 3 phase electric motor

Advantage:
1. Novel design
2. Beautiful modelling
3. Compact structure
4. Low noise, high efficiency
5. Large torque
6. Excellent starting performance
7. Easy serving

Application:
Y2 series 3 phase electric motors are widely used as driving equipments of various machineries such as: Machine tools, blowers, pumps, compressors, transporters, agricultural and food processing.

Operating Conditions:
1. Ambient temperature: -15° C≤ θ ≤ 40° C
2. Altitude: ≤ 1000m
3. Rated voltage: 380V
4. Rated frequency: 50Hz/60Hz
5. Duty: Continuous(S1)
6. Insulation class: Class B/F
7. Protection class: IP55/IP54/IP55
8. Cooling method: IC0141

Note:
If you have any special requirements, please contact us.

Model	Output		Full load				75%load		Tstart/Tn	Ist/In	Tmax/Tn
	kW	HP	Current	Speed	Eff	Power	Eff	Power
	kW	HP	(A)	(r/min)	(%)	Factor	(%)	Factor
380V 50Hz Synchronous Speed 3000 r/min (2 poles)
Y2-631-2	0.18	0.25	0.53	2720	65	0.8	63.1	0.75	2.2	5.5	2.2
Y2-632-2	0.25	0.34	0.69	2720	68	0.81	65.1	0.76	2.2	5.5	2.2
Y2-711-2	0.37	0.5	0.99	2740	70	0.81	69	0.76	2.2	6.1	2.2
Y2-712-2	0.55	0.75	1.4	2740	73	0.82	71.2	0.7	2.2	6.1	2.3
Y2-801-2	0.75	1	1.83	2830	75	0.83	73	0.77	2.2	6.1	2.3
Y2-802-2	1.1	1.5	2.58	2830	77	0.84	75.1	0.78	2.2	7	2.3
Y2-90S-2	1.5	2	3.43	2840	79	0.84	77	0.78	2.2	7	2.3
Y2-90L-2	2.2	3	4.85	2840	81	0.85	80	0.79	2.2	7	2.3
Y2-100L-2	3	4	6.31	2870	83	0.87	82	0.8	2.2	7.5	2.3
Y2-112M-2	4	5.5	7.1	2890	85	0.88	83.9	0.83	2.2	7.5	2.3
Y2-132S1-2	5.5	7.5	11	2900	86	0.88	84.2	0.83	2.2	7.5	2.3
Y2-132S2-2	7.5	10	14.9	2900	87	0.88	85.8	0.84	2.2	7.5	2.3
Y2-160M1-2	11	15	28.8	2930	88	0.89	86.6	0, , , , . 84	2.2	7.5	2.3
Y2-160M2-2	15	20	34.7	2930	89	0.89	87.9	0.84	2.2	7.5	2.3
Y2-160L-2	18.5	25	34.7	2930	90	0.9	89.8	0.86	2.2	7.5	2.3
Y2-180M-2	22	30	41	2940	90	0.9	88.9	0.86	2	7.5	2.3
Y2-200L1-2	30	40	55.5	2950	91.2	0.9	89.4	0.85	2	7.5	2.3
Y2-200L2-2	37	50	67.9	2950	92	0.9	91	0.86	2	7.5	2.3
Y2-225M-2	45	60	82.3	2970	92.3	0.9	90.5	0.85	2	7.5	2.3
Y2-250M-2	55	75	101	2970	92.5	0.9	91.3	0.85	2	7.5	2.3
Y2-280S-2	77	100	134	2970	93	0.9	91.9	0.86	2	7.5	2.3
Y2-280M-2	90	125	160	2970	93.8	0.91	92.6	0.87	2	7.5	2.3
380V 50Hz Synchronous Speed 1500 r/min (4 poles)
Y2-631-4	0.12	0.16	0.42	1310	57	0.72	56.1	0.69	2.1	5.2	2.2
Y2-632-4	0.18	0.25	0.63	1310	60	0.73	58.5	0.7	2.1	5.2	2.2
Y2-711-4	0.25	0.34	0.79	1330	65	0.74	62.4	0.73	2.1	5.2	2.2
Y2-712-4	0.37	0.5	1.12	1330	67	0.75	65.3	0.74	2.1	5.2	2.2
Y2-801-4	0.55	0.75	1.57	1390	71	0.75	69.2	0.74	2.4	5.2	2.3
Y2-802-4	0.75	1	2.03	1390	73	0.76	71.7	0.75	2.3	6	2.3
Y2-90S-4	1.1	1.5	2.89	1400	75	0.77	73.1	0.75	2.3	6	2.3
Y2-90L-4	1.5	2	3.7	1400	78	0.79	76.1	0.76	2.3	6	2.3
Y2-100L1-4	2.2	3	5.16	1430	80	0.81	78	0.79	2.3	7	2.3
Y2-100L2-4	3	4	6.78	1430	82	0.82	79.9	0.78	2.3	7	2.3
Y2-112M-4	4	5.5	8.8	1440	84	0.82	82.9	0.79	2.3	7	2.3
Y2-132S-4	5.5	7.5	11.7	1440	85	0.83	83.8	0.81	2.3	7	2.3
Y2-132M-4	7.5	10	15.6	1440	87	0.84	85.6	0.82	2.3	7	2.3
Y2-160M-4	11	15	22.3	1460	88	0.84	86.8	0.83	2.2	7	2.3
Y2-160L-4	15	20	30.1	1460	89	0.85	88.9	0.83	2.2	7.5	2.3
Y2-180M-4	18.5	25	36.5	1470	90.5	0.86	90	0.82	2.2	7.5	2.3
Y2-180L-4	22	30	43.2	1470	91	0.86	90.2	0.84	2.2	7.5	2.3
Y2-200L-4	30	40	57.6	1470	92	0.86	91.5	0.84	2.2	7.2	2.3
Y2-225S-4	37	50	69.3	1480	92.5	0.87	91.9	0.87	2.2	7.2	2.3
Y2-225M-4	45	60	84.7	1480	92.8	0.87	92.4	0.87	2.2	7.2	2.3
Y2-250M-4	55	75	103	1480	93	0.87	92.7	0.89	2.2	7.2	2.3
Y2-280S-4	75	100	140	1480	93.8	0.87	92.4	0.86	2.2	7.2	2.3
Y2-280M-4	90	125	167	1490	94.2	0.87	93	0.86	2.2	7.2	2.3
380V 50Hz Synchronous Speed 1000 r/min (6 poles)
Y2-711-6	0.18	0.25	0.74	850	56	0.66	53.1	0.66	0.9	4	2
Y2-712-6	0.25	0.34	0.95	850	59	0.68	56	0.68	1.9	4	2
Y2-801-6	0.37	0.5	1.3	890	62	0.7	60.5	0.69	1.9	4.7	2
Y2-802-6	0.55	0.75	1.79	890	65	0.72	63.3	0.72	1.9	4.7	2.1
Y2-90S-6	0.75	1	2.29	910	69	0.72	67.3	0.72	2	5.5	2.1
Y2-90L-6	1.1	1.5	3.18	910	72	0.73	70.2	0.72	2	5.5	2.1
Y2-100L-6	1.5	2	3.94	940	76	0.75	74	0.75	2	5.5	2.1
Y2-112M-6	2.2	3	5.6	940	79	0.76	77.1	0.77	2	6.5	2.1
Y2-132S-6	3	4	7.4	960	81	0.76	78.9	0.77	2.1	6.5	2.1
Y2-132M1-6	4	5.5	9.8	960	82	0.76	80	0.76	2.1	6.5	2.1
Y2-132M2-6	5.5	7.5	12.9	960	84	0.77	82.1	0.77	2.1	6.5	2.1
Y2-160M-6	7.5	10	17	970	86	0.77	83.4	0.77	2	6.5	2.1
Y2-160L-6	11	15	24.2	970	87.5	0.78	86.6	0.78	2	6.5	2.1
Y2-180L-6	15	20	31.6	970	89	0.81	88.1	0.82	2	7	2.1
Y2-200L1-6	18.5	25	38.6	970	90	0.81	89	0.82	2.1	7	2.1
Y2-200L2-6	22	30	44.7	970	90	0.83	89.8	0.83	2.1	7	2.1
Y2-225M-6	30	40	59.3	980	91.5	0.84	89.2	0.84	2	7	2.1
Y2-250M-6	37	50	71	980	92	0.86	90.5	0.86	2.1	7	2.1
Y2-280S-6	45	60	86	980	92.5	0.86	90.8	0.86	2.1	7	2
Y2-280M-6	55	75	105	980	92.8	0.86	90.5	0.86	2.1	7	2
380V 50Hz Synchronous Speed 750 r/min (8 poles)
Y2-801-8	0.18	0.25	0.88	630	51	0.61	46.4	0.52	1.8	4	1.9
Y2-802-8	0.25	0.34	1.15	640	54	0.61	48.5	0.54	1.8	4	1.9
Y2-90S-8	0.37	0.5	1.49	660	62	0.61	57.1	0.57	1.8	4	1.9
Y2-90L-8	0.55	0.75	2.18	660	63	0.61	58.5	0.58	1.8	4	2
Y2-100L1-8	0.75	1	2.53	690	71	0.67	67.2	0.63	1.8	4	2
Y2-100L2-8	1.1	1.5	3.32	690	73	0.69	71.5	0.61	1.8	5	2
Y2-112M-8	1.5	2	4.5	680	75	0.69	73.8	0.64	1.8	5	2
Y2-132S-8	2.2	3	6	710	78	0.71	77.1	0.61	1.8	6	2
Y2-132M-8	3	4	7.9	710	79	0.73	78.5	0.62	1.8	6	2
Y2-160M1-8	4	5.5	10.3	720	81	0.73	79.8	0.63	1.9	6	2
Y2-160M2-8	5.5	7.5	13.6	720	83	0.74	82.2	0.61	2	6	2
Y2-160L-8	7.5	10	17.8	720	85.5	0.75	85	0.63	2	6	2
Y2-180L-8	11	15	25.1	730	87.5	0.76	86.1	0.66	2	6.6	2
Y2-200L-8	15	20	34.1	730	88	0.76	87.2	0.66	2	6.6	2
Y2-225S-8	18.5	25	40.6	730	90	0.76	89.4	0.68	1.9	6.6	2
Y2-225M-8	22	30	47.4	740	90.5	0.78	89.6	0.69	1.9	6.6	2
Y2-250M-8	30	40	64	740	91	0.79	90	0.69	1.9	6.6	2
Y2-280S-8	37	50	78	740	91	0.79	91.2	0.71	1.9	6.6	2
Y2-280M-8	45	60	94	740	92	0.79	91.8	0.75	1.9	6.6	2

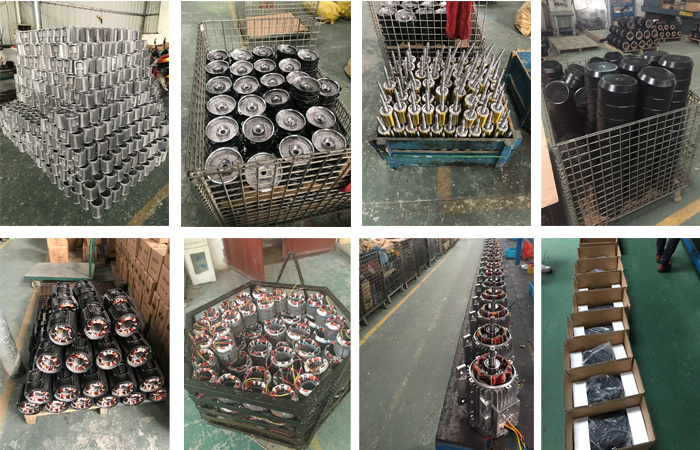

SPARE PARTS:

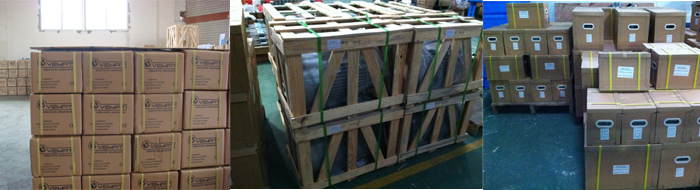

PACKING WAYS

FAQ

Q: Do you offer OEM service?
A: Yes

Q: What is your payment term?

A: 30% T/T in advance, 70% balance when receiving B/L copy. Or irrevocable L/C.

Q: What is your lead time?

A: About 30 days after receiving deposit or original L/C.

Q: What certifiicates do you have?

A: We have CE, ISO. And we can apply

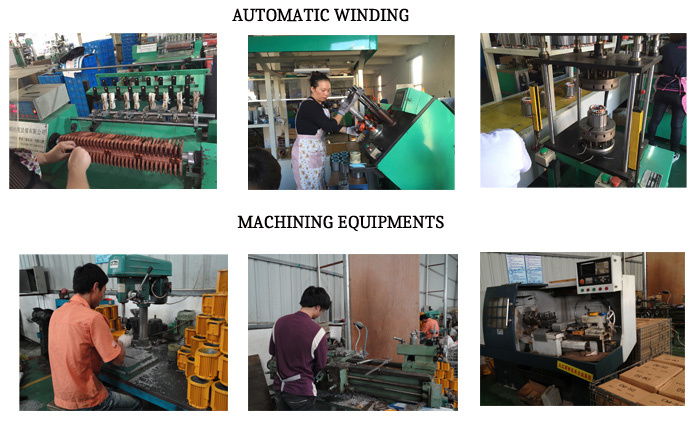

Fuan Omeik Electric Co., Ltd. is a professional manufacturer of water pumps and electric motors, located in Fuan Electrical Machinery and Appliances Zone, Fuan, Fujian, China and established in 1999. It's a fair integrative company with scientific research, production, and sell, which possesses advance producing and testing equipments and strong technology team. The company always strictly follows the ISO9001 quality management system to manage the production which guarantee of good quality.

In order to meet the challenge of the keen market competition, the company has introduced advanced technology and machinery as well as computerized testing equipment to further improving the quality of the products. The company insists on "survives on high quality and honest with business", Basis on this principle our quality products have been exported old over the world, such as South East Asia, Middle East, Australia, Europe and South America etc.

We are longing for hand in hand cooperation with more friends in the whole world, know that quality product and the the after sale services, altogether create happy future, we are warmly welcome your coming and the support.
