on-Line Type and Overcurrent Protection High Frequency Pure Sine Wave 1-10kVA Online UPS
| Price: |
Negotiable/Piece |
| Trade Terms: |
FOB,CFR,CIF |
| Min Order: |
5/Piece |
| Pay Type: |
T/T,Western Union,Money Gram |
| Prod Model: |
EX1-10Kva |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Model: |
on-Line Type High Frequency Pure Sine Wave 1-10kVA |
| Wide AC Input: |
60-138VAC/115-300VAC |
| AC Restart Function: |
Yes |
| Power Factor: |
0.8 |
| Wave Form: |
Pure Sine Wave |
| Communication Interface: |
Smart RS-232, USB Port Option, Dry-Contact, Snmp |
| Networksurge Protection: |
RJ45 I/O Port Available for 10base -T Network |
| Transfer Time: |
0ms |
| Panel Display: |
LED /LCD |
| Warranty: |
2 Years |
| Phase: |
Single Phase |
| Type: |
On-line |
| Protection: |
Unbalanced Loads |
| Brand: |
Zlpower |
Product Description

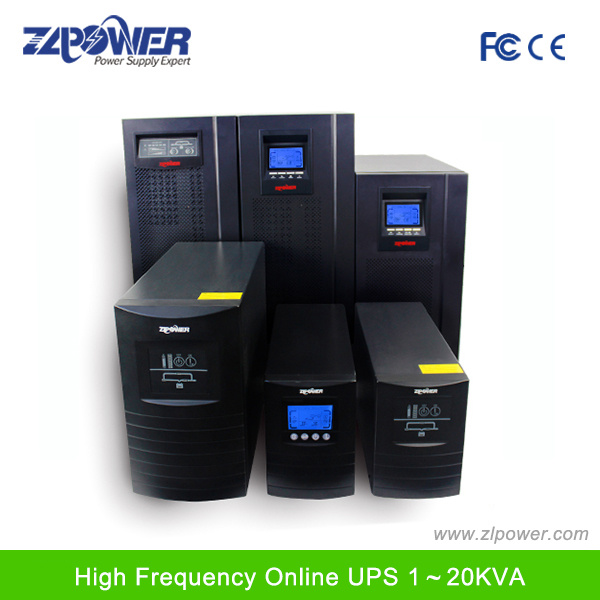

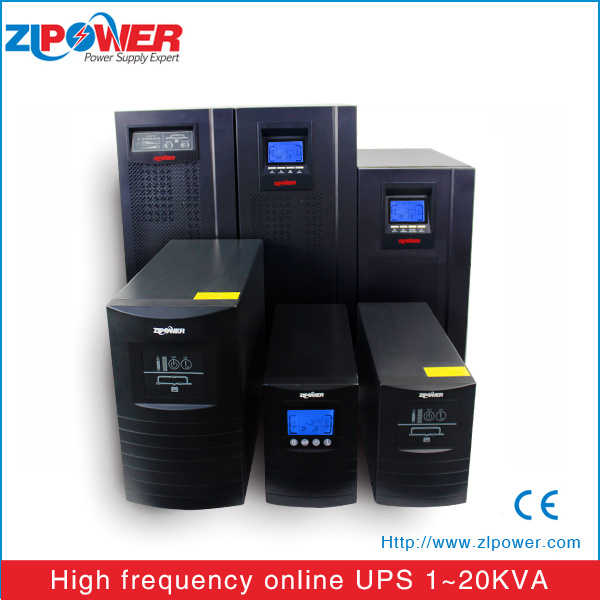

On-line Type and Overcurrent Protection high frequency Pure sine wave 1-10KVA Online UPS
1. High frequency Online UPS
2. Homage UPS,Good for home appliances
3. 0.8 Power Factor
4. Optional RS232 and USB function
5. Optional built in internal batteries
6. AC restart Function
7. Can Start with only battery
8. 0 ms transfer time
9. LCD/LED display
Application
EX series ZLPOWER 1-10KVA Home Inverter UPS Online UPS Homage UPS, 1-10kva high frequency Online UPS is specially designed for servers, data-center critical network devices. sensitive eletronic equipment, telecom, bank, hospital, bureau, traffic,public security, ATM and so on...
Specificaiton
| Online UPS MODEL | EX1K | EX2K | EX3K | EX1KL | EX2KL | EX3KL |
| CAPACITY | VA/W | 1000VA/700W | 2000VA/1400W | 3000VA/2100W | 1000VA/700W | 2000VA/1400W | 3000VA/2100W |
| INPUT | Nominal Voltage | 110/115/120VAC or 220/230/240VAC |
| Voltage Range | 60~138VAC or 115~300VAC |
| Frequency Range | 50Hz: 46~54Hz; 60Hz: 56~64Hz |
| Phase | Single phase with Ground |
| Power Factor | >=0.97 |
| OUTPUT | Voltage | 110/115/120*(1±2%)VAC or 220/230/240*(1±2%)VAC |
| Frequency | 50/60Hz(Adjustable)
50Hz AC Mode: Follow AC Mode (AC Range 46~54Hz); Battery Mode: 50Hz(1±0.2%)
60Hz AC Mode: Follow AC Mode (AC Range56~64Hz); Battery Mode: 60Hz(1±0.2%) |
| Wave Form | Pure Sine Wave |
| Power Factor | 0.7 |
| Harmonic Distortion | <3% THD (Linear Load), <7% THD (Non-Linear Load) |
| Overload Capacity | 110%~150% maintain 30s then turn to bypass output, over 150% maintain 200ms |
| Current Crest Ratio | 3:1 |
| Connections | IEC320*4 | IEC320*6 | IEC320*3 & Terminal block | IEC320*4 | IEC320*6 | IEC320*3 & Terminal block |
| Efficiency | To AC Mode | 85% |
| To Battery Mode | 83% |
| Battery | Type | Sealed free maintenance lead acid battery |
| Nominal DC voltage | Built in batteries 12v7.2ah | 36VDC | 96VDC | 96VDC |
| Quantity | 3pcs | 8pcs | 8pcs | Depends on requested back-up time |
| Back-up Time (Full load) | >=7 minutes | >=8 minutes | >=6 minutes | Depends on the capacity of external battery bank |
| Recharge Time | 5hours to 90% of capacity full discharge | Depends on the capacity of external battery bank |
| Charge current(MAX) | 1.0A | 1.0A | 1.0A | 7A | 8A | 8A |
| Charge voltage | 41.1Vdc ± 0.6V | 110Vdc ± 0.4V | 41.1Vdc ± 0.6V | 110Vdc ± 0.4V |
| Bypass | Automatic Transfer | On overload and UPS failure |
| Before UPS Power-on | Default "NO" user adjustable to "YES" |
| Transfer Time | | 0ms, less than 4ms from inverter to bypass and vice versa |
| Indicators | LCD Display | UPS status, I/P & O/P voltage& frequency, Battery voltage, Battery capacity, Loading, Fault code |
| Audible Alarm | | Bypass, On battery mode, Battery low, Overload, Fault |
| Acoustic noise | At 1 meter distance | <45dB | <50dB | <50dB | <45dB | <50dB | <50dB |
| Communications | Intelligent RS232 serial port | Software support Windows family software, Linux, Sun network operating system, IBM Aix, Compaq True64, SGI IRIX, FreeBSD, HP-UX and MAC |
| SNMP (Optional) | Remote control UPS through SNMP management and Internet |
| USB (Optional) | Windows family software and Mac OS |
| Network Surge Protection | | RJ45 I/O port available for network or FAX/Telephone line/Modem |
| Environmental | Operating Temperature | 0~40 ºC |
| Operating Humidity | 20~90% ( Non Condensing) |
| Weight | Net weight (kg) | 14 | 31.5 | 32 | 7 | 13.5 | 14 |
| UPS Dimension | L*W*H (mm) | 400*145*220 | 460*192*348 | 460*192*348 | 400*145*220 | 460*192*348 | 460*192*348 |
| Parameters Model | HD Plus1K-12 | HD Plus2K-24 |
AC
Input | Nominal Power | 1KVA/720W | 2KVA/1300W |
| Input Voltage Waveform | Nominal input Voltage |
| Nominal input Voltage | 230VAC |
| Selectable Voltage Range | 165-270Vac±4%(Narrow Range) &; 85-270Vac±4%(Wide Range) |
| Max AC input Voltage | Max:270VAC |
| Frequency | 50Hz:or 60Hz |
AC
output | Output Voltage Waveform | Modified sine wave |
| Voltage Regulation &; (Batt.Mode) | 230VAC (+10% / -18%) |
Nominal Output
Frequency (Hz) | 50Hz or 60Hz (Auto detection) |
| Transfer Time | 15ms Typical, 40ms Max. |
Solar
charger | Charger mode | PWM |
| Maximun PV Array Power | 450W | 900W |
| Optimal Work Voltage Rang | 15VDC-18VDC | 30VDC - 36VDC |
| MAX. PV input Voltage | 55VDC |
| MAX. PV input Current | 40Amp |
AC
Charger | Charging Algorithma | 3-step charging |
| Nominal Charger Current | 15 Amp or 20Amp Selectable | 10Amp |
| Floating Charging Voltage | 13.7VDC | 27.4VDC |
| Over charge Protection | 16VDC | 32VDC |
Efficiency | Efficiency (Battery Mode) | >80% |
| Efficiency &n(Line Mode) | >95% |
Battery
Voltage | Nominal DC input Voltage | 12VDC | 24VDC |
| Low Battery Alarm | 10.5VDC±0.3VDC | 21VDC±0.6VDC |
| Low DC input shut-down | 10VDC±0.3VDC | 20VDC±0.6VDC |
High DC input
Alarm & Fault | 16VDC±0.3VDC | 32VDC±0.6VDC |
System
Parameter | Protections | Low battery, over charging, over load, over temp |
| Indicators | LCD+LED Display |
| Over-Load Protection | 1min Load >110%,20s Load >120%,0s Load >150% |
General
Specifications
| Operating Temperature
Range | 0ºC to 40ºC |
| Storage Temperature | -15ºC~55ºC |
| cooling | Forced air,variable speed fan |
| Dimension(L*W*H) | 276.7*245*97mm |
| Net Weight(kg) | 2.6kg | 2.7kg |

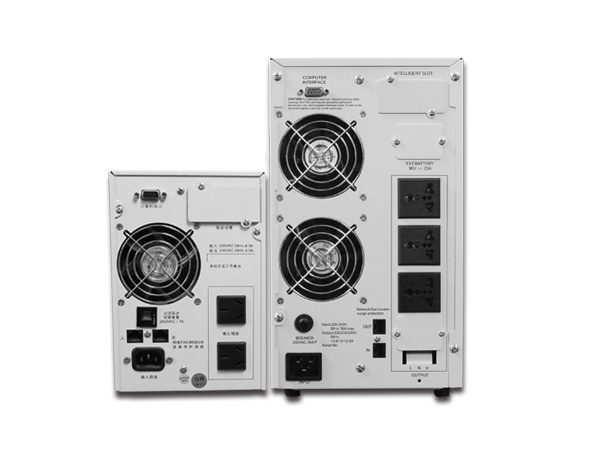

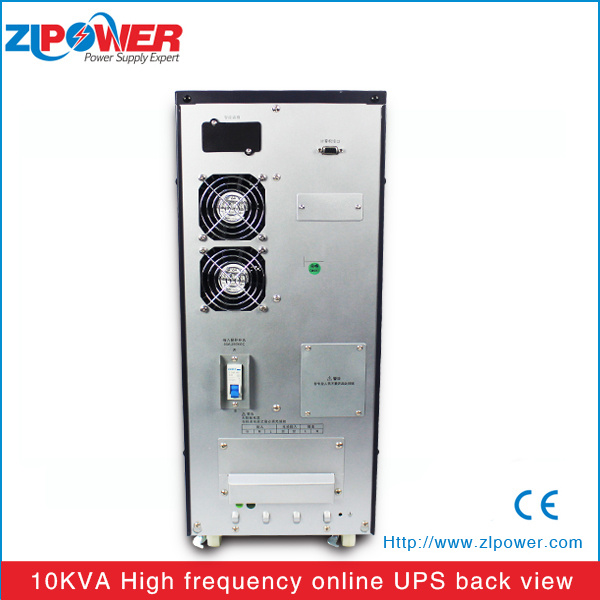

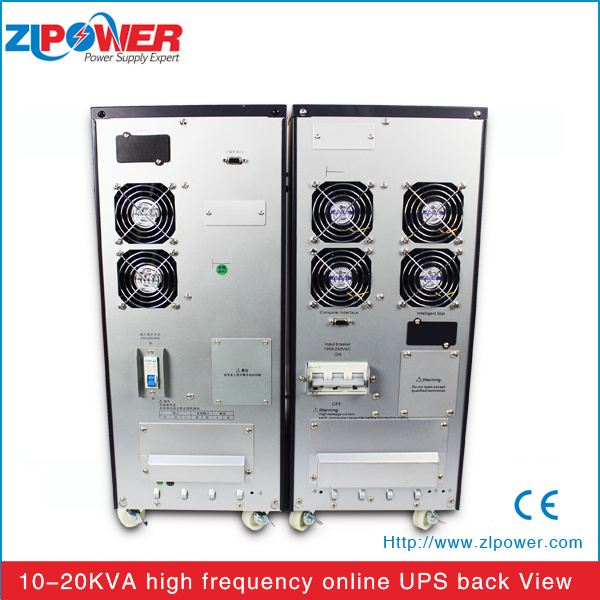

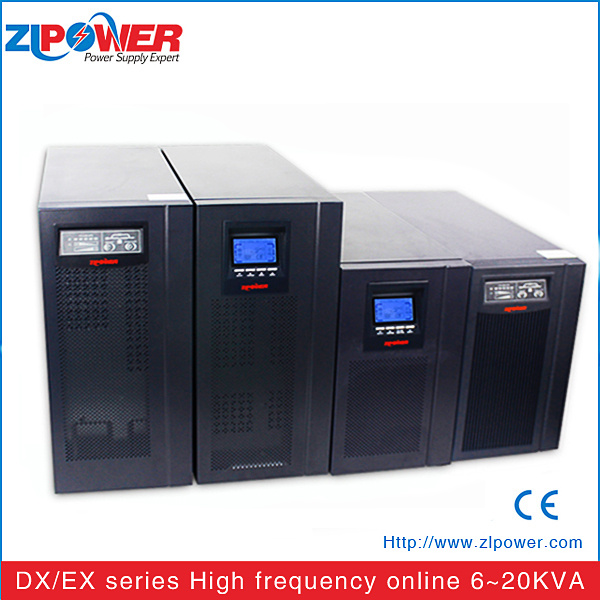

Photos
Why Choose Us1, the company professional to do UPS, Inverter and Battery products
2, the quality of ZLPOWER Products are in the top level
3, stable product quality , supply, the good faith management
About ZLPOWER
Founded in 2007, Shenzhen ZLPOWER Electronics Co., Ltd. (ZLPOWER for short) is a key hi-tech enterprise in state "Torch Plan, " integrating science, industry, trade, and investment into a whole. It has registered capital of RMB 10million, covering a floor area of 2000sq. M, and owning assets of RMB 30 million.
As a large-scale enterprise group with total assets exceeding RMB 30 million, it currently employs more than 300 staff, operates R & D institutions, 10 products lines, and 8 overseas branches and offices for sales and service.
Also as a professional uninterruptible power supply manufacturer in Shenzhen, China, ZLPOWER mainly produce high frequency online UPS, computer PC UPS, rack mount online UPS, low frequency Industry three phase UPS, UPS Inverter, solar inverter, solar charger controller, Solar/UPS Battery and other related products.
In ZLPOWER, we are strictly on quality inspections. We implement strict IOC, IPQC, FQC, OQC, QA, and other quality control measures in every process according to ISO9001, including to raw materials selection, production, package, and shipment.
Thus, we are ISO9001: 2008 and SGS certificated, and all our UPS, Inverter power supply products have been approved by CE (LVD/EMC), UL tests. As a result, they are popular among our customers from Italy, Germany, South Africa, Egypt, Mozambique, Nigeria, UAE, Ukraine, Russia, Uzbekistan, Philippines, Chili, Peru, Brazil, Mexico and more.
ZLPOWER is looking for agent worldwide to distribute our quality UPS system, Inverter power and solar products to their local markets. Any interests please welcome to contact us today and look for best power solution.
