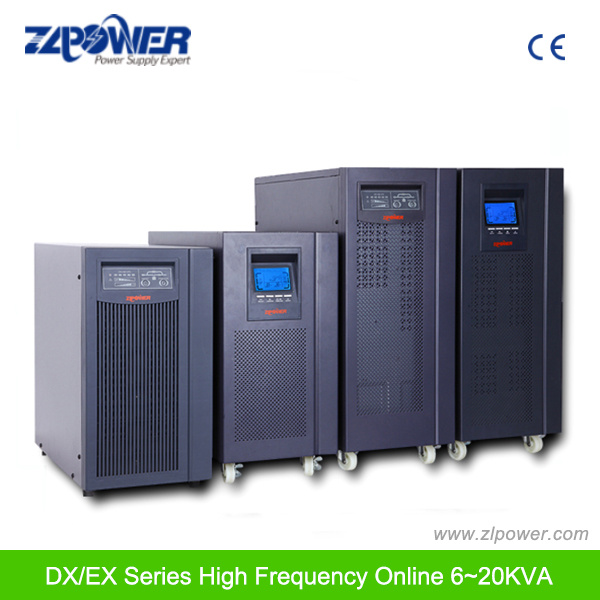

On Line UPS 6kVA4800W

Prod Model:	DX6K~DX3120KL
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Freuquency:	High Frequency
AC Voltage:	220V/380V
DC Coltage:	192VDC
Frequency:	50Hz/60Hz
Output Power Factor:	0.8
Connection:	Terminal Block
Battery Mode Efficiency:	87%
AC Mode Efficiency:	88%
Transfer Time:	Zero
Communication Software:	RS232
Phase:	Single Phase
Type:	On-line
Protection:	Short Circuit
Brand:	Zlpower

Product Description

On line UPS 6kVA4800W

The Online DX Series is an uninterruptible power supply incorporating double-conversion technology. It provides perfect protection specifically for computer equipment, communication systems to computerized instrument-
S.
Its true online double-conversion design eliminates all mains power distur-
Bances. A rectifier converts the alternating current from the utility power to direct current. This direct current charges the batteries and powers the inverter. On the basis of this DC voltage, the inverter generates a pure sinusoidal AC voltage, which is constantly powering the loads.
Computers and Peripherals are thus powered entirely by the UPS. In the event of power failure, the maintenance-free batteries power the inverter.

This manual is applicable to the following models:
DX6K: Standard model with built-in batteries.
DX6KL: Long backup time model, it is able to connect with the external battery bank.
DX10K: Standard model with built-in batteries.
DX10KL: Long backup time model, it is able to connect with the external battery bank.
DX3110KL: Three-phase input and single-phase output, long backup time models, it is able to connect with the external battery bank.
DX3115KL: Three-phase input and single-phase output, long backup time models, it is able to connect with the external battery bank.
DX3120KL: Three-phase input and single-phase output, long backup time models, it is able to connect with the external battery bank.

Above all models contain standard rev and professional rev, User can select corresponding model by its requirement, compared with standard rev, professional rev (Model number with"P") has EPO switch and bypass maintenance switch built-in, about the function of EPO and bypass maintenance switch please refer to 2.8 and 2.9.

Model	DX6K	DX6KL	DX10K		DX10KL		DX3110KL	DX3115KL	DX3120KL
Dimension(W× D× H)	248× 500 × 616	240× 500 × 460	248× 500× 616		240× 500× 460		248× 500× 616
Net Weight(kg)	57	18	67.5		20		27	35	35
Power
Apparent Power /Active Power	6KVA/ 4.8KW	6KVA/ 4.8KW	10KVA /8KW		10KVA /8KW		10KVA /8KW	15KVA /12KW	20KVA /16KW
Mains
VoltageRange	120VAC--275VAC						210~475VAC
Current*	33Amax	37Amax	55Amax		59Amax			86Amax	112Amax
Frequency Range	46Hz--54Hz
Power Factor	0.99						0.95
Output
Voltage	220VAC× (1± 1%)
Current	27A		45A					68A	91A
Frequency	46Hz--54Hz(Line Mode, Same as input frequency), 50Hz× (1± 0.1%)(Battery Mode)
Power Factor	0.8
Overload Capability	105%--125%, 1 minutes minimum, then transfer to bypass and alarm, Bypass over load > 30 minutes then turn off output. 125%--135%, 30 seconds minimum, then transfer to bypass and alarm, Bypass over load > 1 minutes then turn off output; > 135%, 0.5 seconds minimum, then transfer to bypass and alarm.
Crest Factor	3: 1
THD	THD< 2% ( Linear Load)
Battery (High ambient temperature shortens the battery' s lifetimes)
Backup Time	4minutes (Full Load)	Depend on the capacity of external battery		3minutes (Full Load)		Depend on the capacity of external battery
Recover Time	< 7 Hours Comeback to 90%	Depend on the capacity of external battery		< 7 Hours Comeback to 90%		Depend on the capacity of external battery

* The maximum input current is got at input 187V, full load and full charge current.



Model	DX6K	DX6KL	DX10K	DX10KL	DX3110KL	DX3115KL	DX3120KL
EMC
ESD	IEC61000-4-2 Level 4
RS	IEC61000-4-3 Level 3
EFT	IEC61000-4-4 Level 4
Surge	IEC61000-4-5 Level 4
Operating Temperature	0º C--40º C
Storage Temperature	-25º C--55º C
Humidity	20%--90%
Altitude	< 1000m

High altitude area load=rated power × derating coefficient (corresponding to altitude)

Altitude(m)	1000	1500	2000	2500	3000	3500	4000	4500	5000
Derating coefficient	100%	95%	91%	86%	82%	78%	74%	70%	67%
