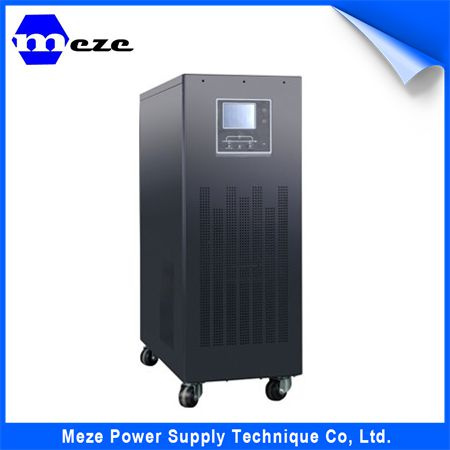

on Line UPS Power Frequency System DC Online UPS
| Price: |
US $ 2800-3900/Piece |
| Trade Terms: |
FOB,CFR,CIF |
| Min Order: |
1/Piece |
| Pay Type: |
L/C,T/T,Western Union,Paypal |
| Prod Model: |
MZT200 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Input Voltage: |
380V |
| Output Voltage: |
220V |
| Color: |
Back |
| Power Factor: |
0.8 |
| Phase: |
Three Phase |
| Type: |
On-line |
| Protection: |
Overvoltage, Short Circuit, Overcurrent |
| Application: |
School, Hospital, Factory, Bank |
| Classification: |
Uninterruptible Power Supply |
| Brand: |
Meze |
Product Description
On line ups power frequency system dc online ups
| Model | MZT2010 | MZT2015 | MZT2020 | MZT2025 | MZT2030 | MZT2040 | MZT2050 | MZT2060 | MZT2080 |
| capacity | 10KVA | 15KVA | 20KVA | 25KVA | 30KVA | 40KVA | 50KVA | 60KVA | 80KVA |
| imput | Voltage | 304-456VAC |
| frequency | 50(60)HZ±5% |
| Frequency tracking rate | 1HZ/S |
| power factor | >0.97 |
| current | 16A | 24A | 32A | 40A | 56A | 64A | 80A | 105A | 128A |
| output | Voltage | 220VAC±1%or230VAC±1% |
| frequency | 50HZ/60HZ±5% |
| frequency factor | 0.8 |
| waveform distortion | Linear load≤0%,nonlinear load |
| overload capacity | overload110-150%To bypass the power supply lasts for 5 minutes |
| peak factor | 3:1(max) |
| transfer time | Oms |
| battery | Voltage | 360V | 384V |
| charging time | 8-10hours |
| overall efficiency | >92% | 93% |
| protective function | Electronic short circuit protection;Current limiting protection for 1-3 times the rated current |
| panel | LED | Battery low boltage,inverter,bypass,abnormal condition,overload indicator |
| LCD | BIOS interface,frequency,battery voltage,load percentage,temperature in driers |
| Communication interface | RS232&SNMP |
| environment | temperature | 0~40ºC |
| humidity | 0-95% |
| Storage temperature | 025ºC-55ºC |
| Service altitude | <1500 |
| noise | | | 55~68 |
| physical characteristics | Weight(kg) | 155 | 240 | 297 | 326 | 336 | 352 | 355 | 415 | 468 |
| Dimenson(mm) | 720*450*1130 | 855*450*1230 | 1000*660*1460 |
| executive standard | UD/T 1095-2000 |
MZT200 series product introductionMZT200 series are 220 v, of 380 v / 220 v UPS;Is designed for data center, the network computer room, intelligent precision equipment designed for high-performance sinusoidal uninterruptible power supply, its high reliability for the financial, telecommunications, insurance, transport, taxation, military, securi ty, energy, education, government, manufacturing, business and other industries has provided
important power protection.Single into single out technical features
High reliability design and ensure the stable operation of the network system
Based on the advanced microprocessor (MCU) control technology, guarantee the availability
and reliability of system;
Pure on-line double transform topology architecture design, provide the best power supply
quality.
Using pulse width modulation SPWM, IGBT power module and output isolation transformer,
ensure the UPS output from the power grid volatility and the interference of noise;
using the advanced phase-locked synchronization technology and electronic static bypass
switch, output zero switching time, meet the requi rements of high standard of precision
equipment for power supply, ensure the continuity of load power supply;
Goodwill of the man-machine interface and network management function, make the
man-machine communication zero distance
Have a variety of sound-light alarm function, clear and concise;
LCD liquid crystal display interface, provide UPS accurate operation parameters and working
conditions;
Through RS232 interface, cooperate with UPS intelligent monitoring software, can be instant
communication with PC, all kinds of parameters and working state of the UPS system clearly
displayed on the PC communication interfa ce, by setting, the computer can directly control
of UPS systems for a variety of functions;
With RS485 interface, dry DB9 node interface, can be optional functions such as external
SNMP adapter;Three-input single-output Product features Load protection ability:
Machine within the standard output isolation transformer, strong anti-interference ability,
for the user to provide more comprehensive and perfect protection equipment.Very small zero
voltage difference, meet the demand of precision instruments and equipment of the power supply,
to protect the safe operation of the equipment.Load good compatibility, can adapt to a variety of
different load and meet the needs of various applications.
Strong adaptability to the environment
Wide range of input voltage of 304v ~ 456v, avoid frequent switch to the battery power supply,
suitable for electric power conditions,UPS input frequency range is very wide,To ensure access
to a variety of fuel generator can be stable work.
High Battery optimize performance :
Adopting intelligent battery management technology, so as to prolong the service life of
batteries, reduce the battery maintenance times.Advanced constant-voltage charging technology,
maximum activate cells, save the charging time, extend the service life of the battery.Charging
current can be independent m anagement according to the concrete situation,
Network management:
LCD display panel, accurately show the UPS working environment and working condition
information, convenient for the user to the operation of the UPS. Through RS232 interface with
UPS intelligent monitoring software can communicate with computer, The various parameters of
UPS clearly displayed in the communication interface. External SNMP adapter, UPS has remote
network management function, provides the data and current supply to UPS for the real-time
information, communication and management through a variety of network operating system.
Energy saving and environmental protection design
Can be disassembled type modular design, easy to maintain and highly save resources;
Adopting intelligent fan speed regulation is designed, according to the load of UPS power
components, environment temperature and actual temperature, intelligent on/off and speed of
the fan control, cooling performance, high energy saving at the same time, extend the service life
of fan; Adopting circulation control circuit design,good power saving performance ;Adopt green
rectifier and inverter technology, to provide users with clean energy.
Welcome your enquiry
Contact me :
Ellen Wu
Meze company was founded in 1999, so far, has developed into a comprehensive power supply enterprise, products include: UPS uninterruptible power supply, microcomputer non-contact electronic AC regulated power supply, EPS emergency power supply, etc. Main range: The financial, government, research institutes, transportation, aerospace, electronics, medical, services, etc. To meet the global electronic and communication industry for power equipment is increasingly vigorous market demand, Due to the need of development, shenzhen Meze power technology Co., Ltd was established in 2008 (Specialize in UPS power frequency, regulated power supply, and transformer) In the same year registered Meze electronics Co., Ltd. (Terminal blocks, all accessories of PCB), In 2011, registered shenzhen Meze mechanical and electrical Co., Ltd. ( SMT placement machine and accessories ).
Existing number of employees: 180-180 employees, Using area: 3000 square meters, Company has the high technology and rich experience, Products from well-known international brands of Europe, is committed to providing customers with the full range of high quality high performance high stable power supply protection. Using the international advanced intelligent digital UPS power supply technology, and the most advanced precision purification. Provide the most advanced, cutting-edge, the most reliable, the top power solutions.
